Lot description

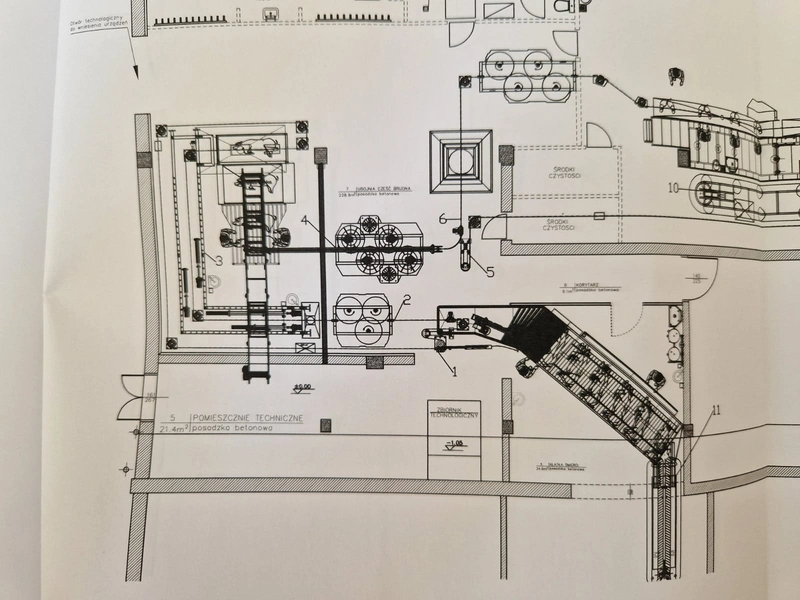

GMN Techmet pig slaughtering line, capacity: 80 pigs per hour, year of construction: 2009 / 2010, consisting of:
DIRT LINE:

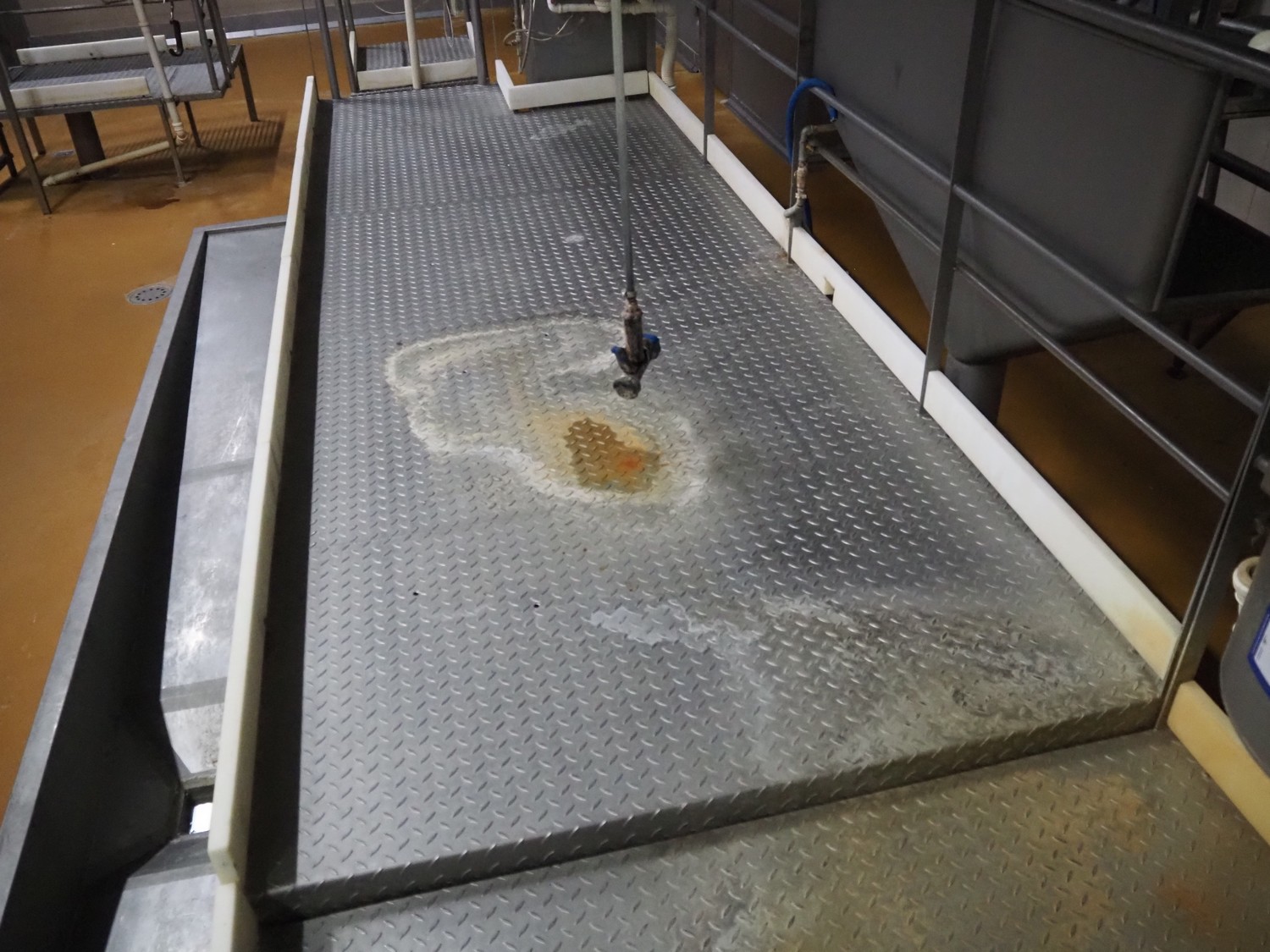

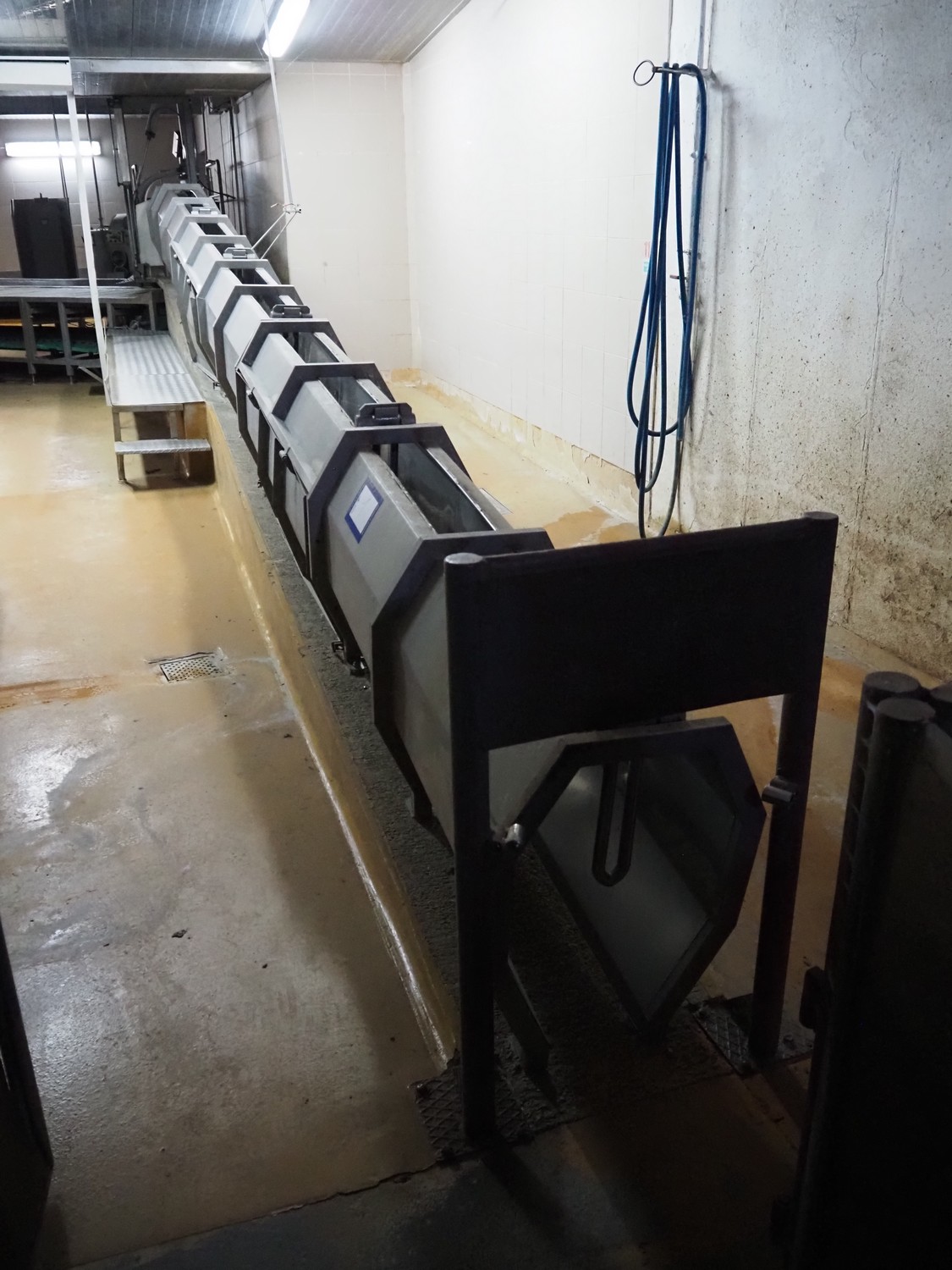

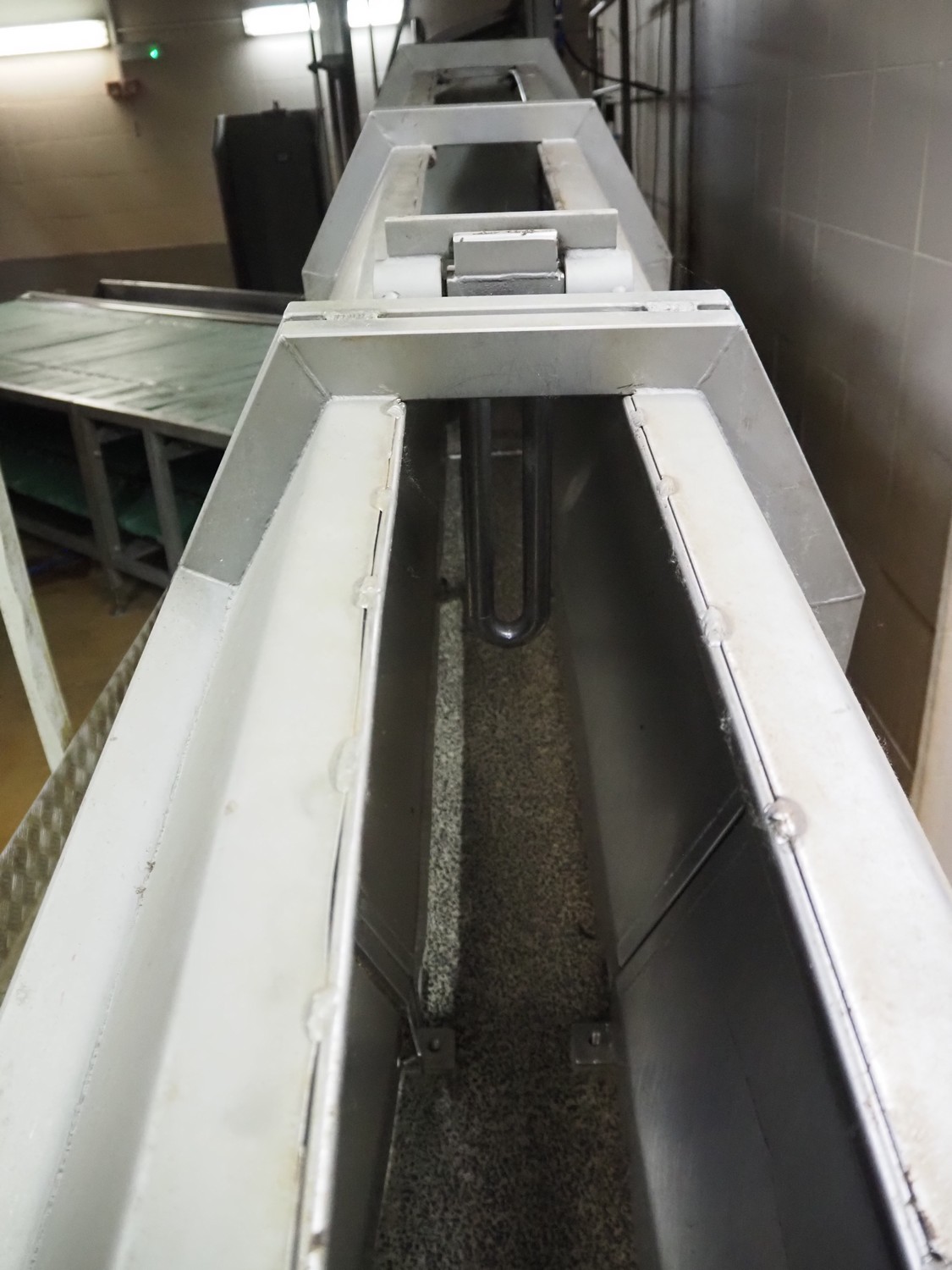

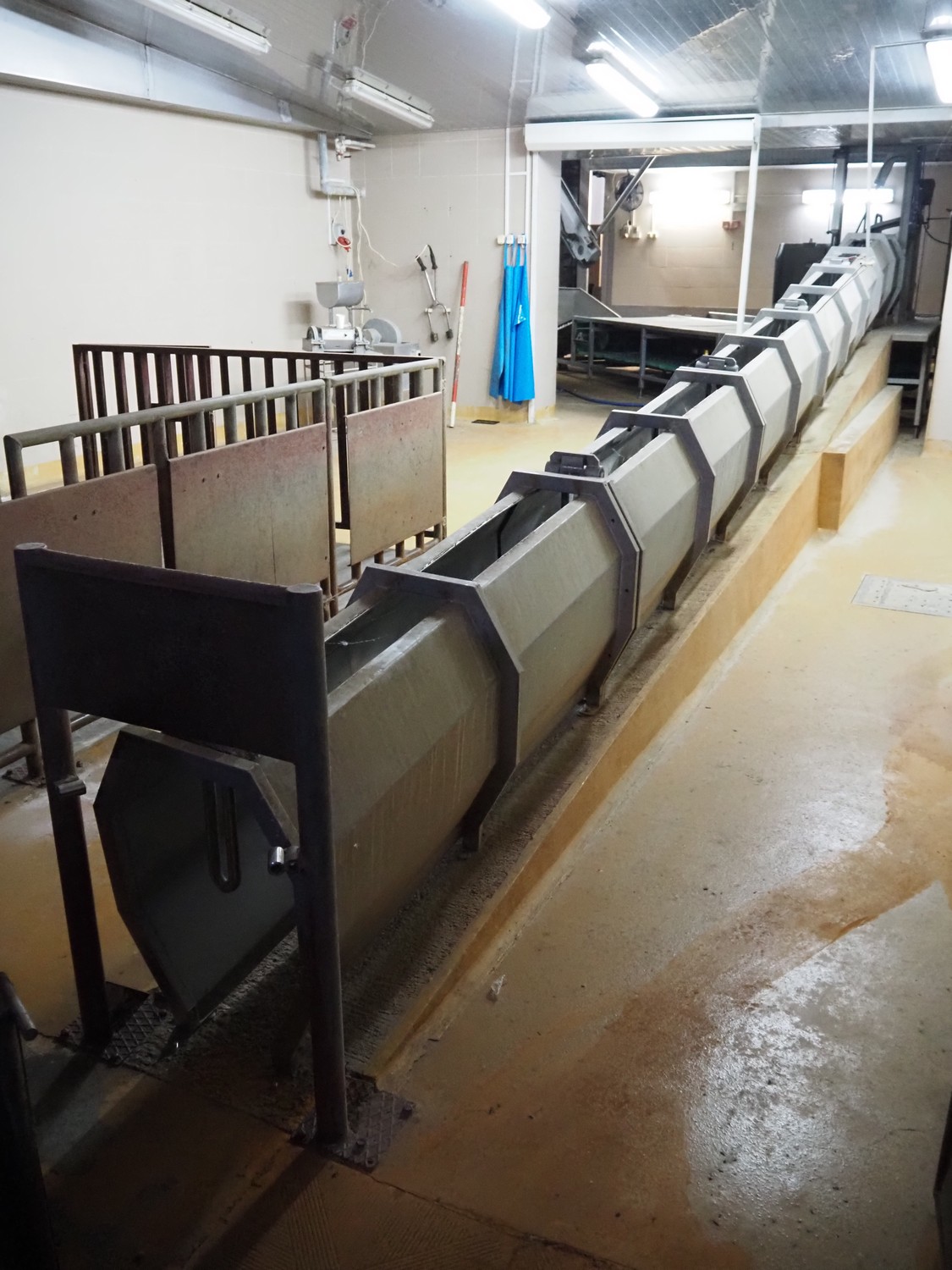

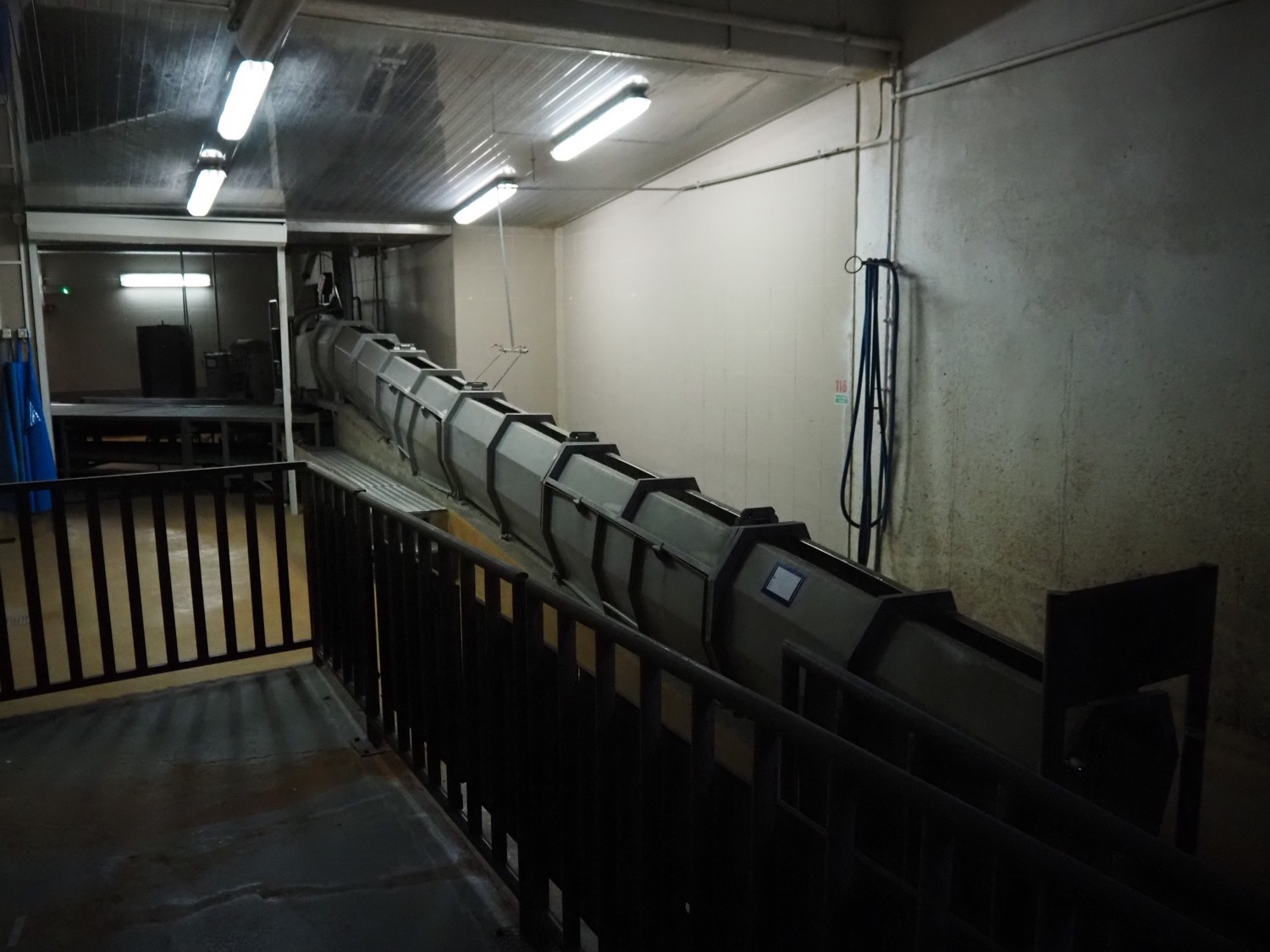

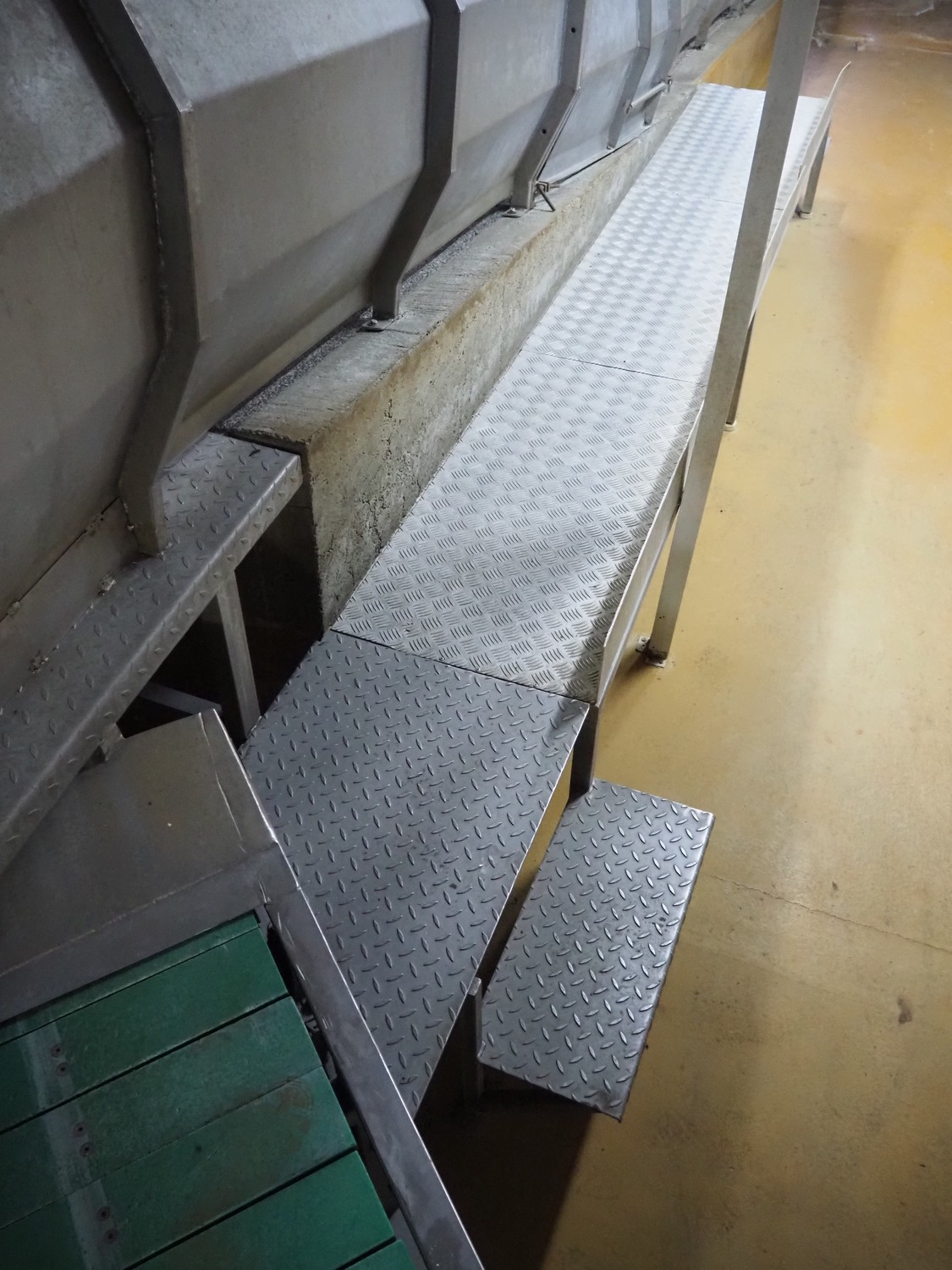

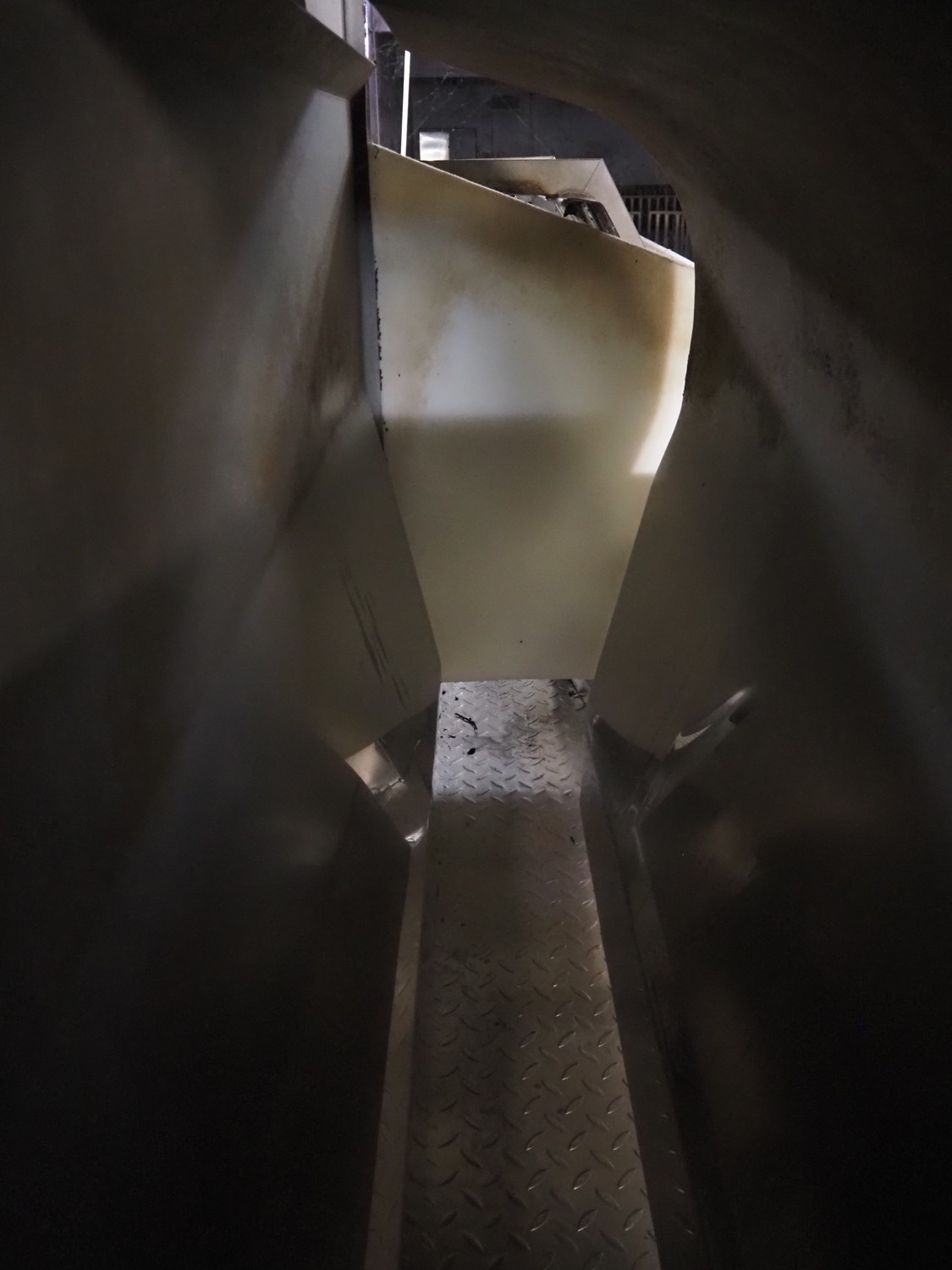

- S/s drive corridor with platform, dimensions corridor: 10200 mm x 600 mm x 900 mm, dimensions platform: 5000 mm x 800 mm x 680 mm.

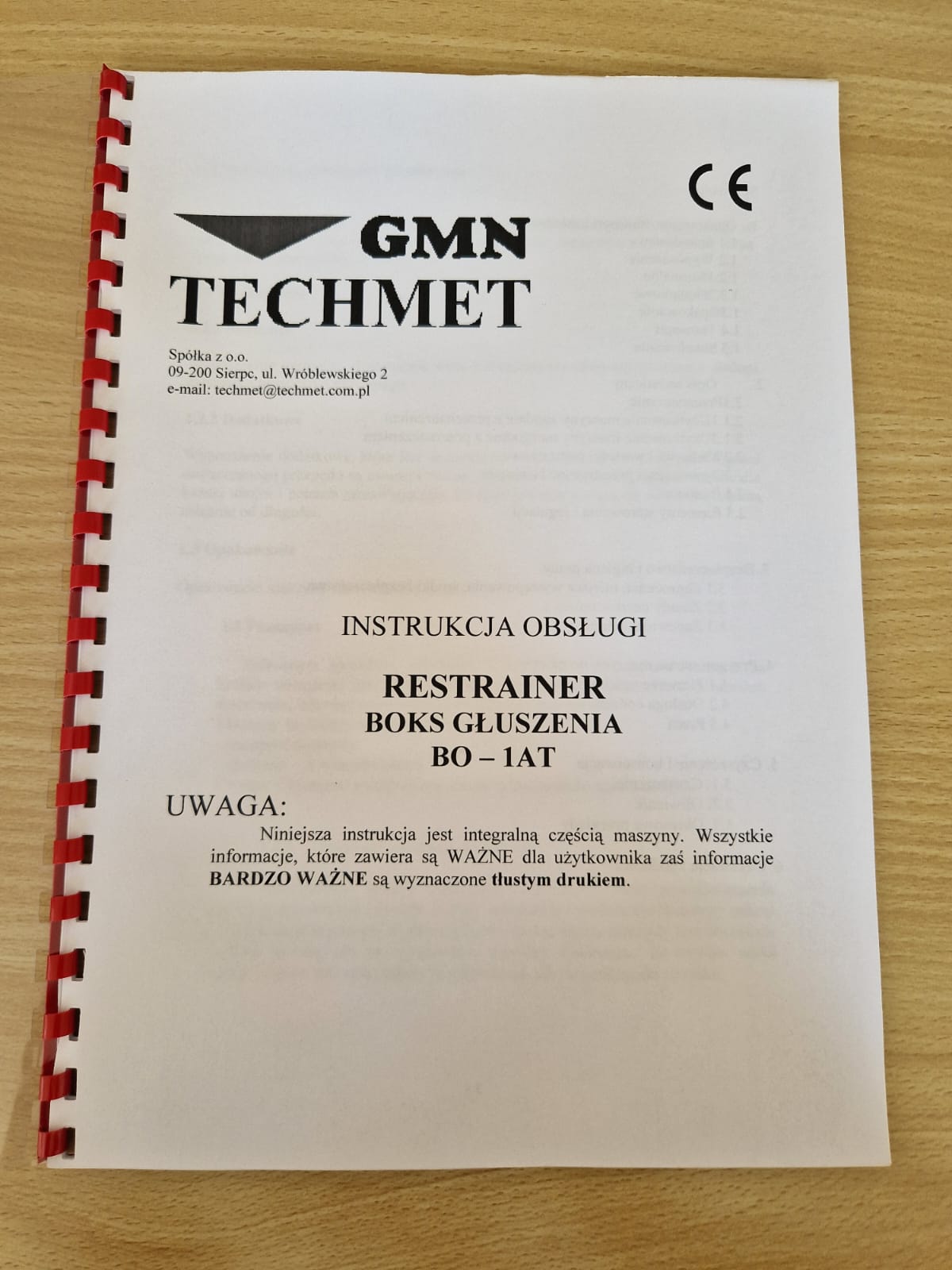

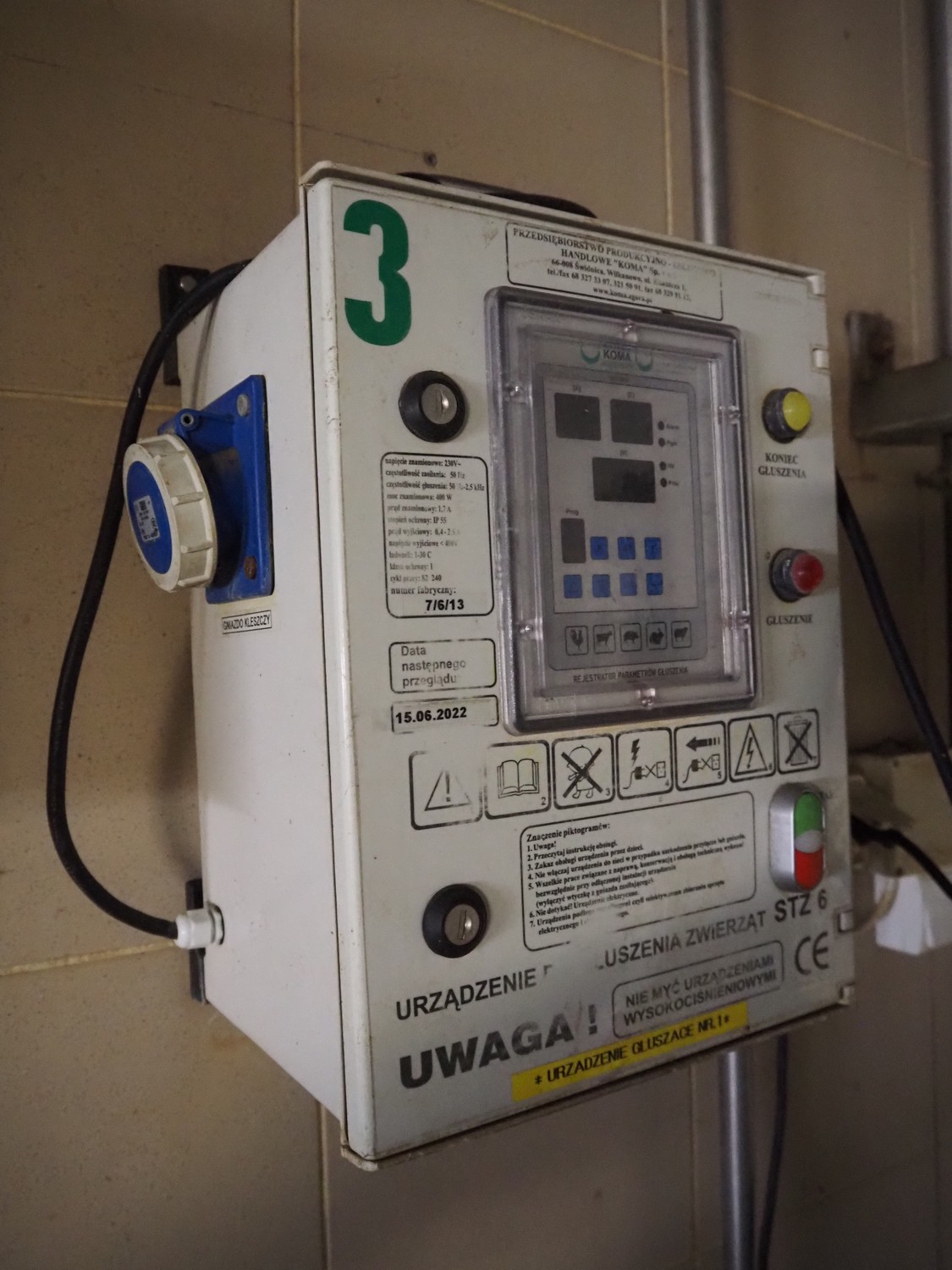

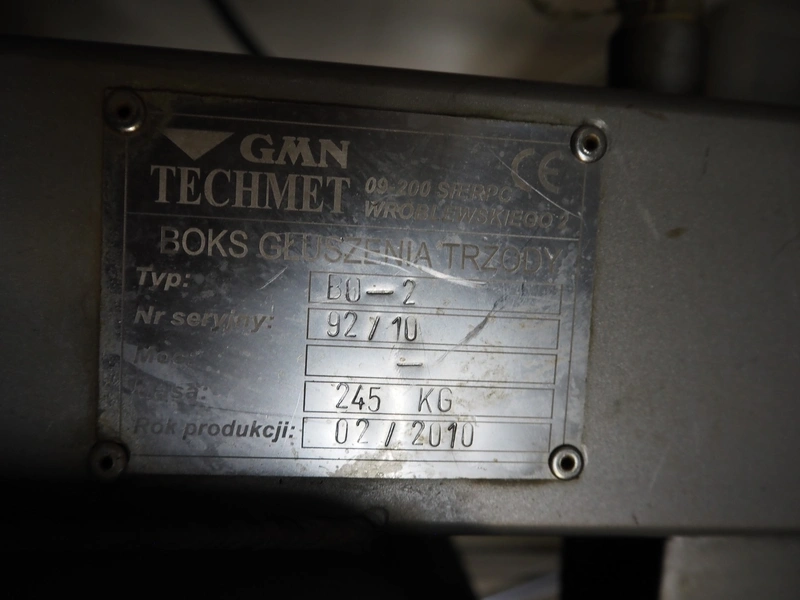

- S/s pneumatic stunning box with platform, type: BO-2, number: 92/10, year of construction: 02/2010, weight: 245 kg, dimensions box: 1560 mm x 730 mm x 2360 mm, dimensions platform: 3600 mm x 1300 mm x 3050 mm.

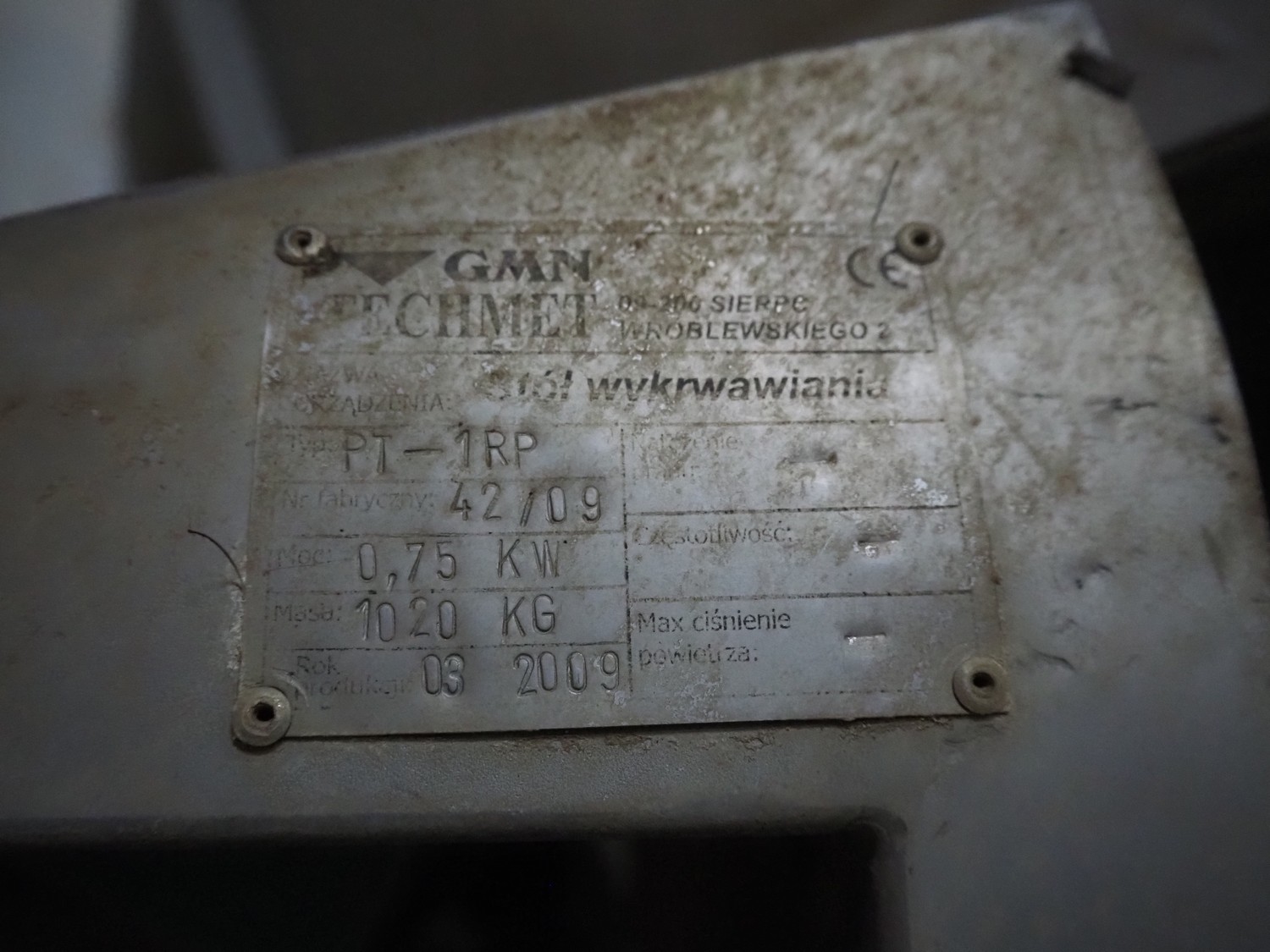

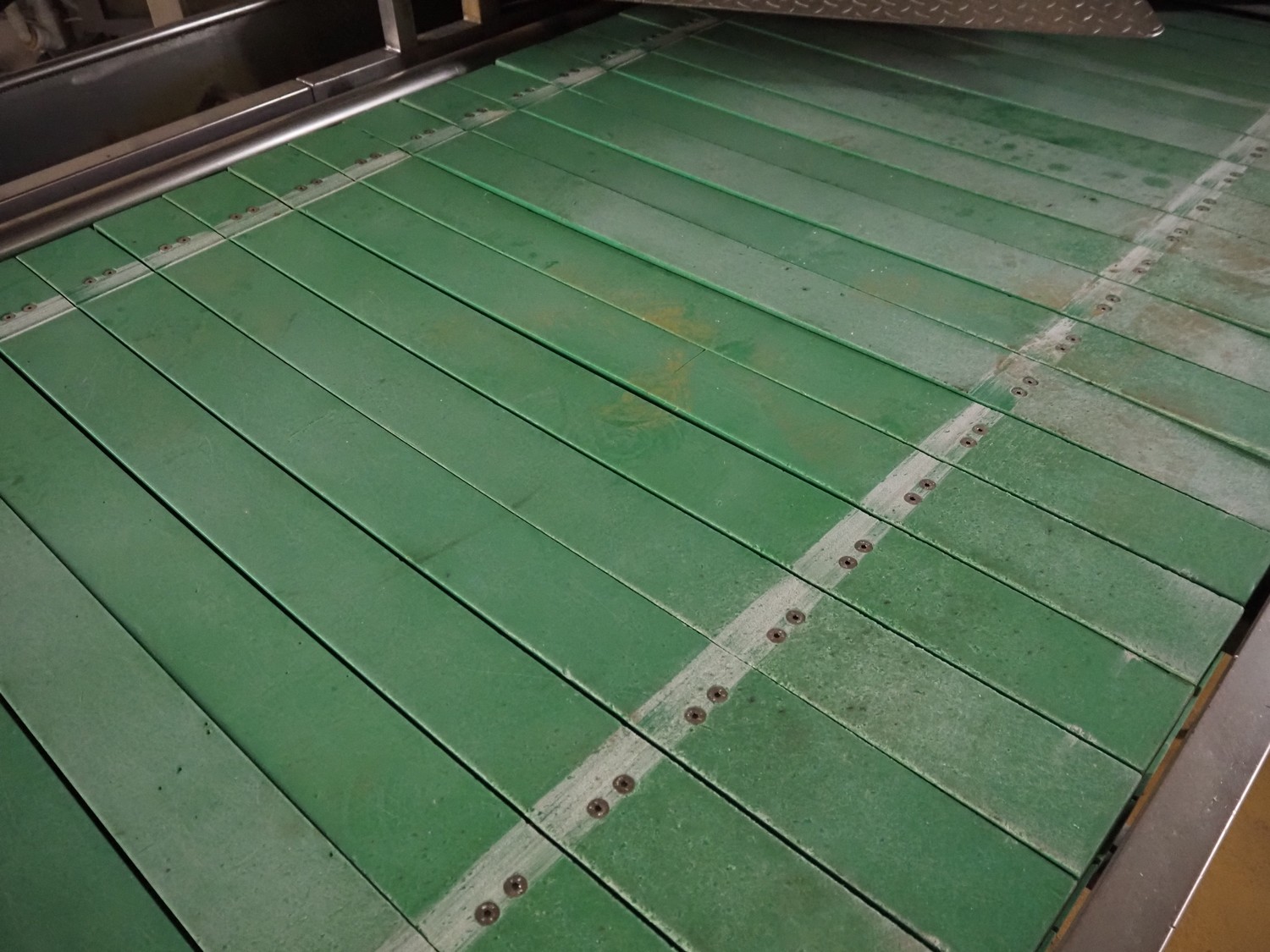

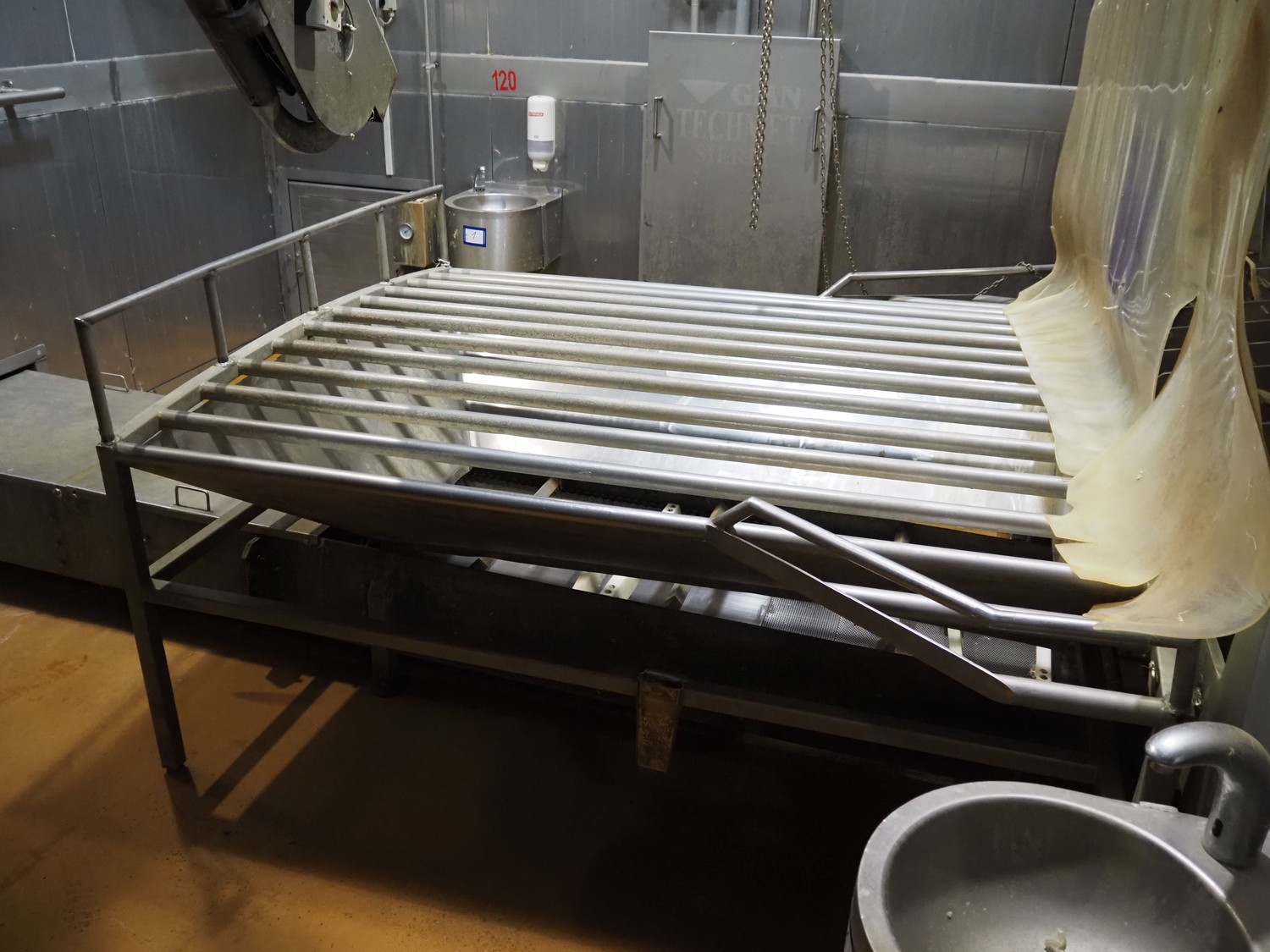

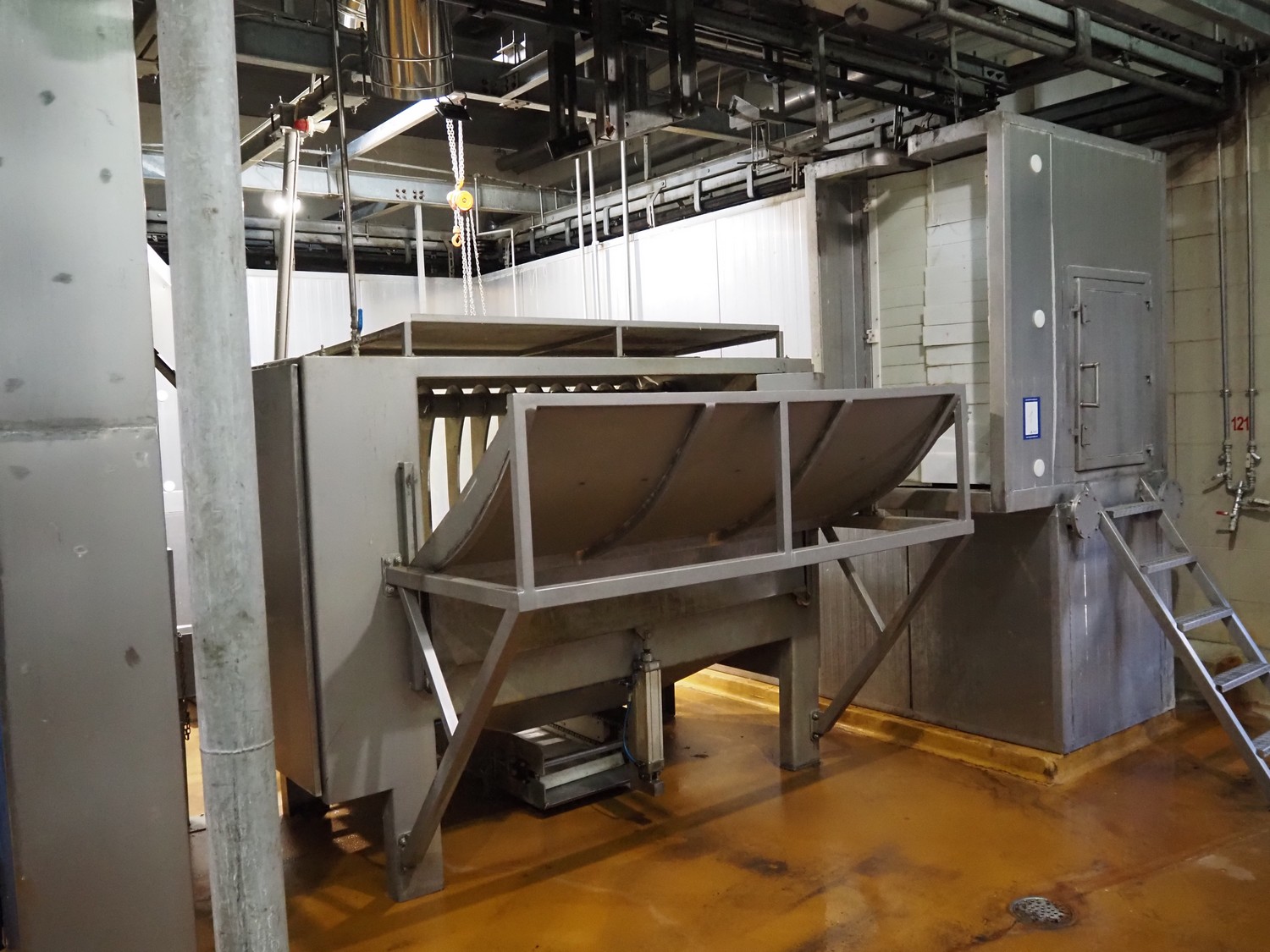

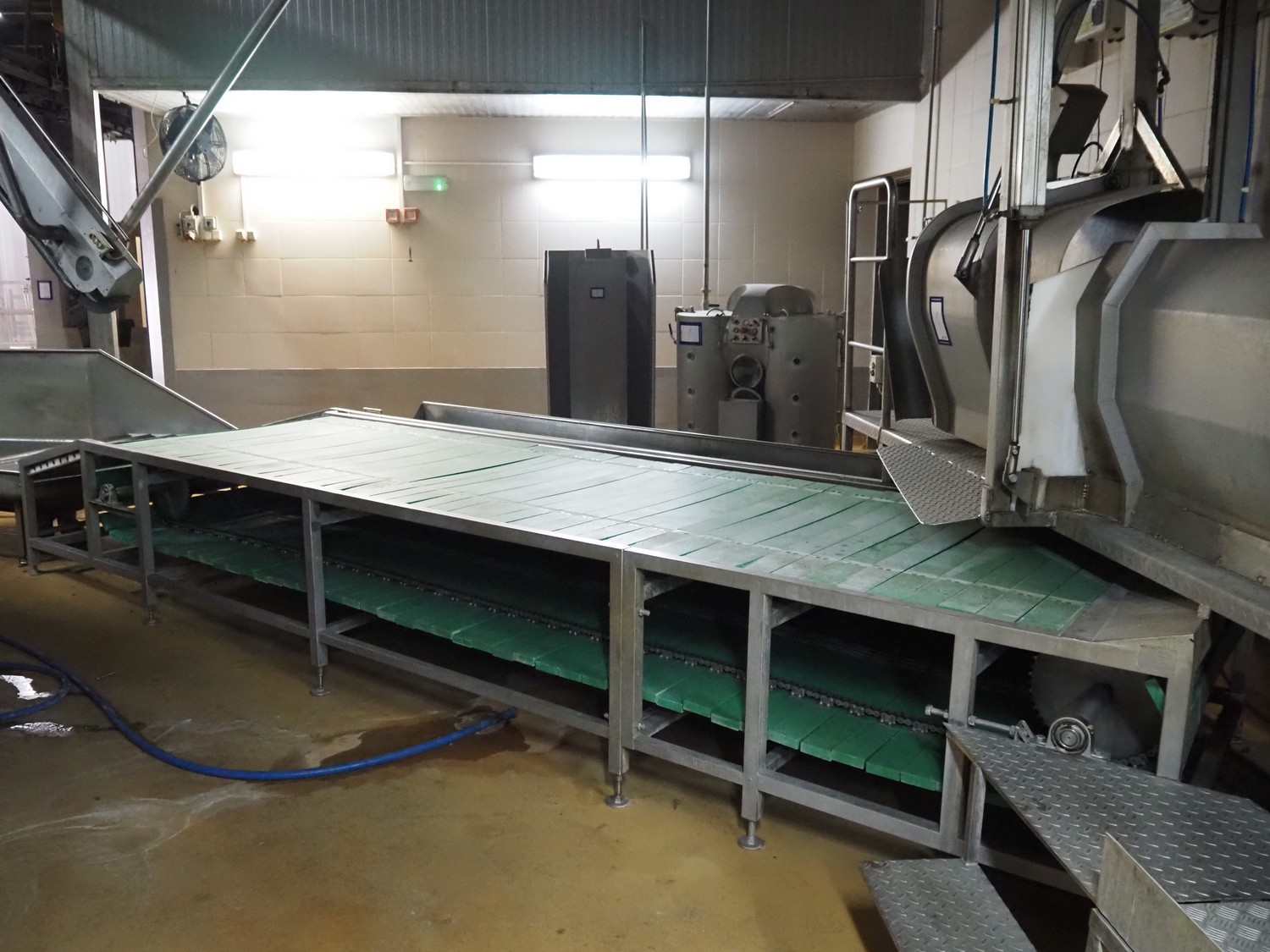

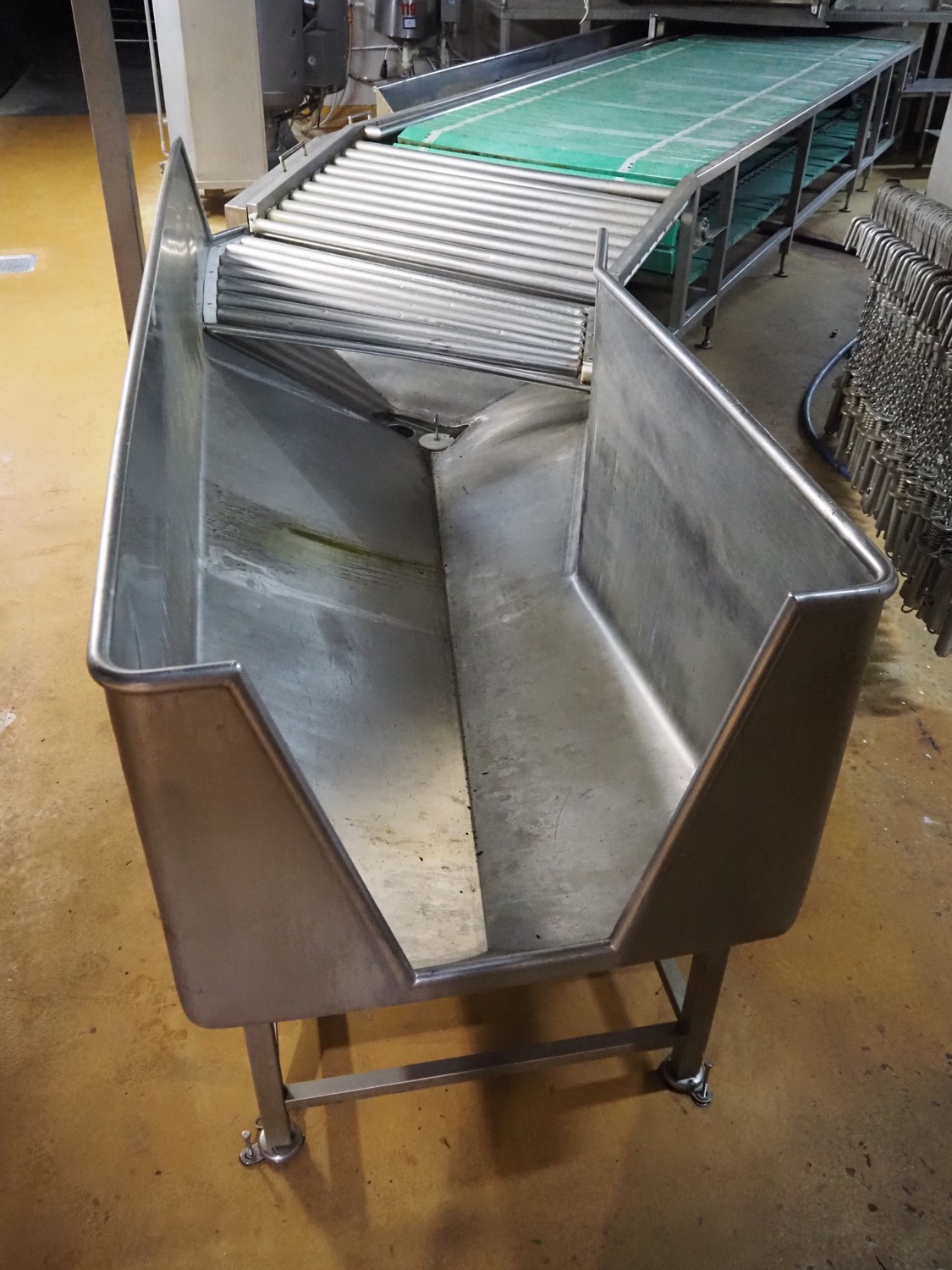

- Hanging table with blood gutter, type: PT-1RP, number: 42/09, year of construction: 03/2009, 0.75 kW, weight: 1020 kg, belt width: 1345 mm, belt length: 4800 mm, total dimensions: 9300 mm x 5200 mm x 1050 mm.

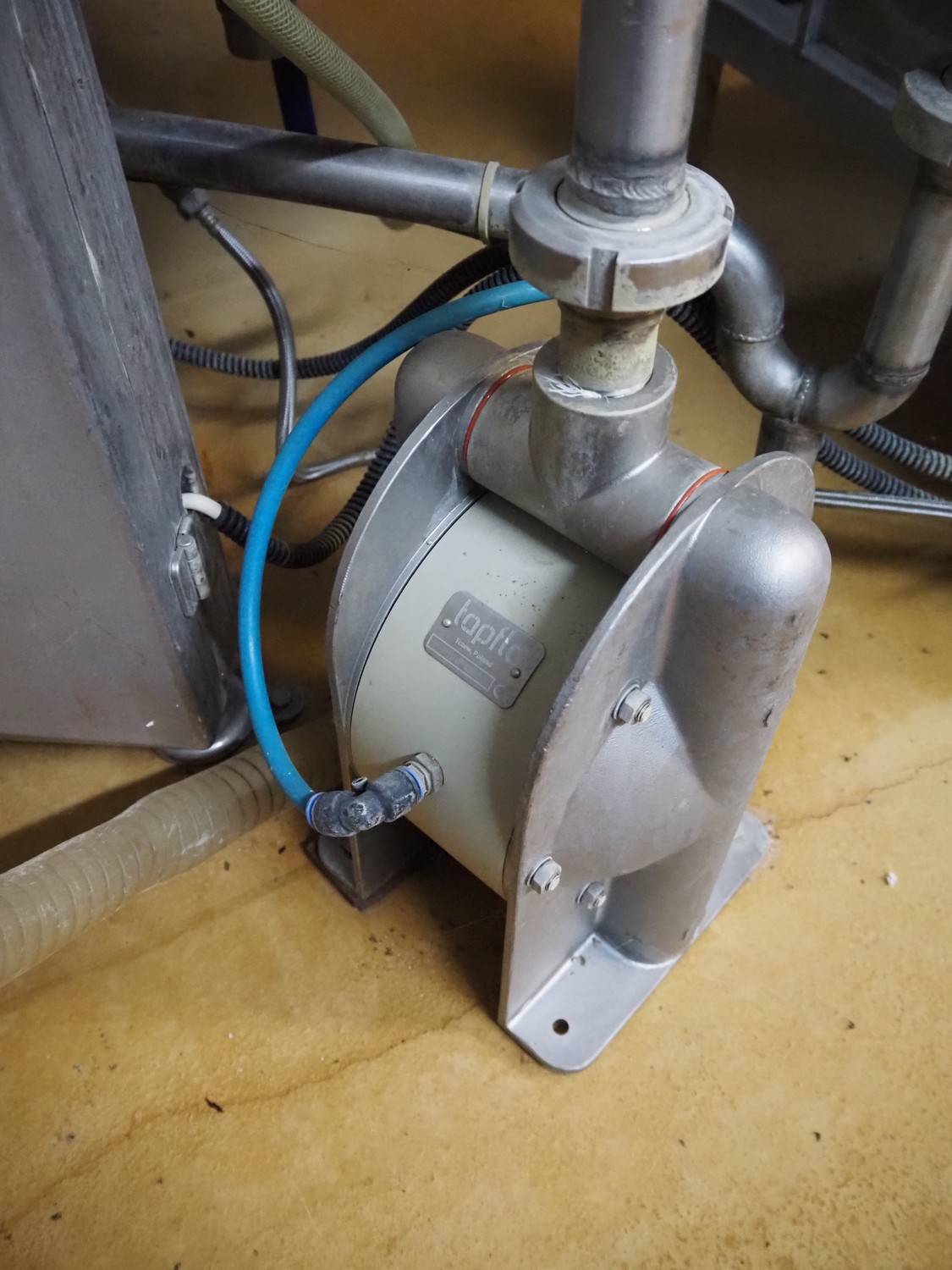

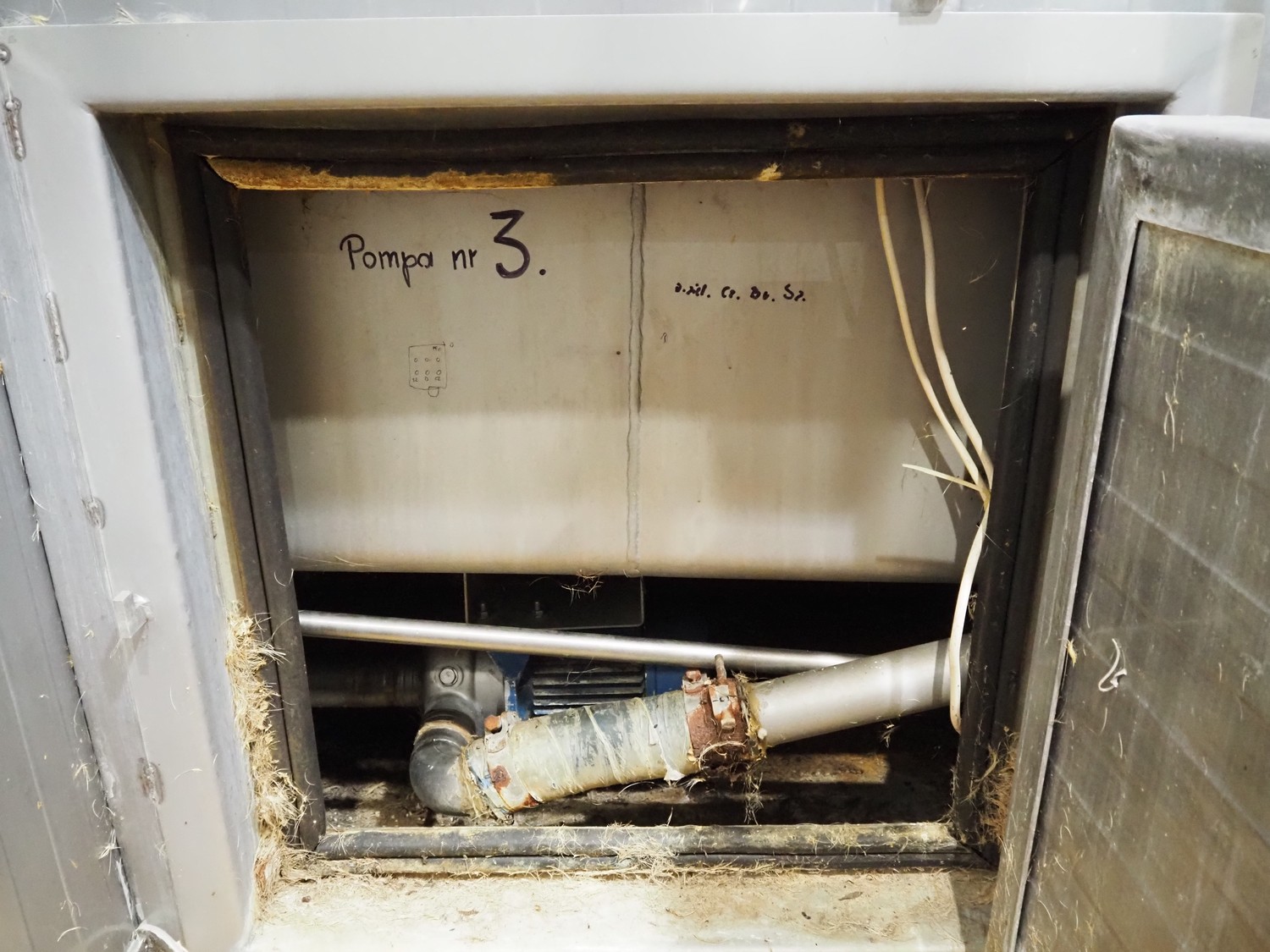

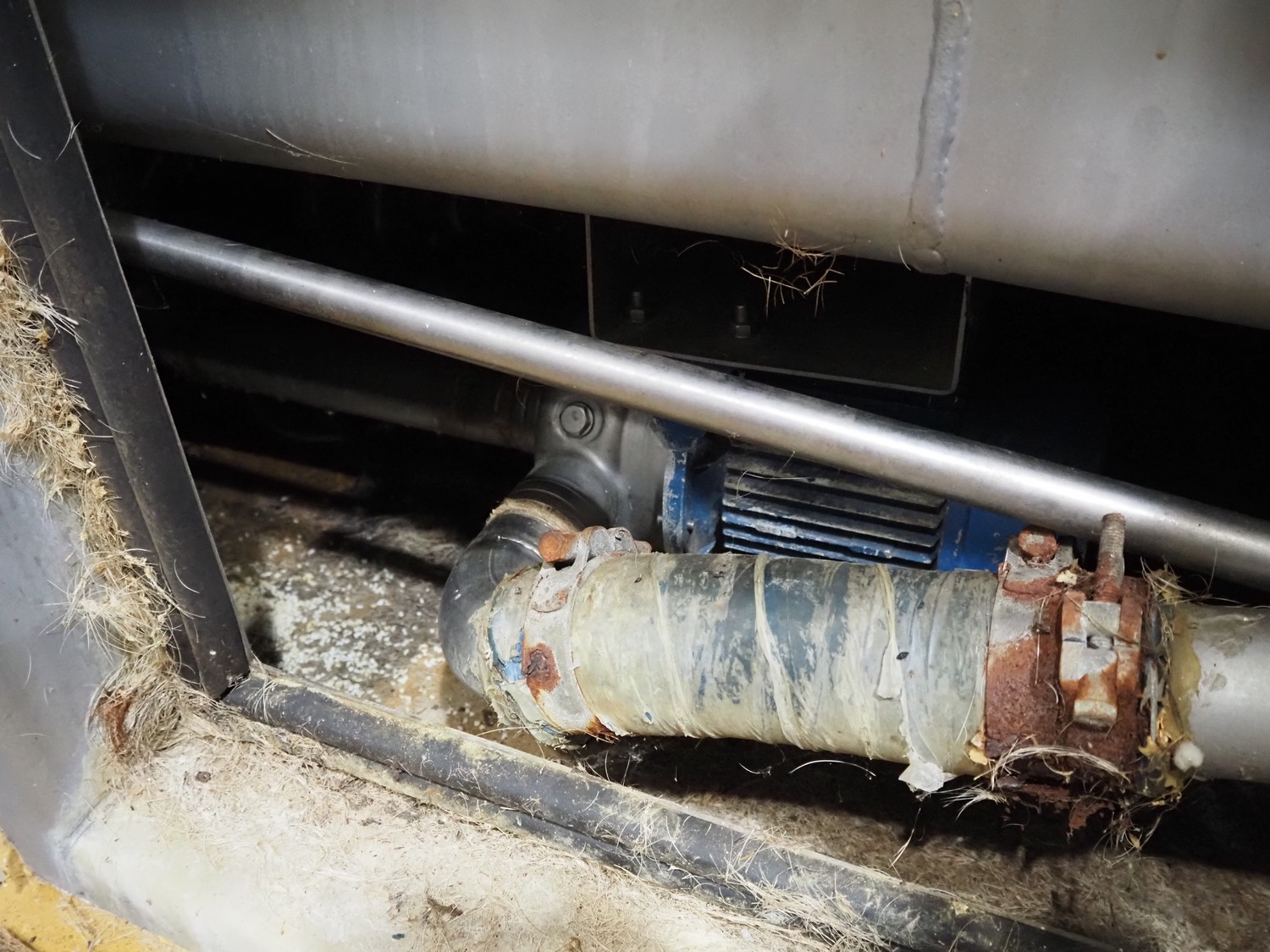

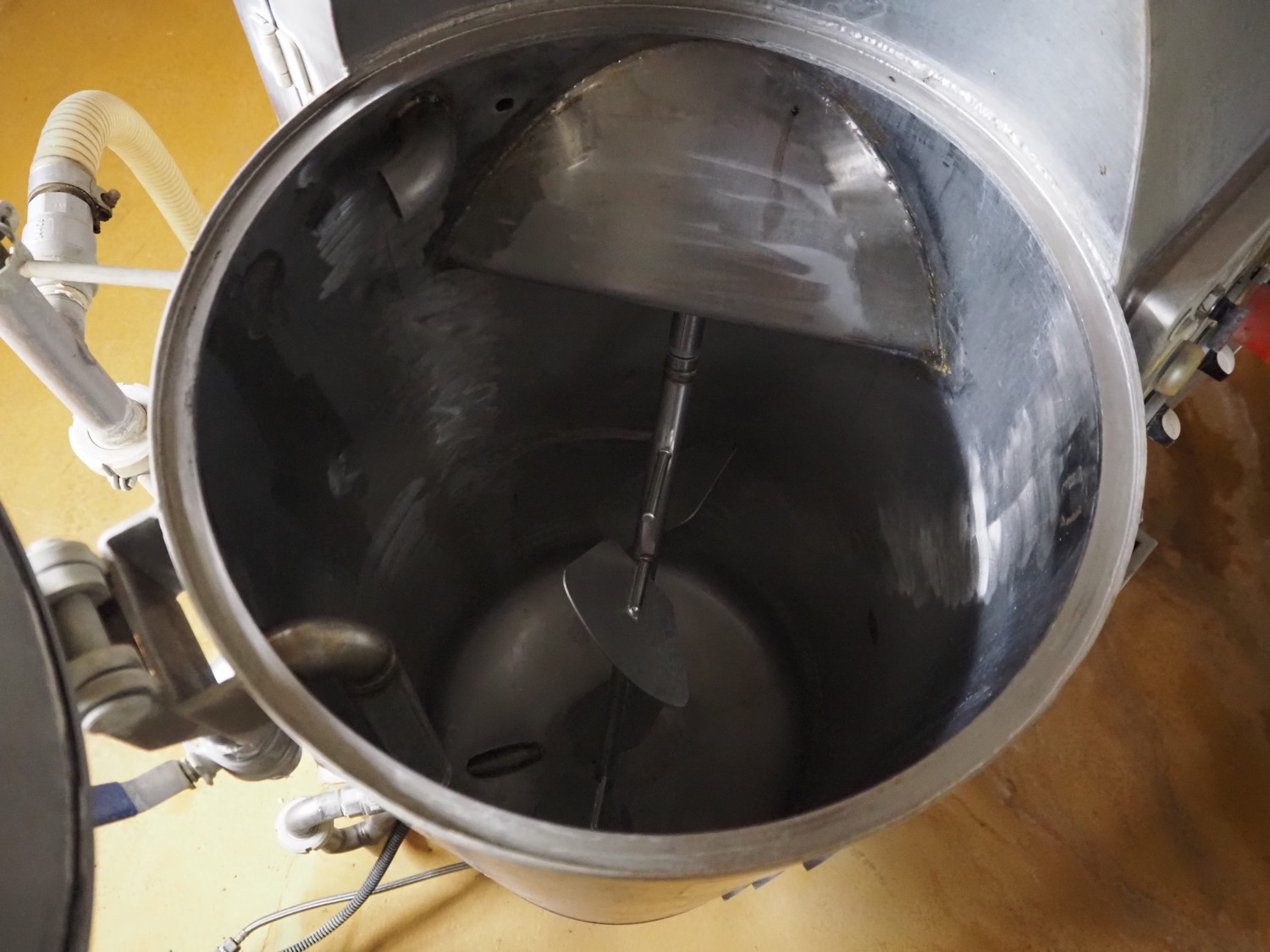

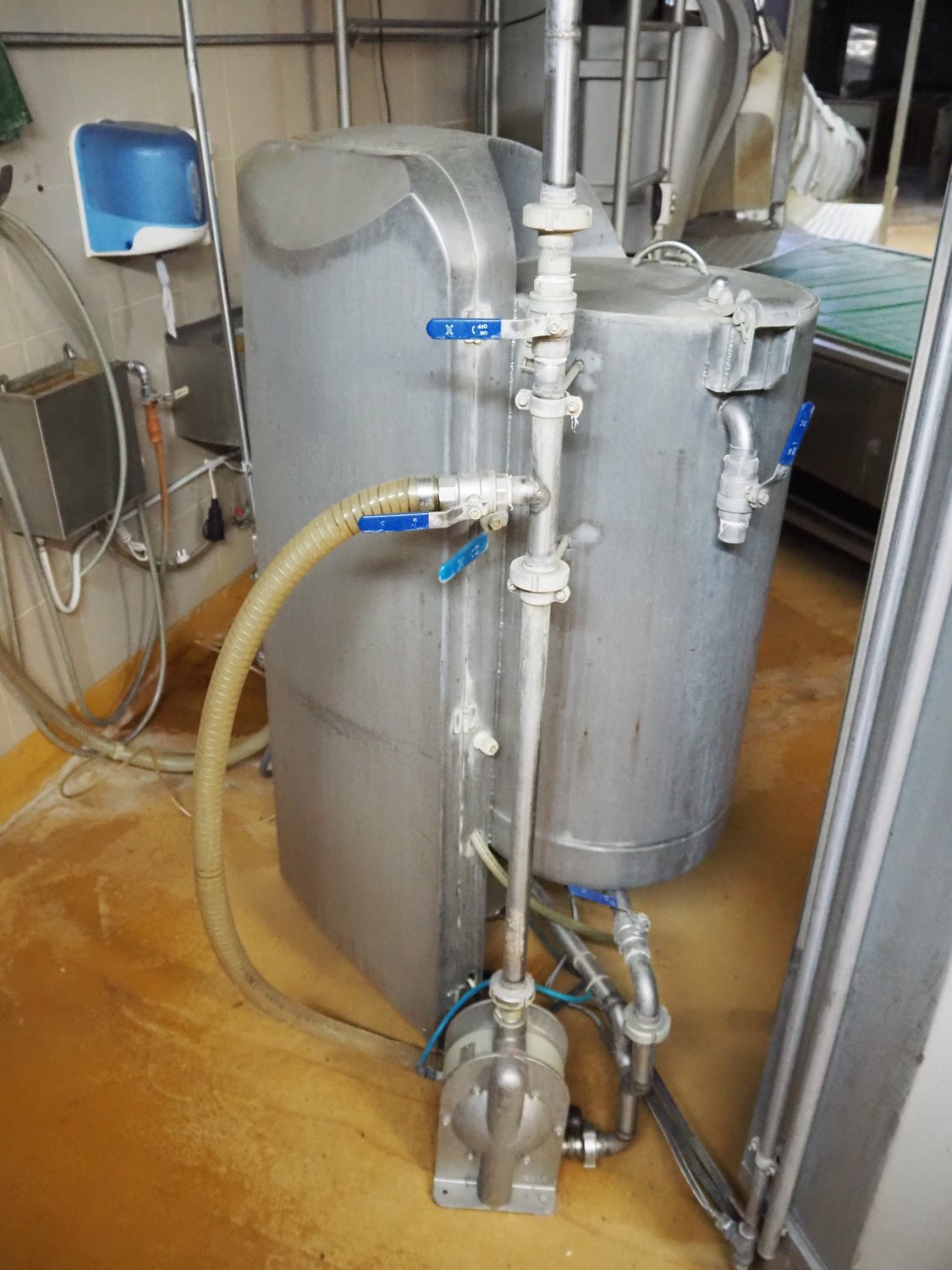

- Blood collection with memebrame pump, dimensions: 1200 mm x 700 mm x 1600 mm.

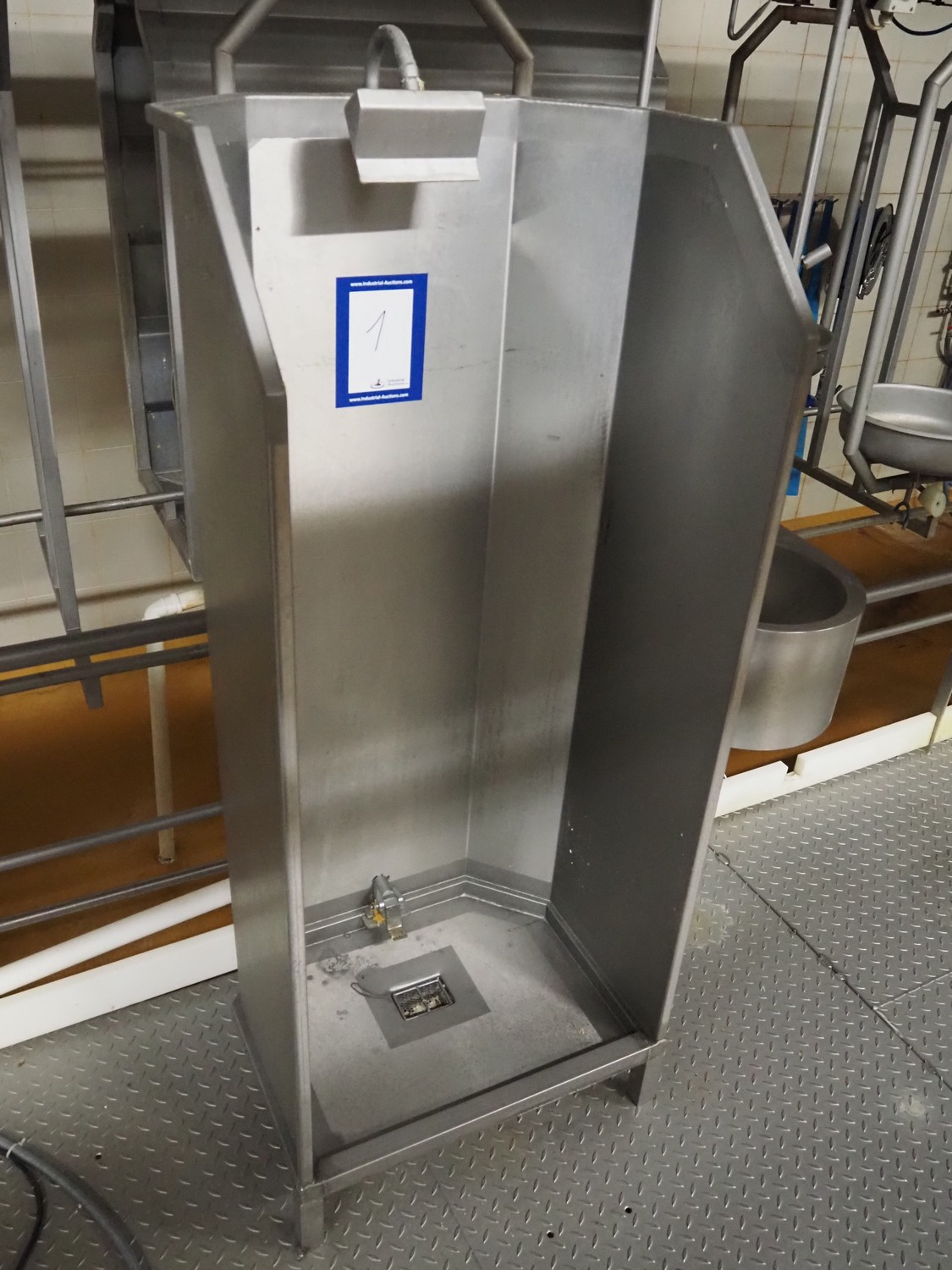

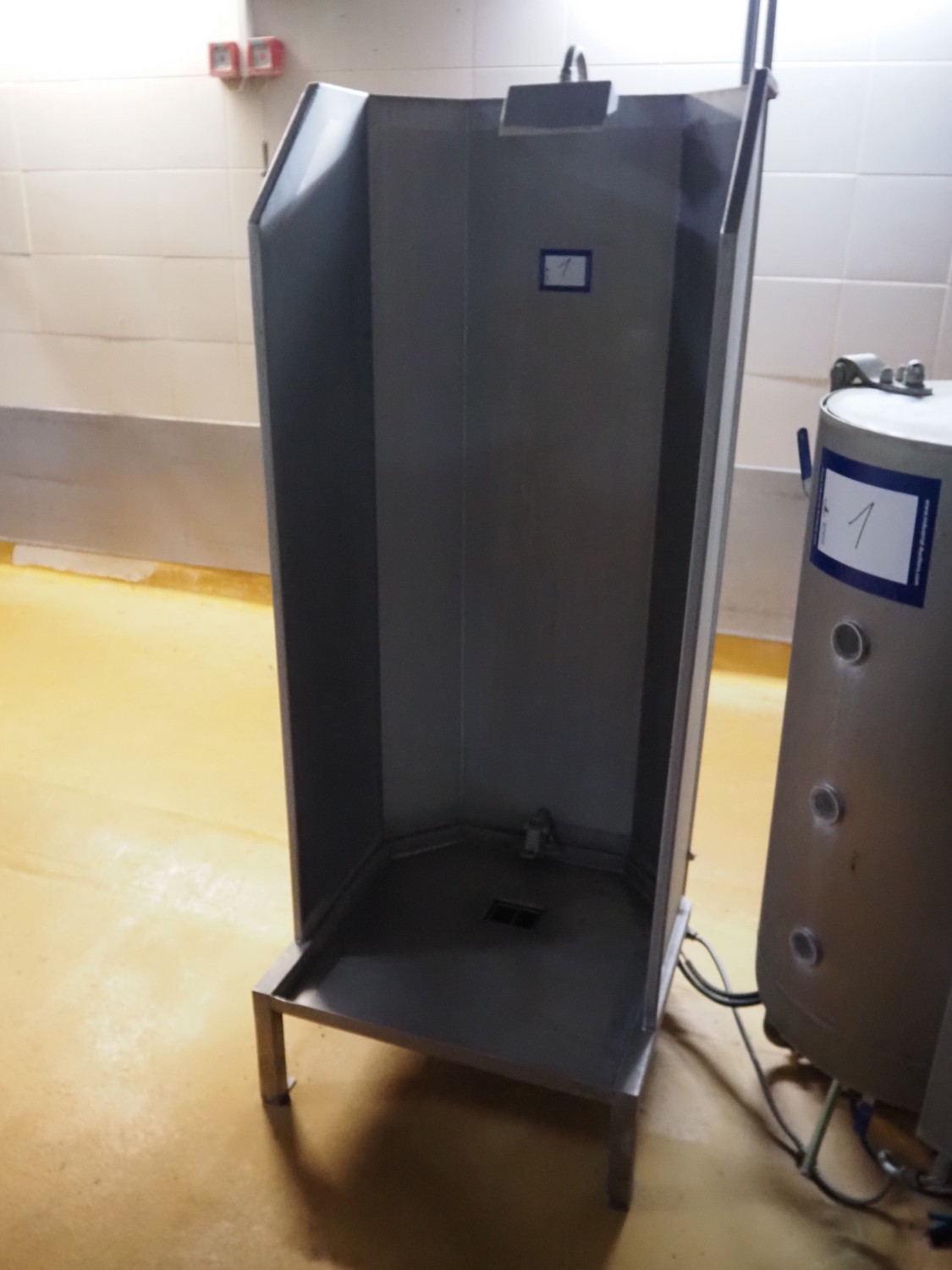

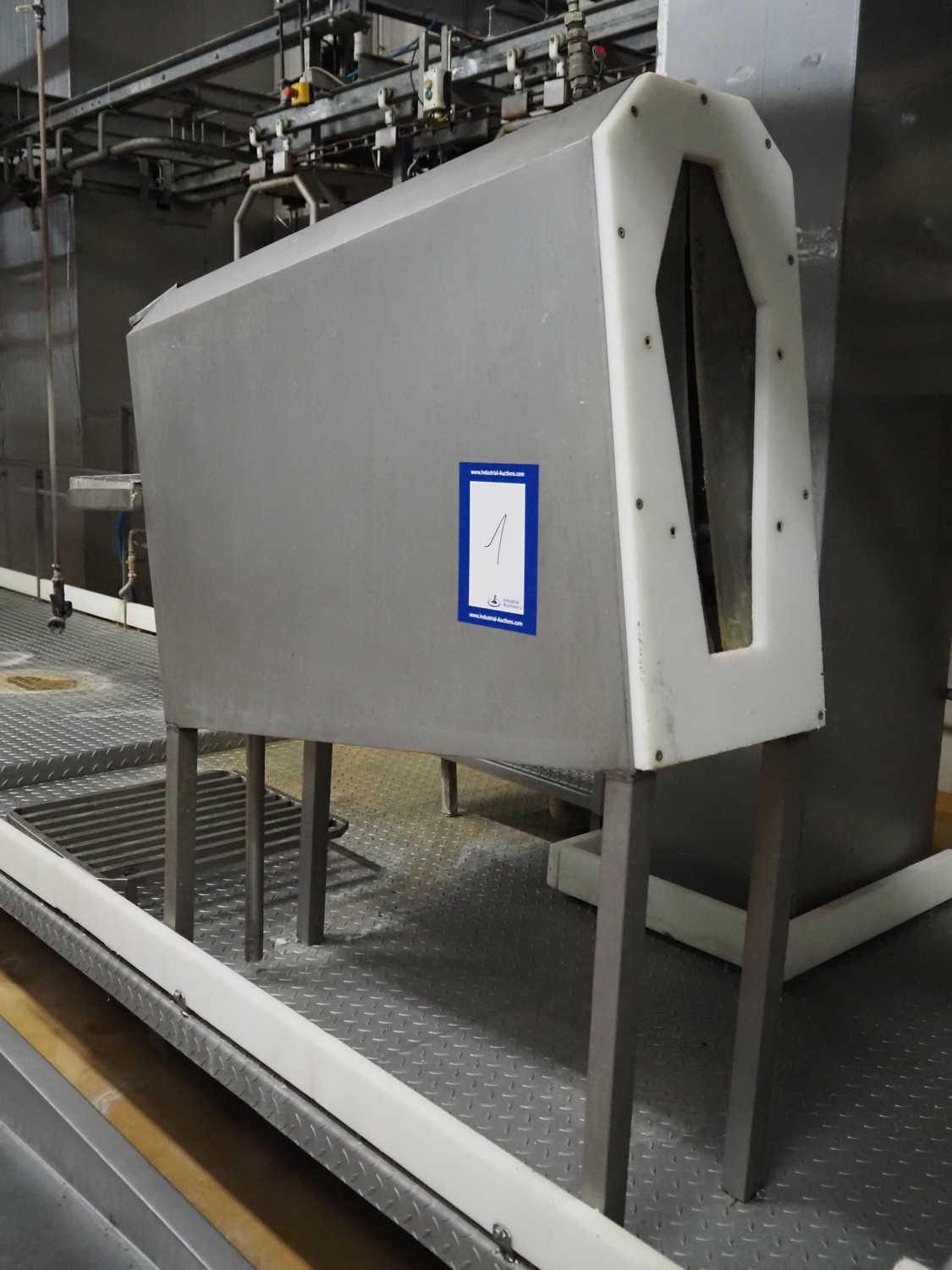

- S/s apron washer, dimensions: 720 mm x 700 mm x 1850 mm.

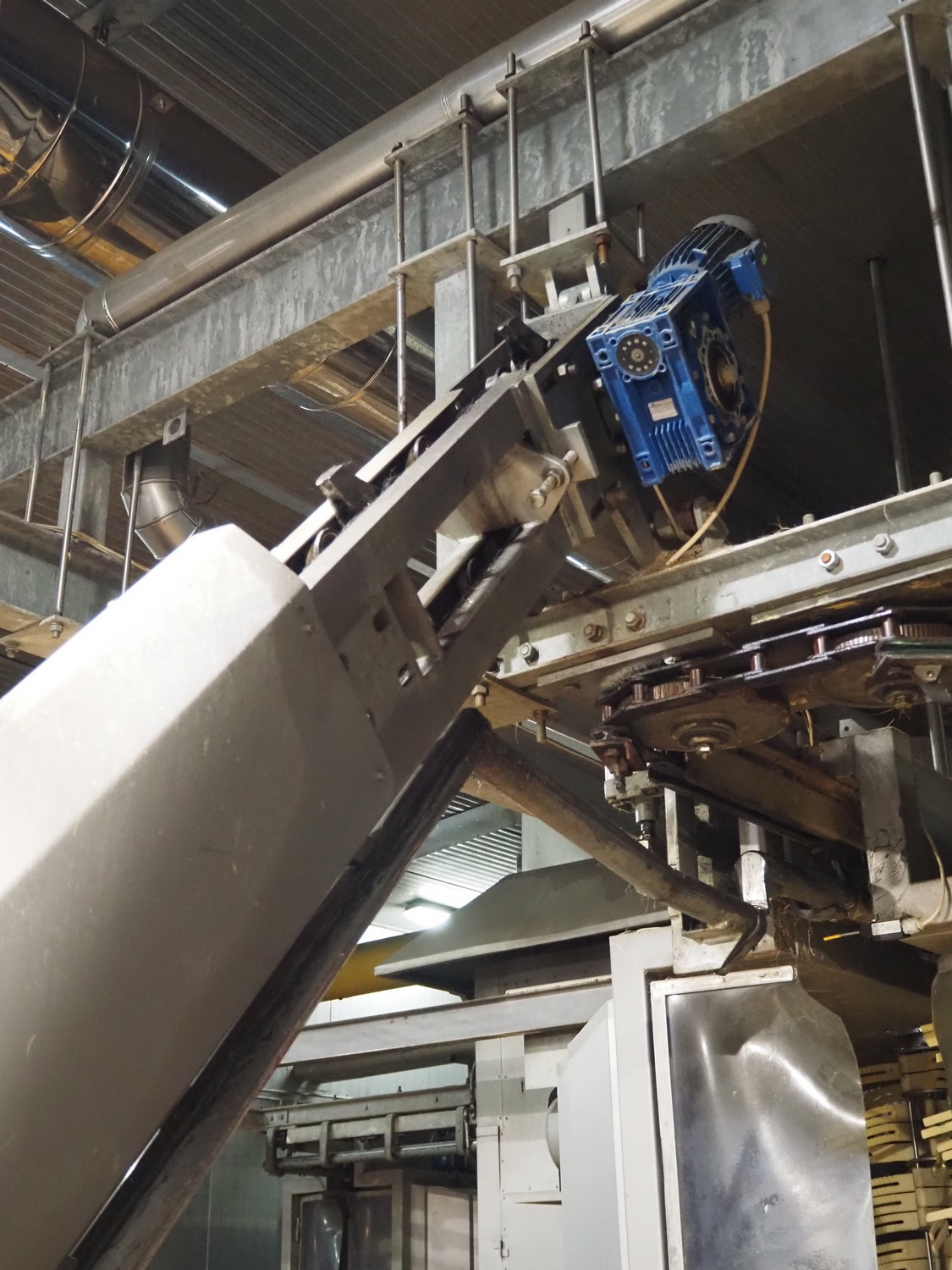

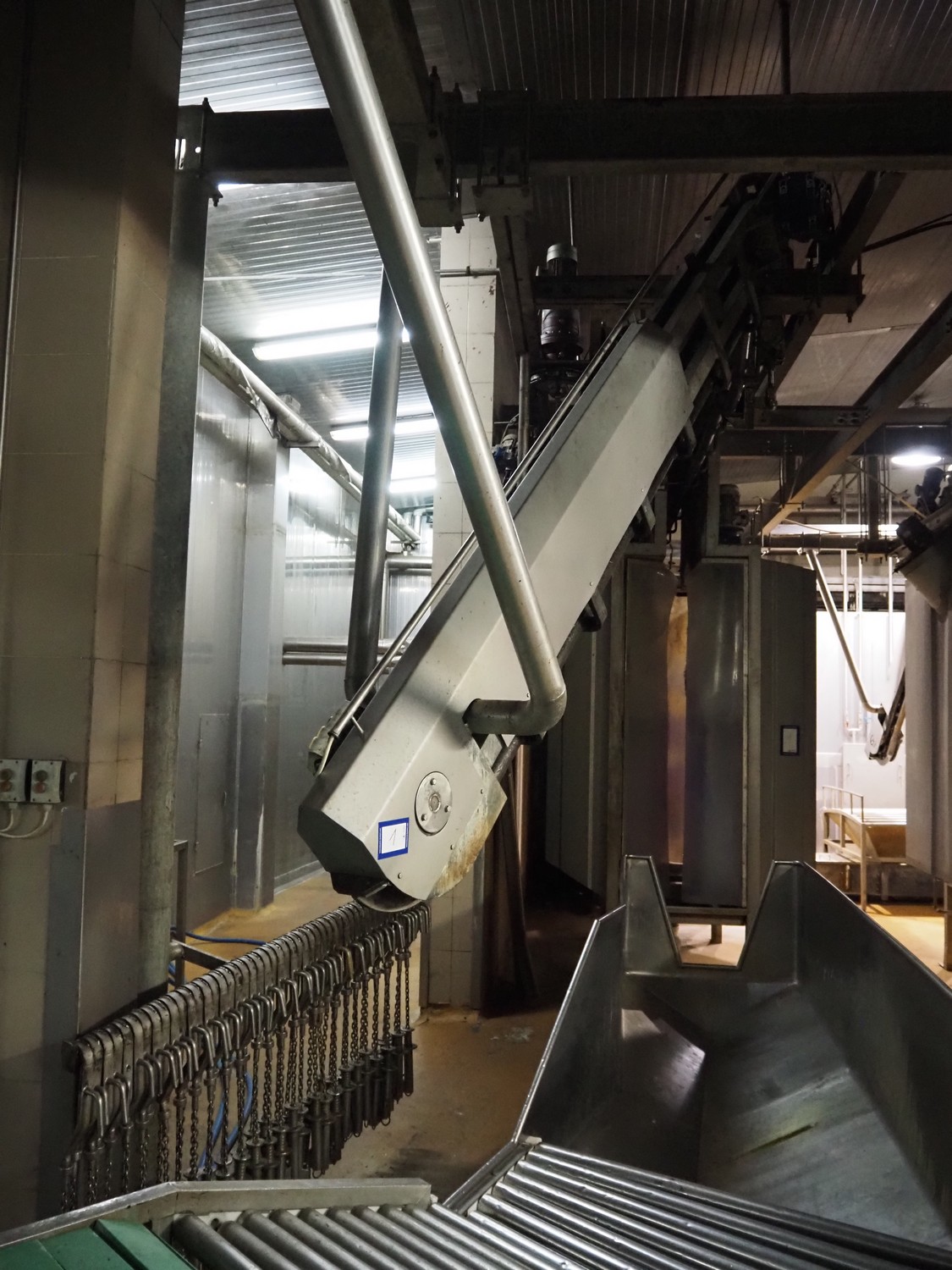

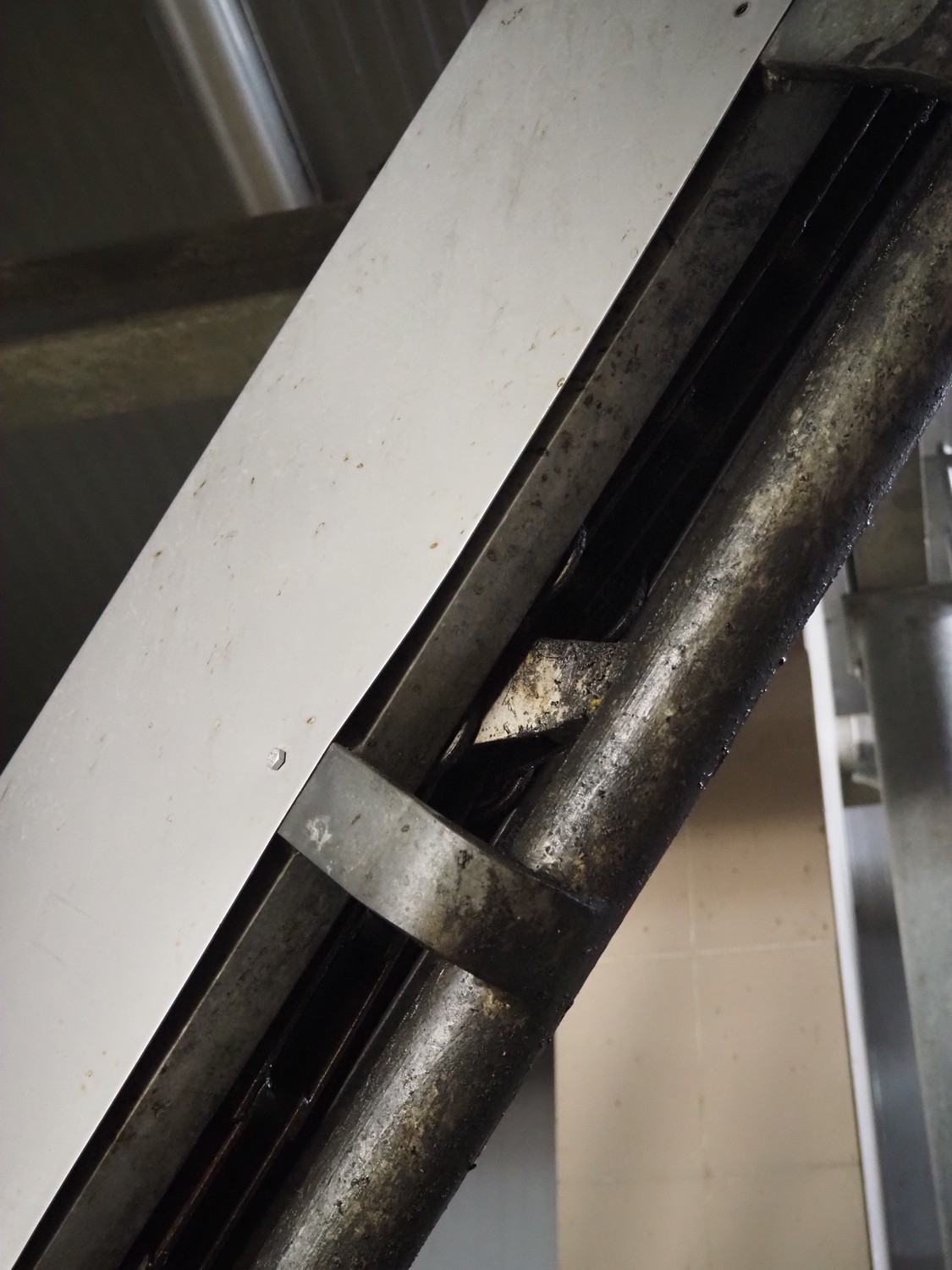

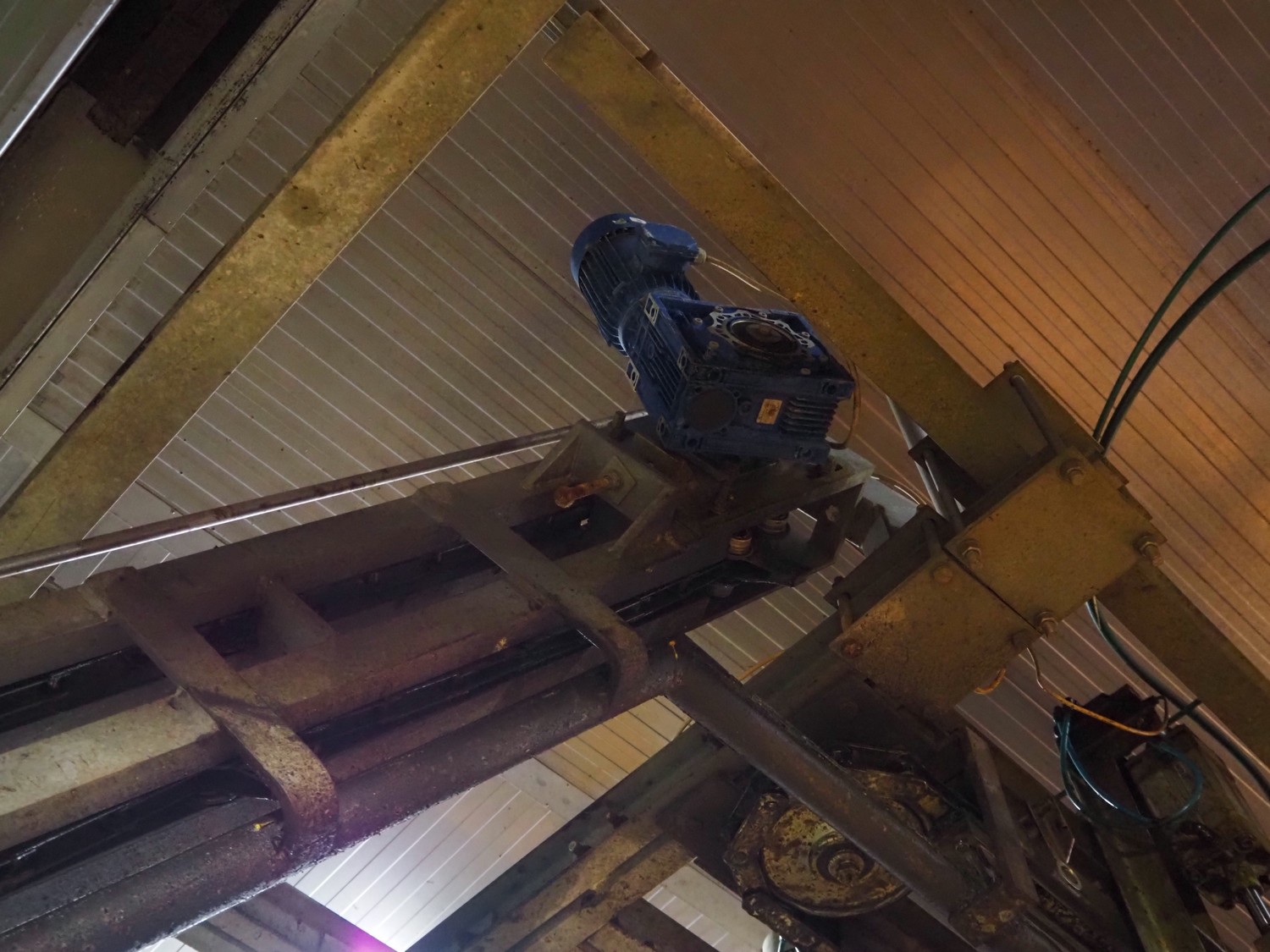

- Tube rail elevator, elevating height: 2100 mm, ø tube: 60 mm.

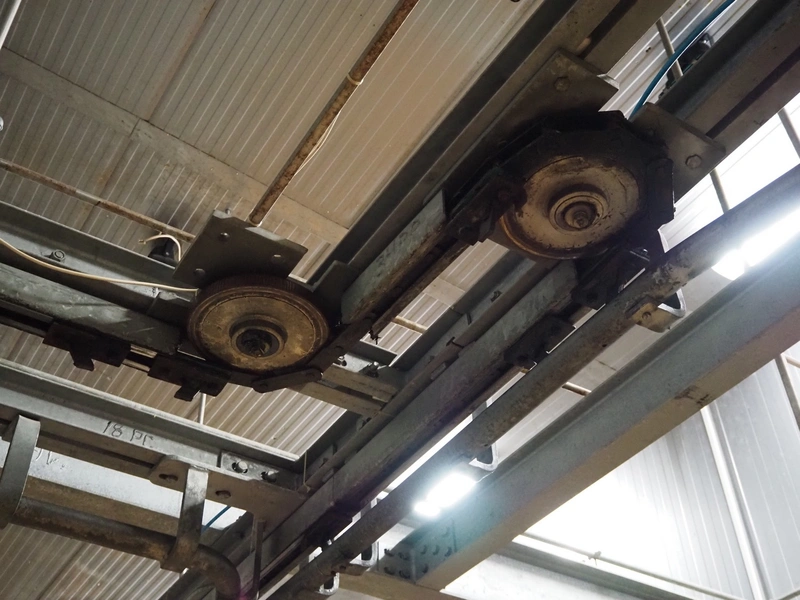

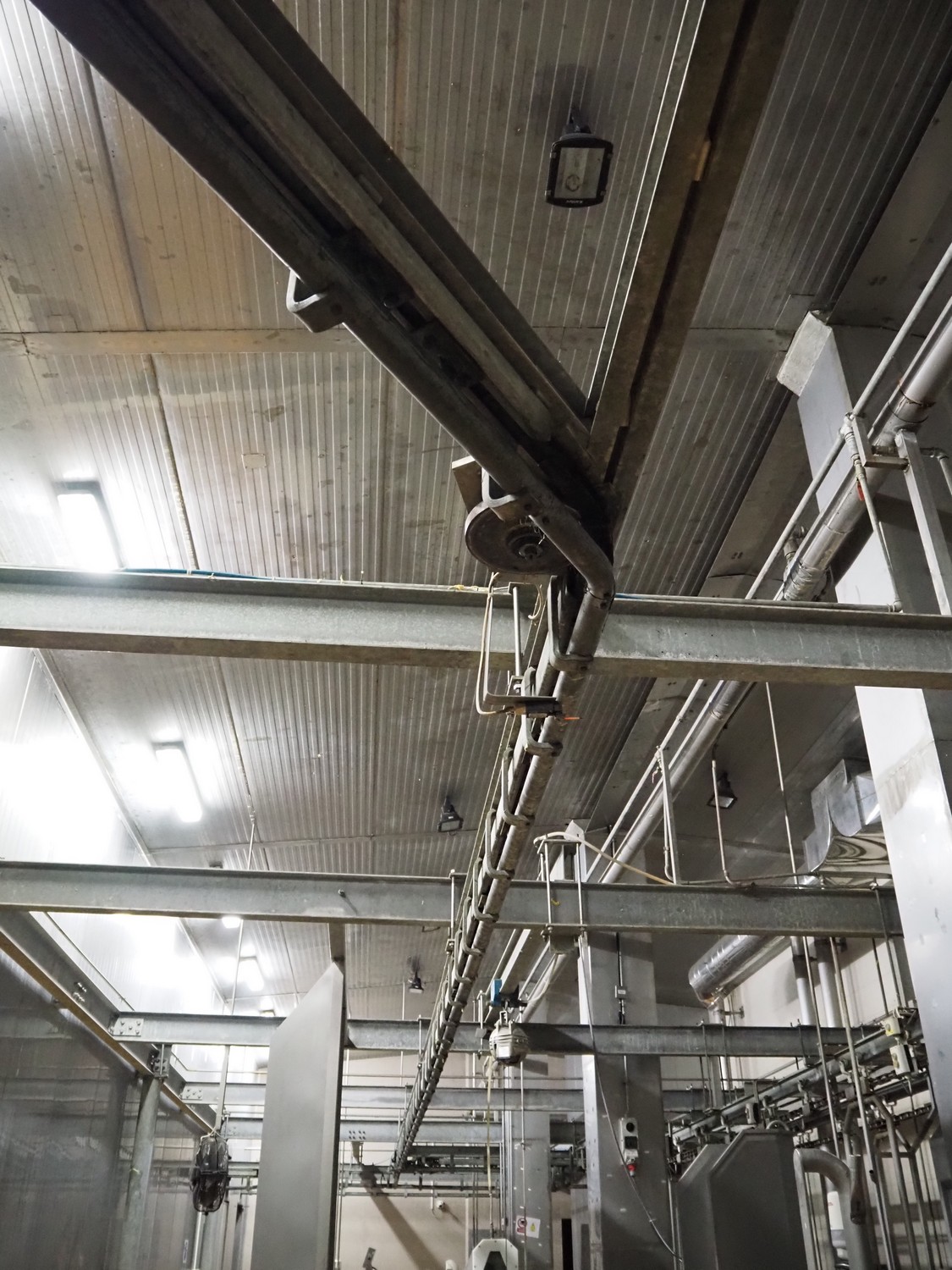

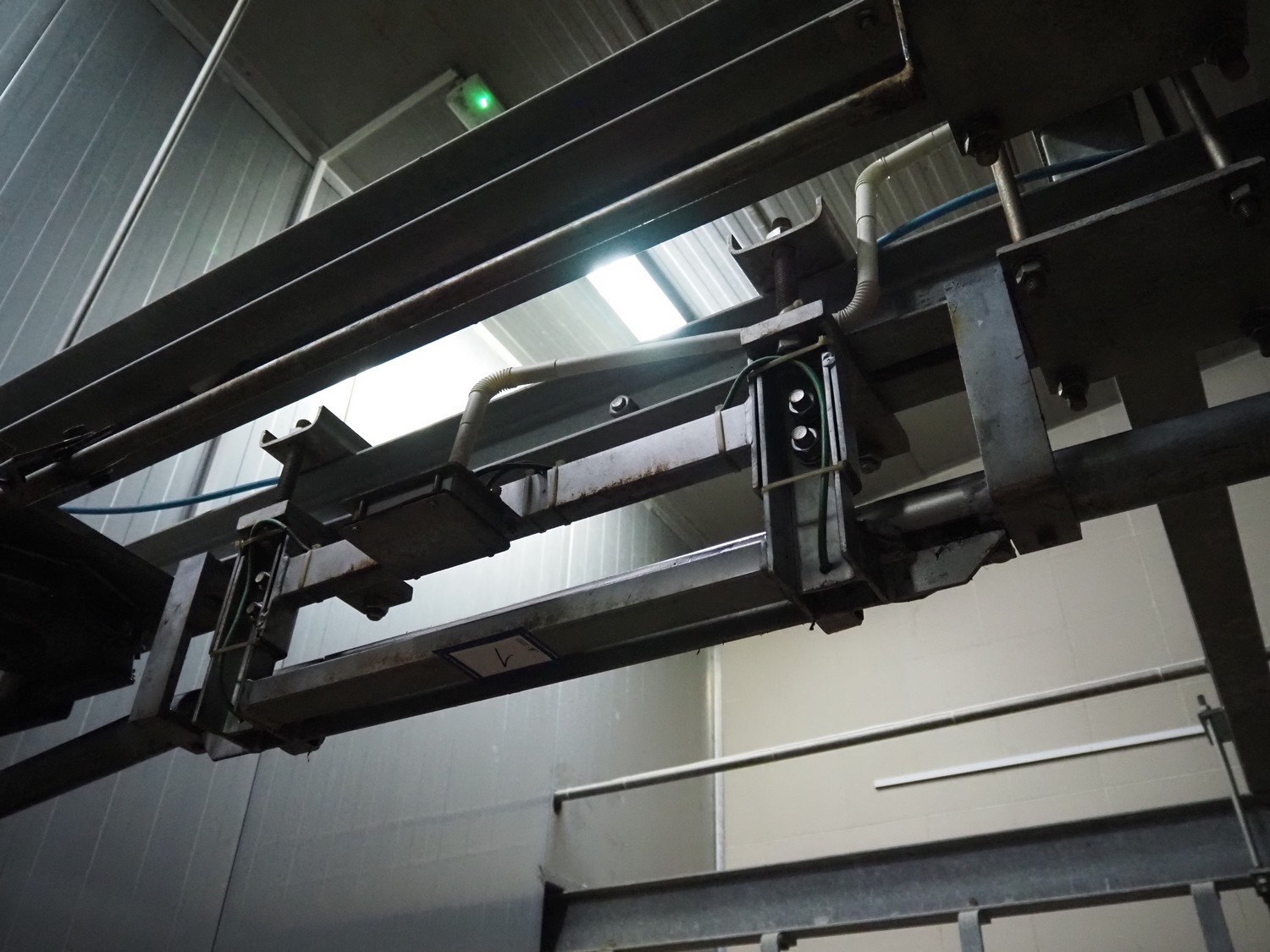

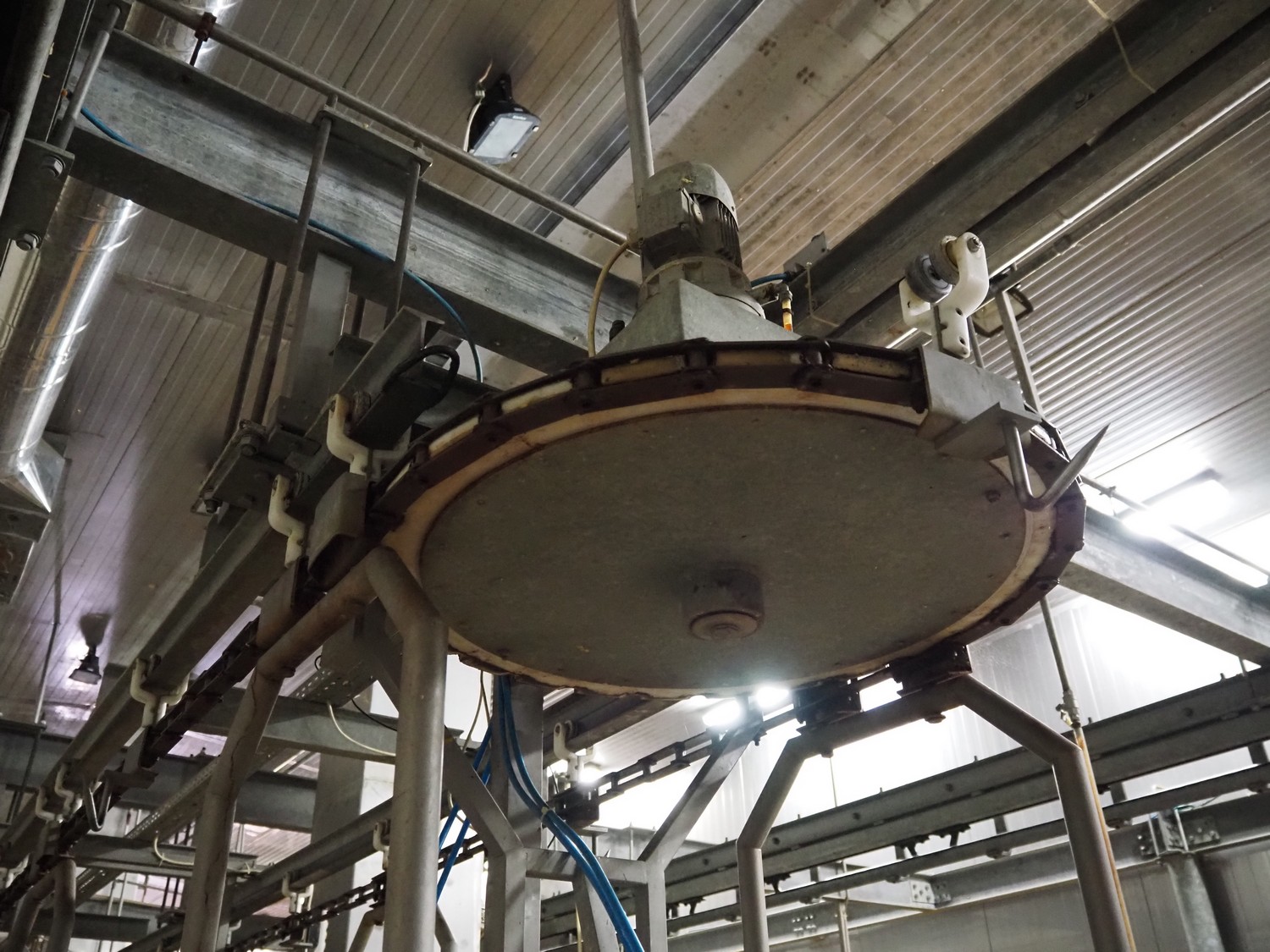

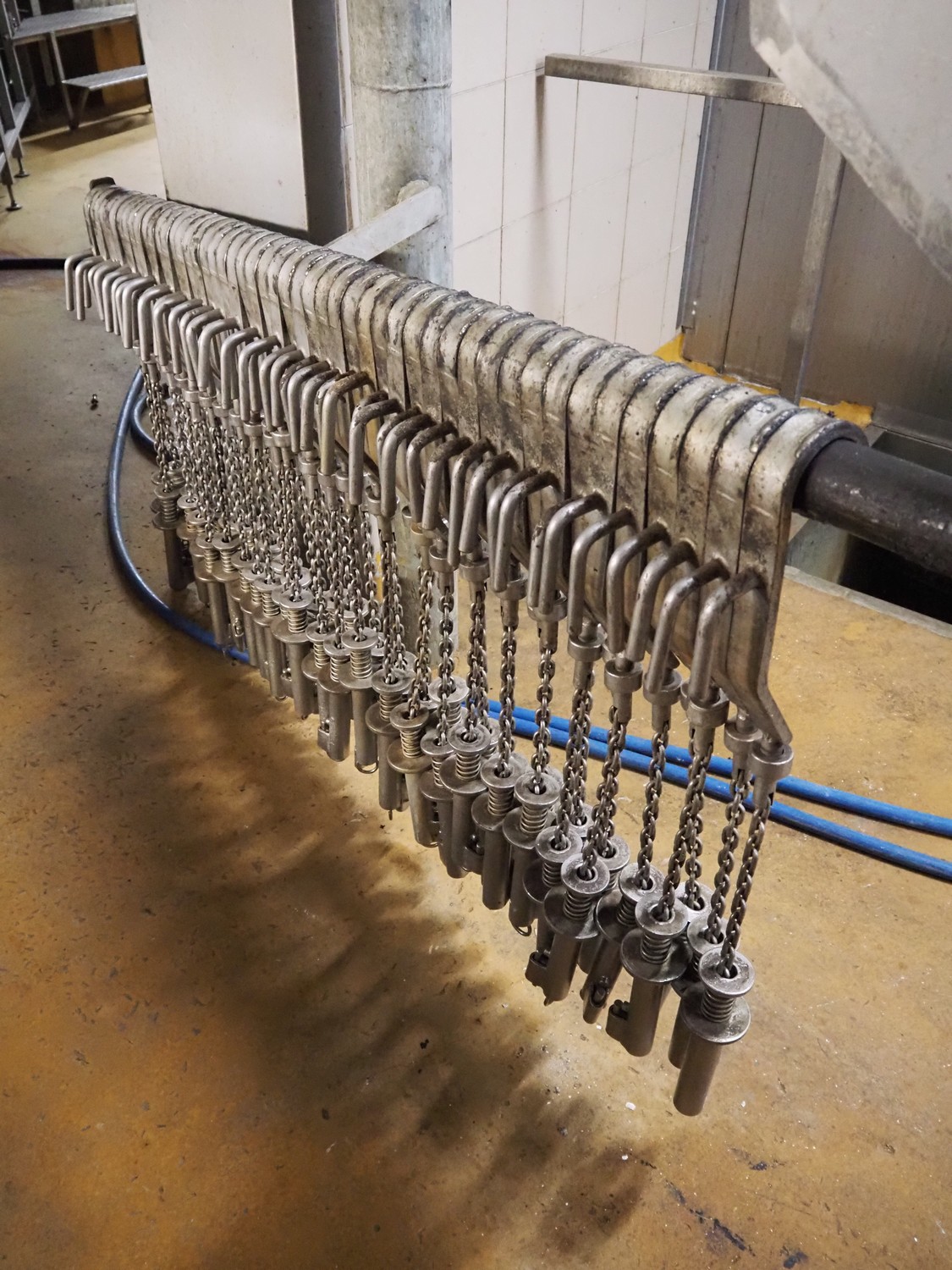

- Tube rail conveyor for dirt line with hook return and hook sterilizer with 50 shackles, ø tube: 60 mm.

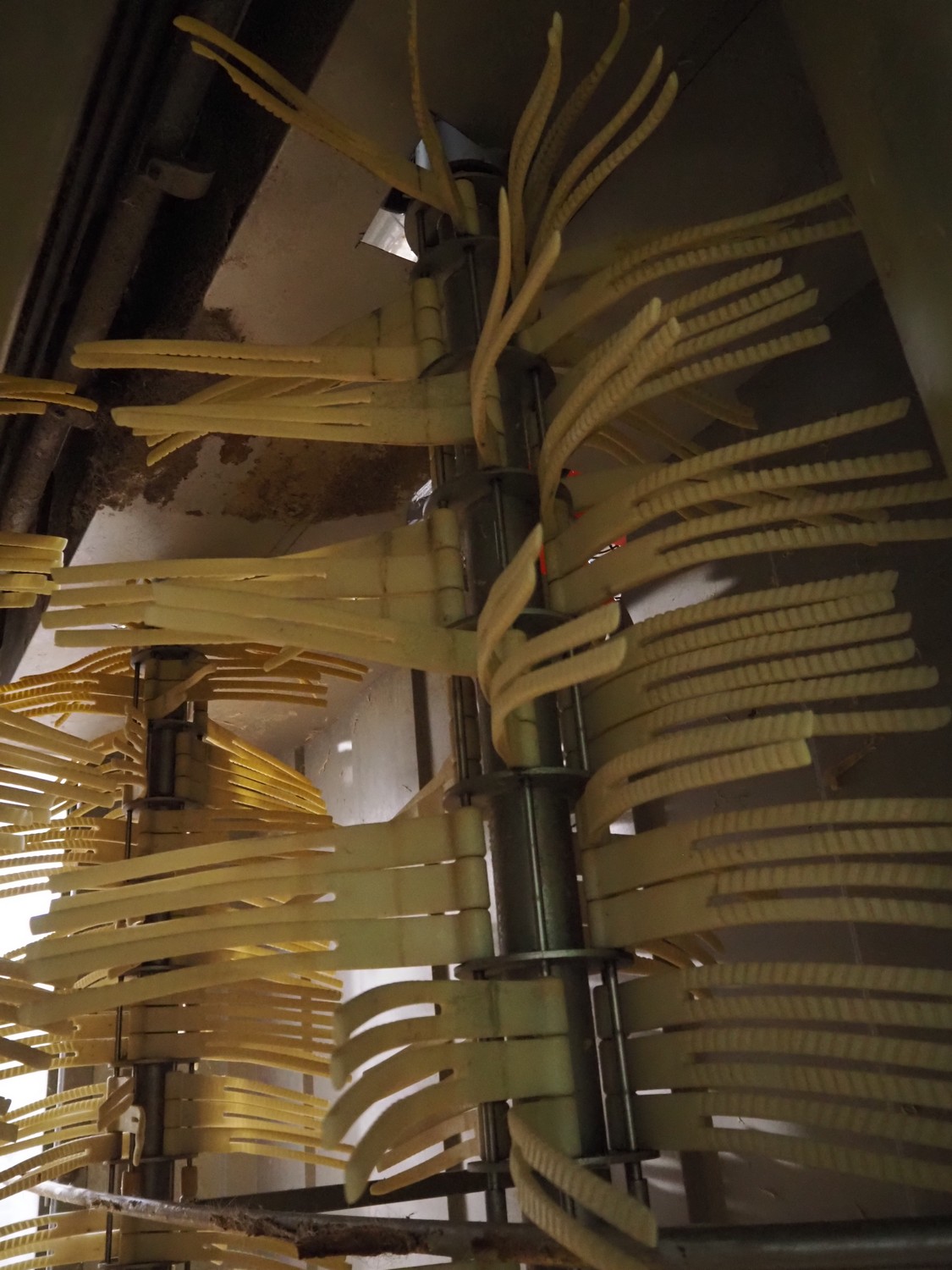

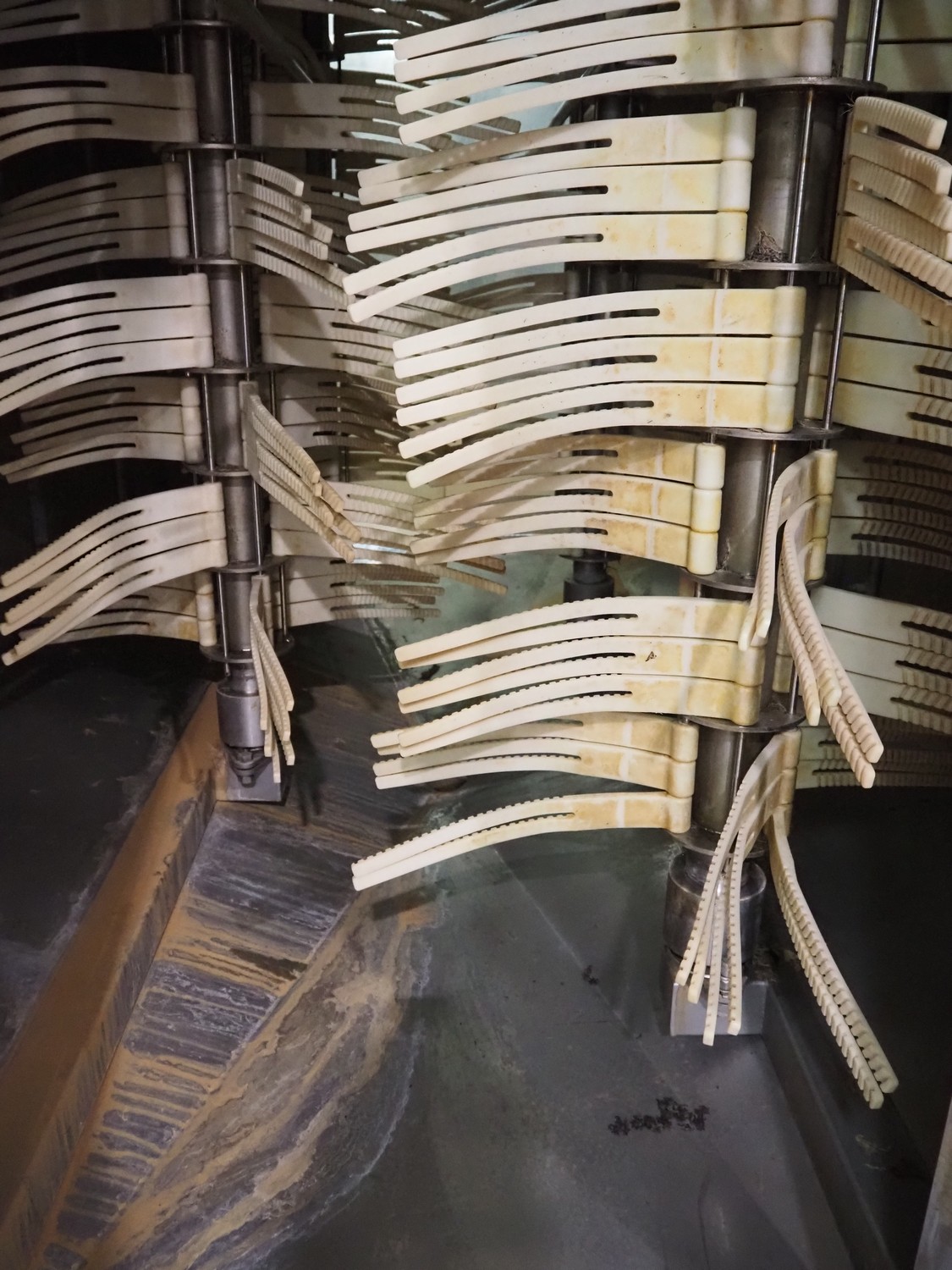

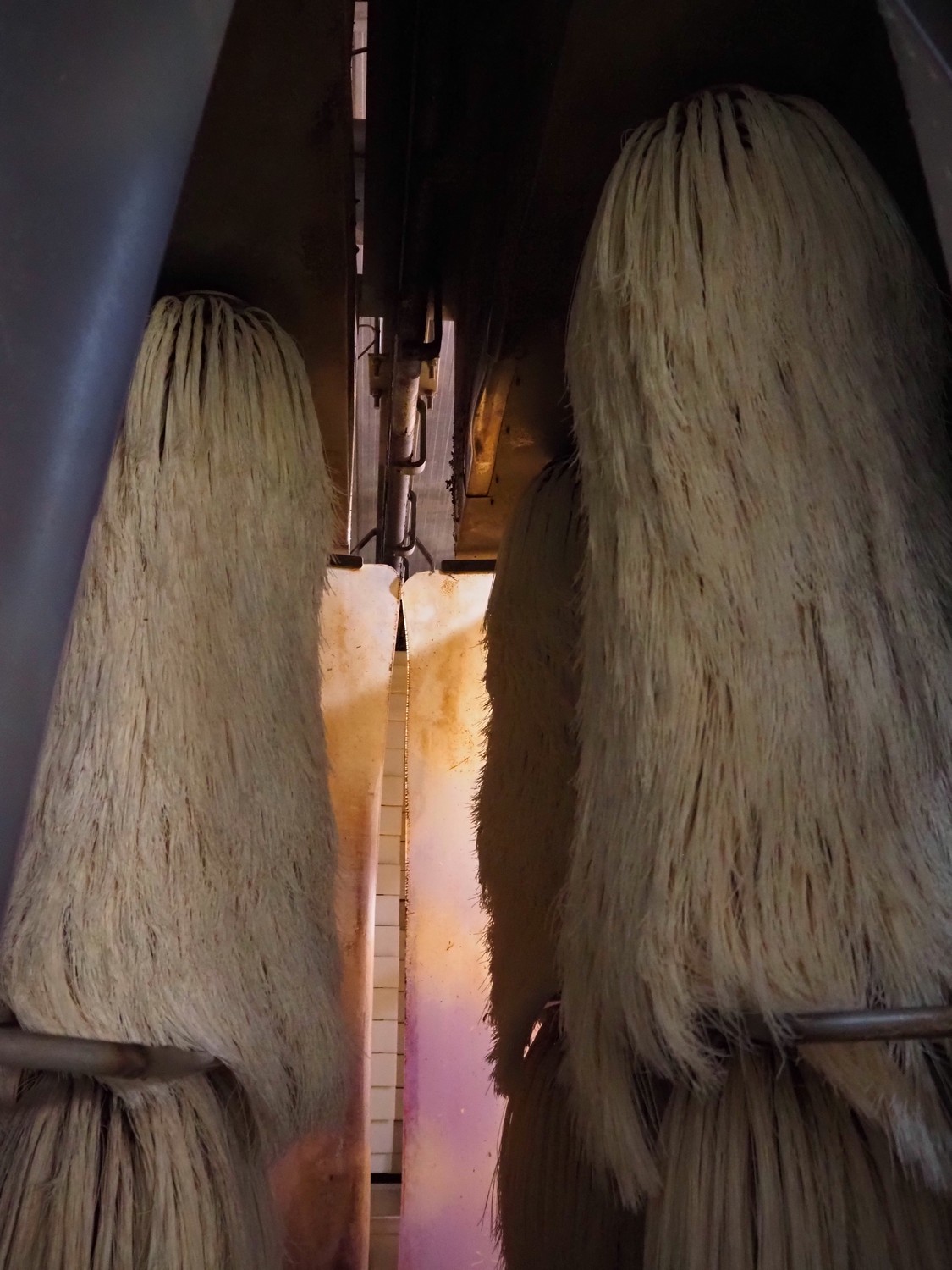

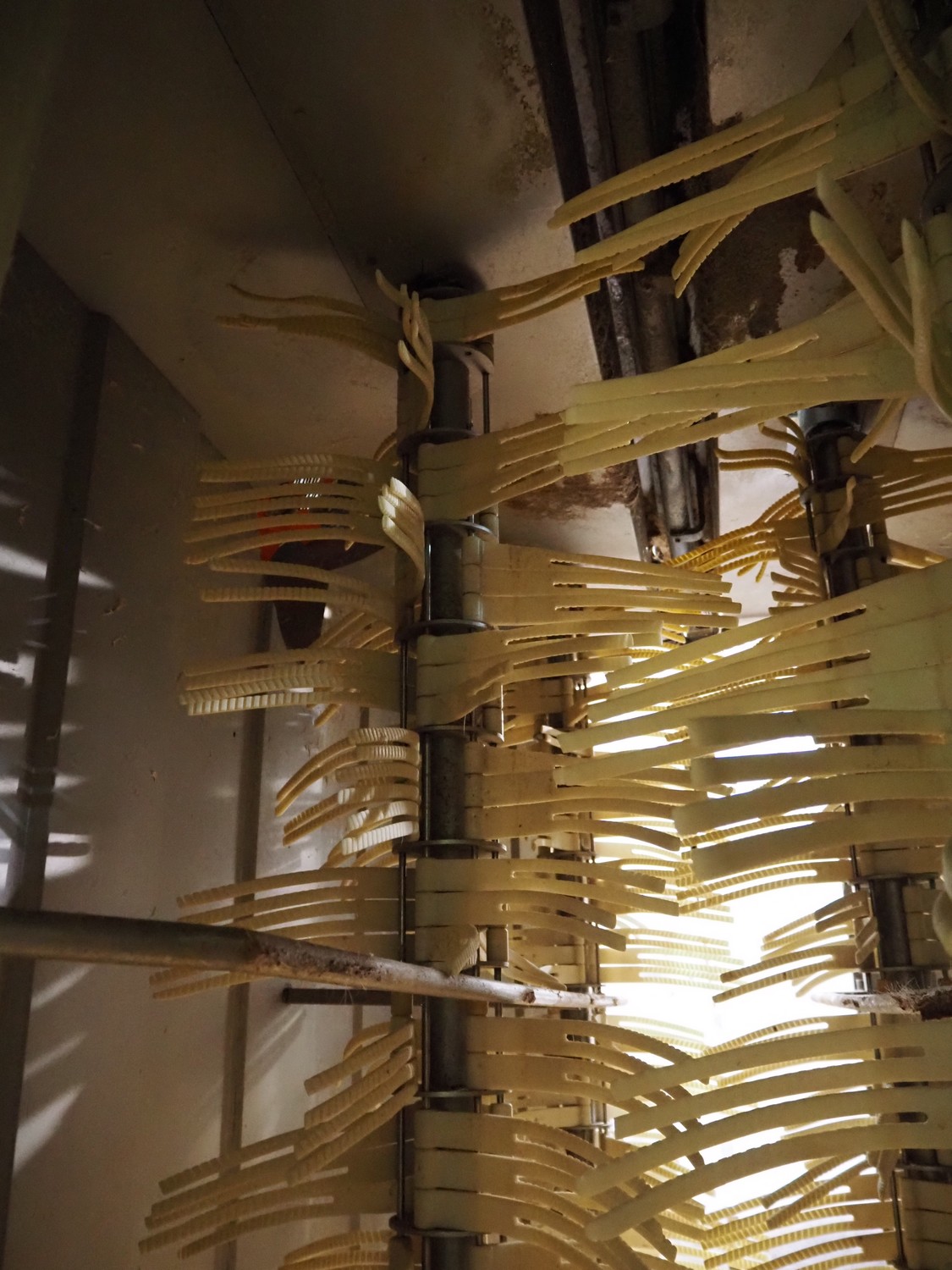

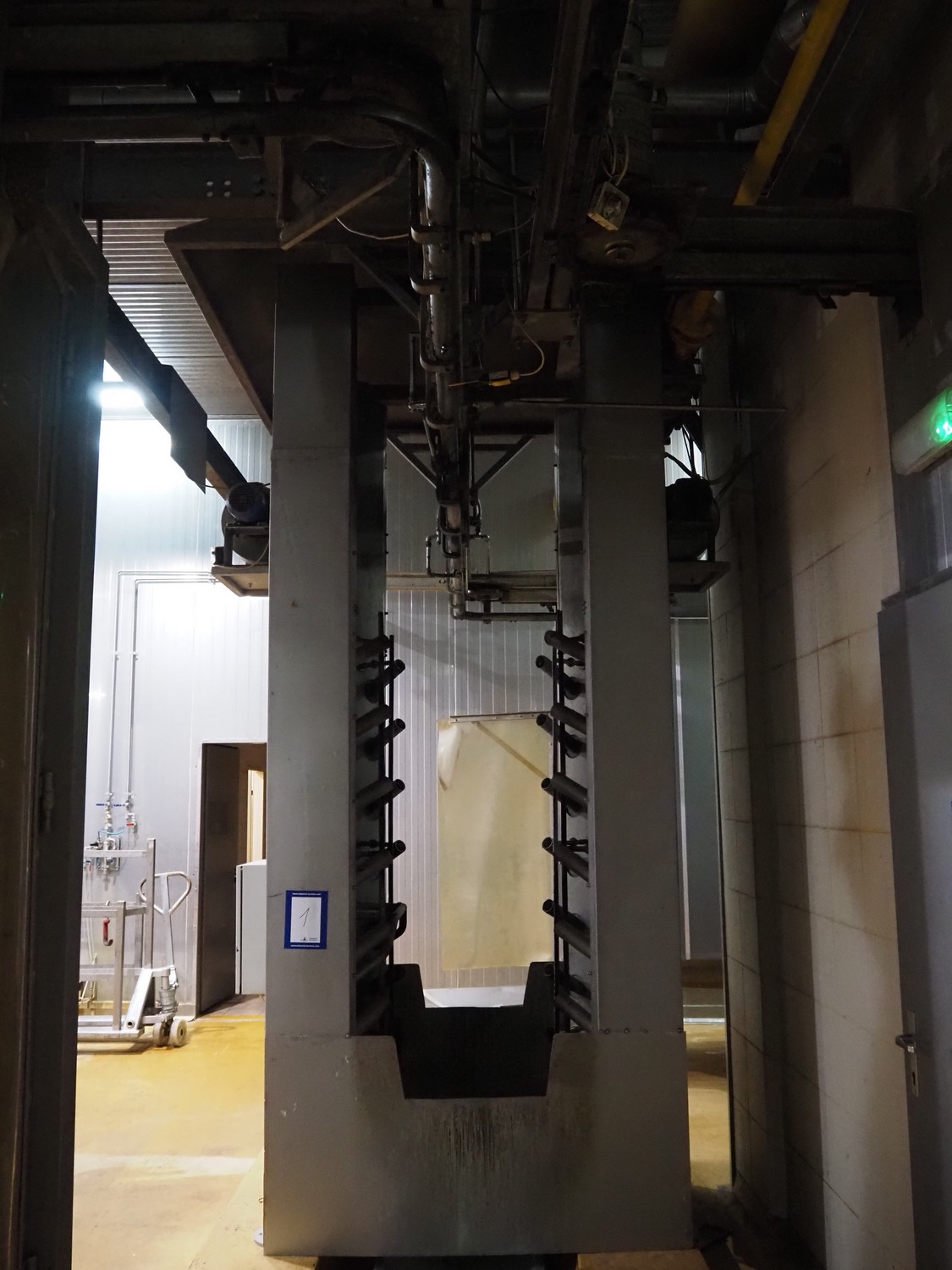

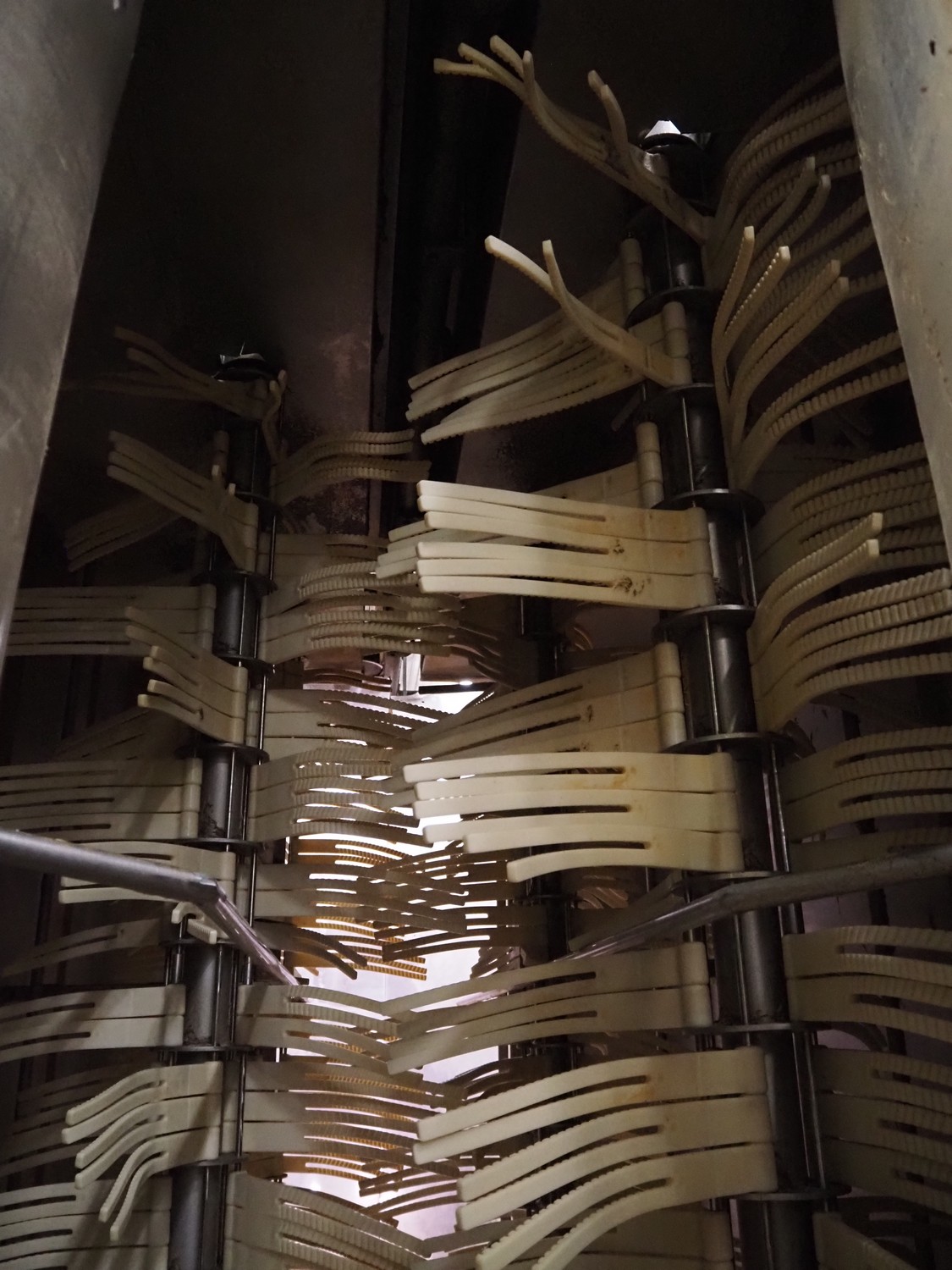

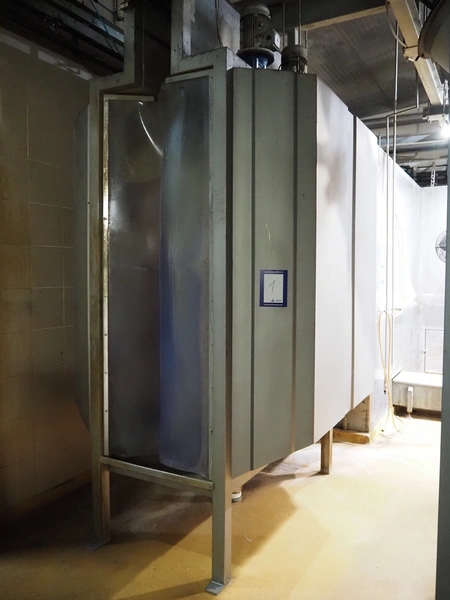

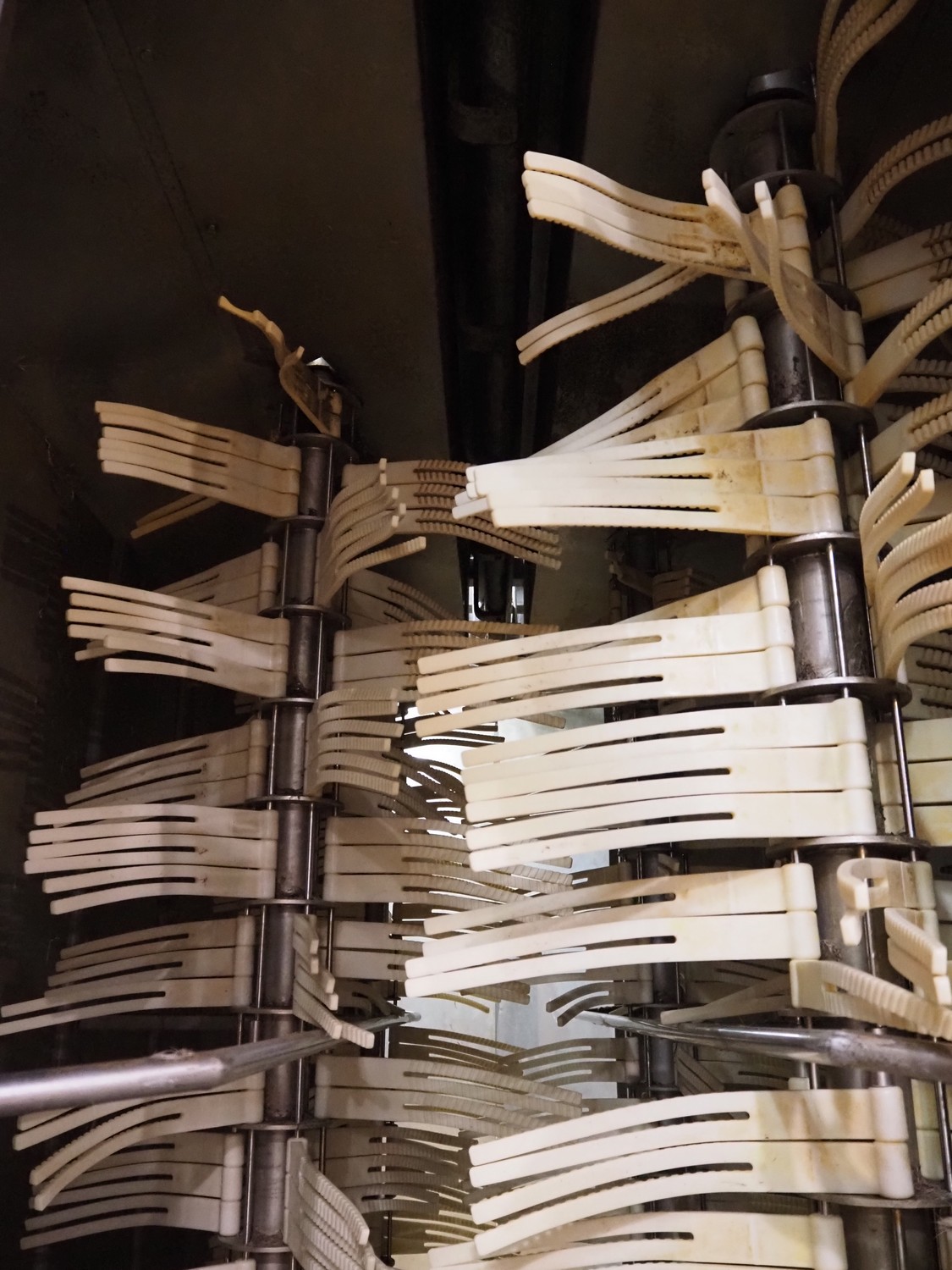

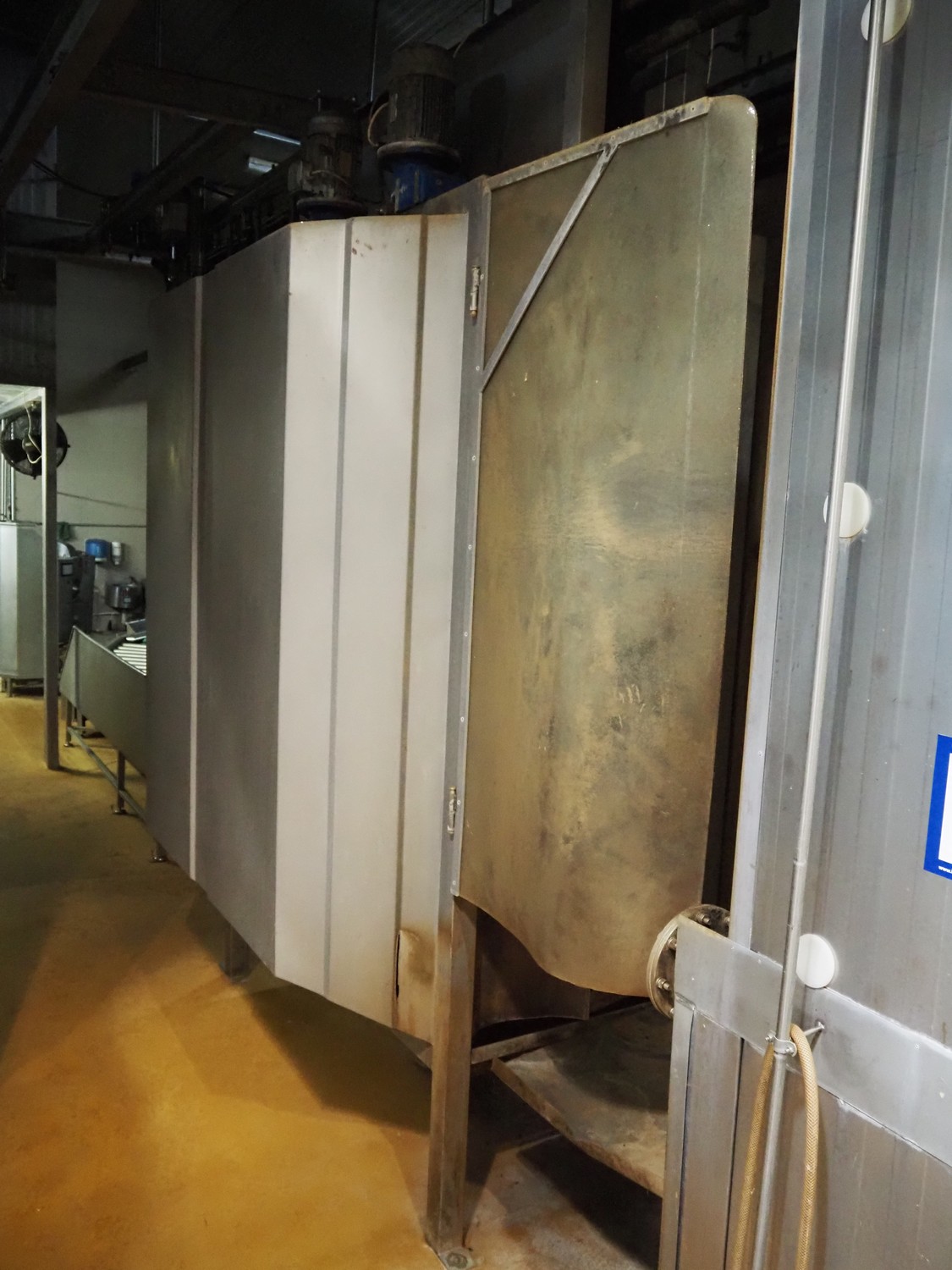

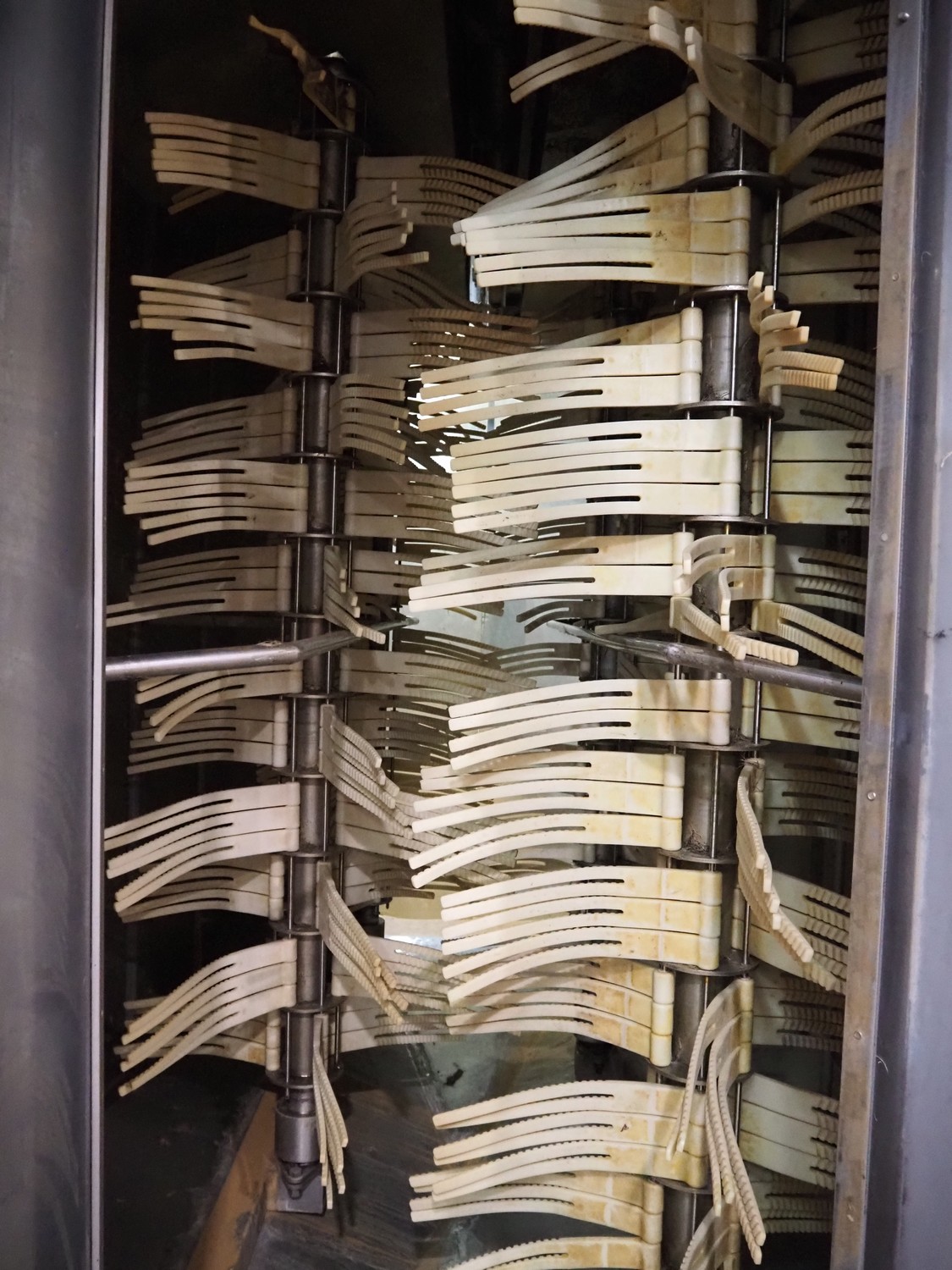

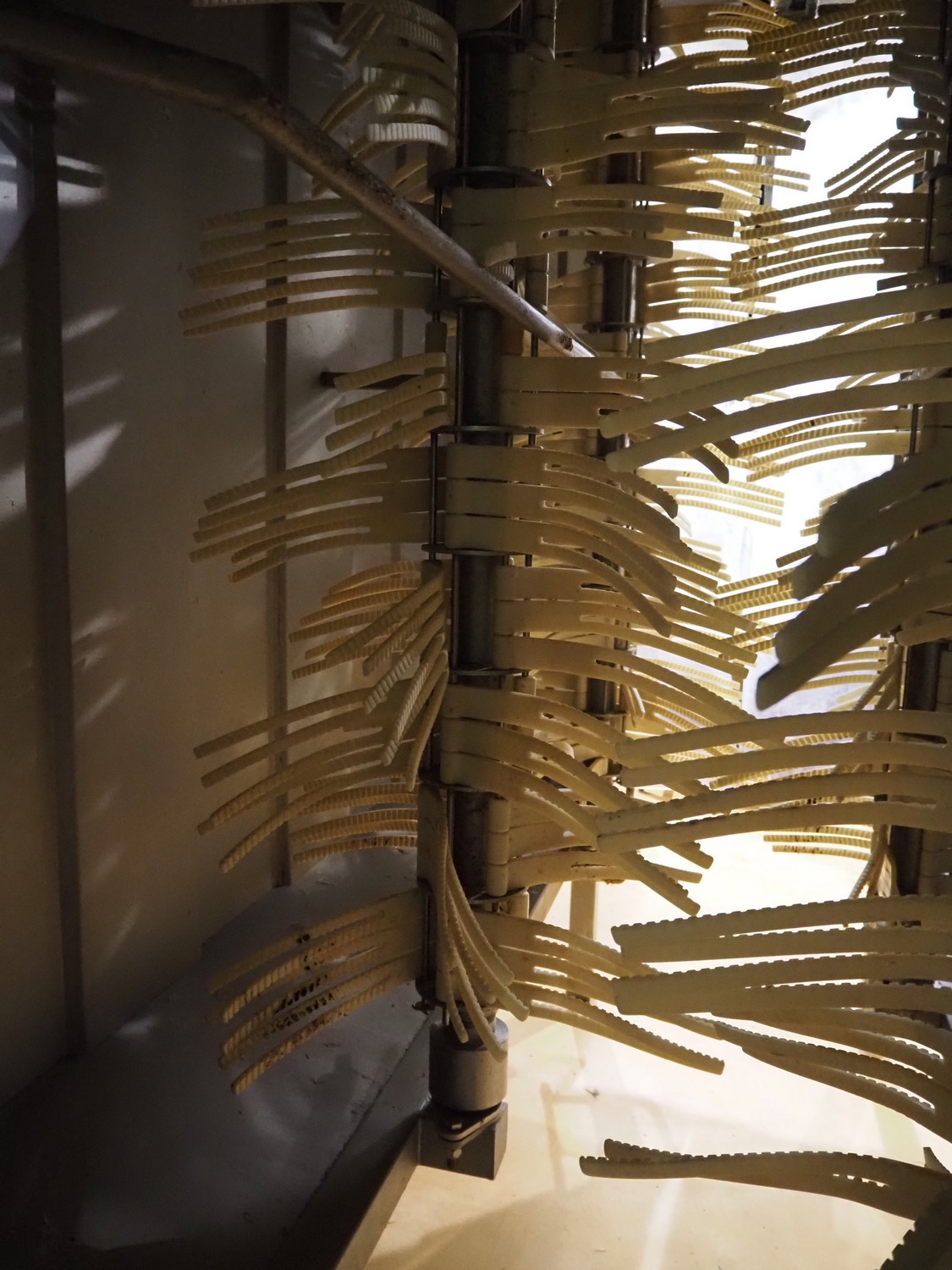

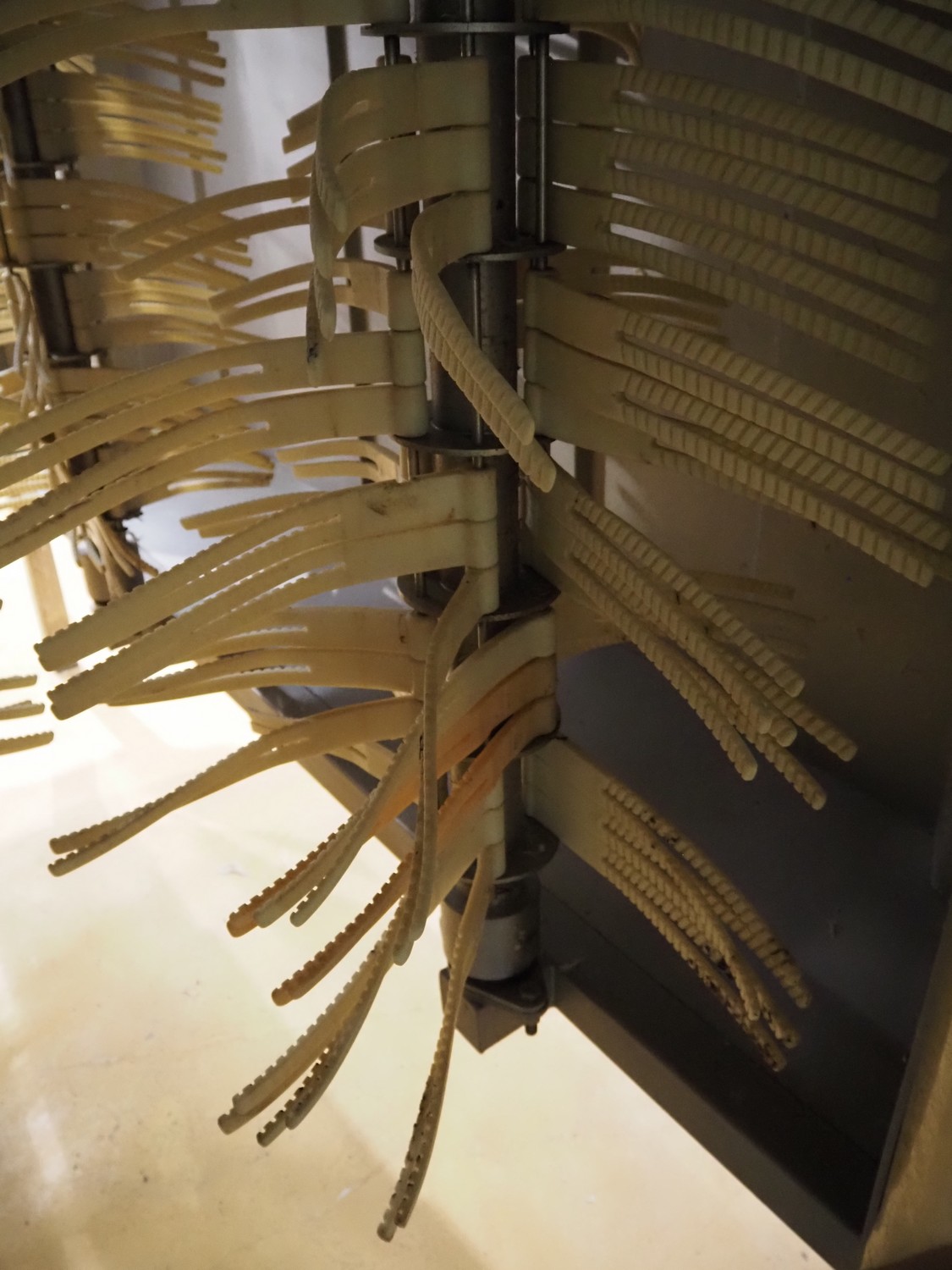

- Whip washer with 3 vertical whip cylinders, dimensions: 2000 mm x 1950 mm x 3600 mm.

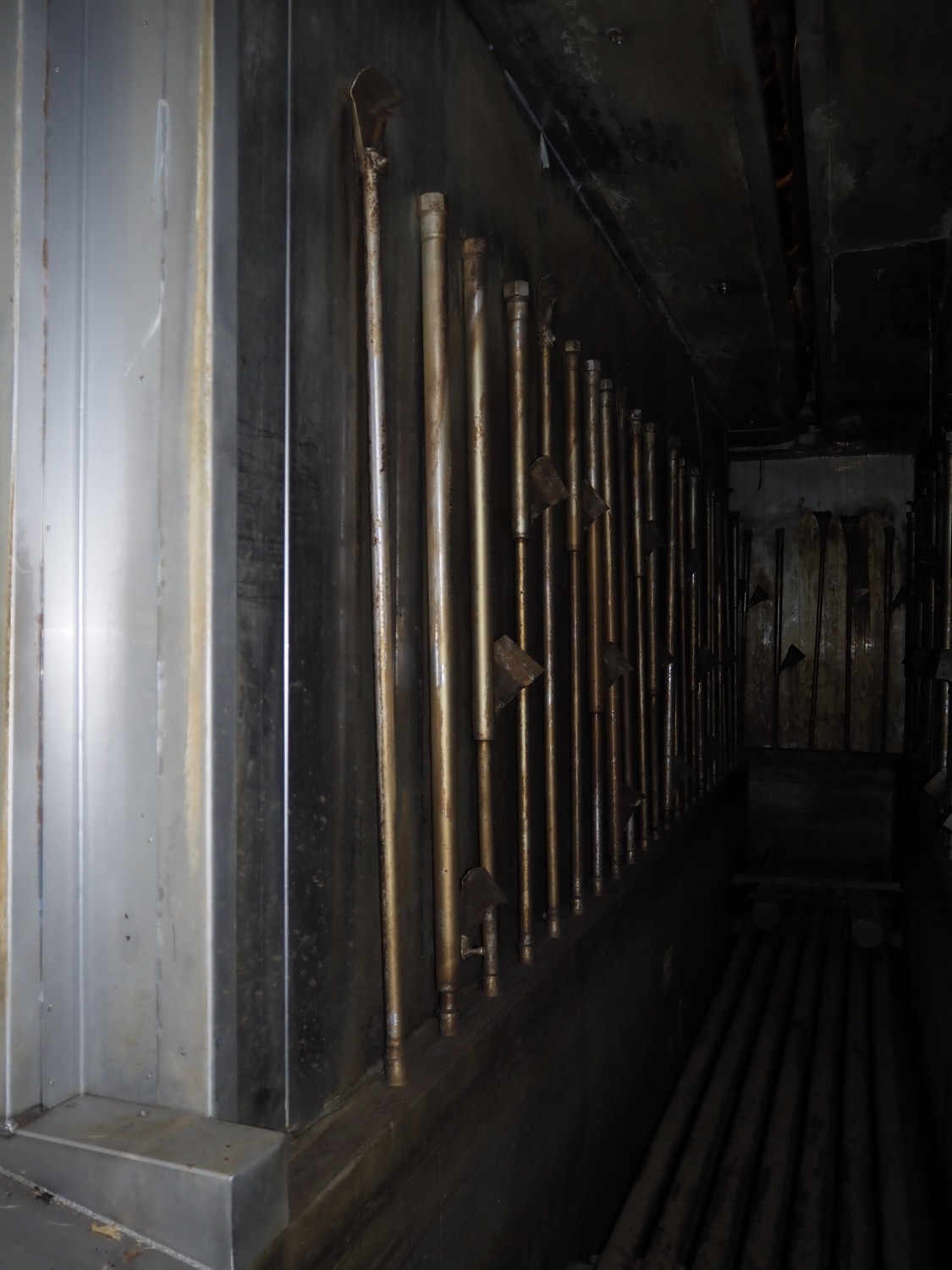

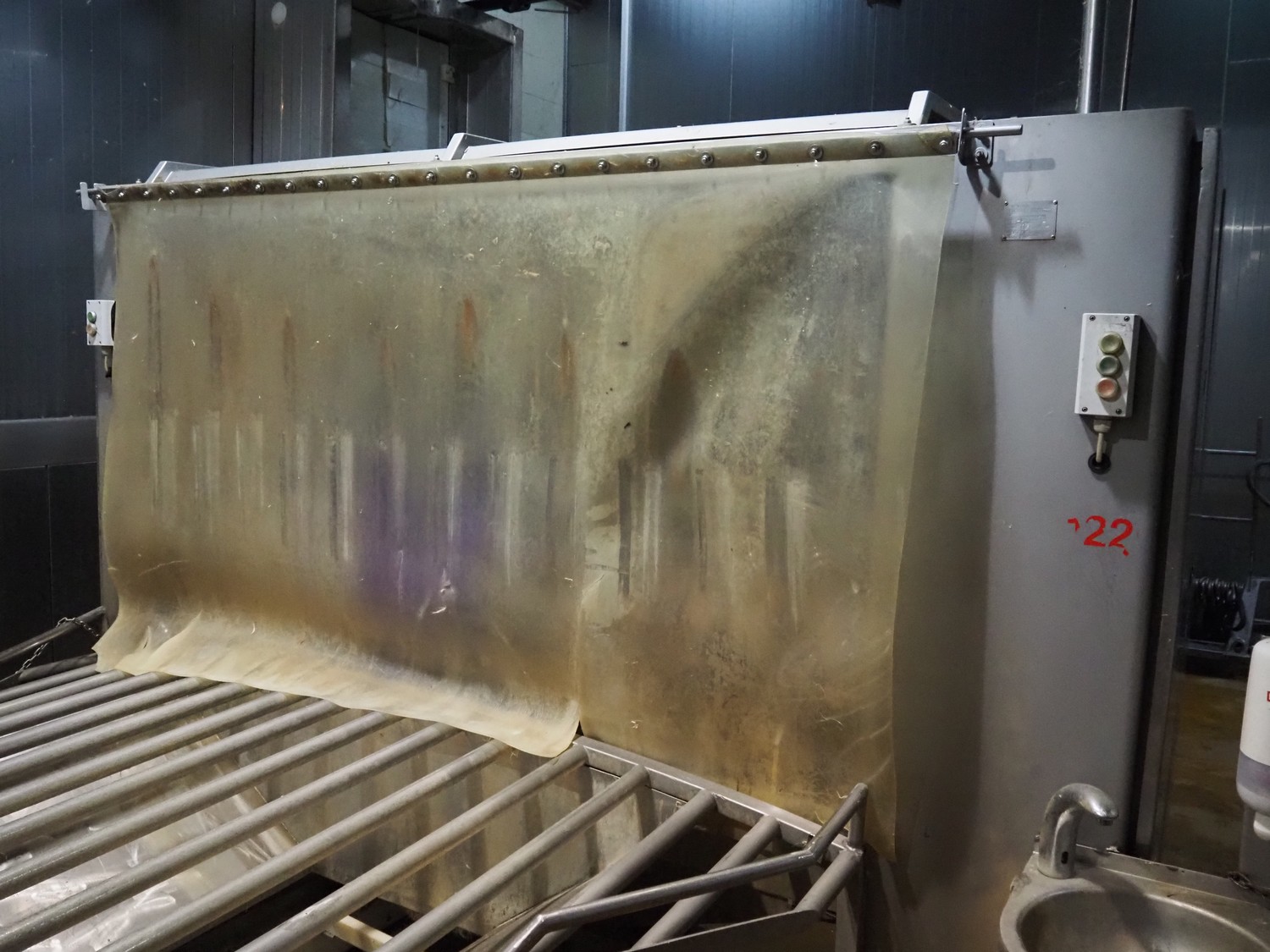

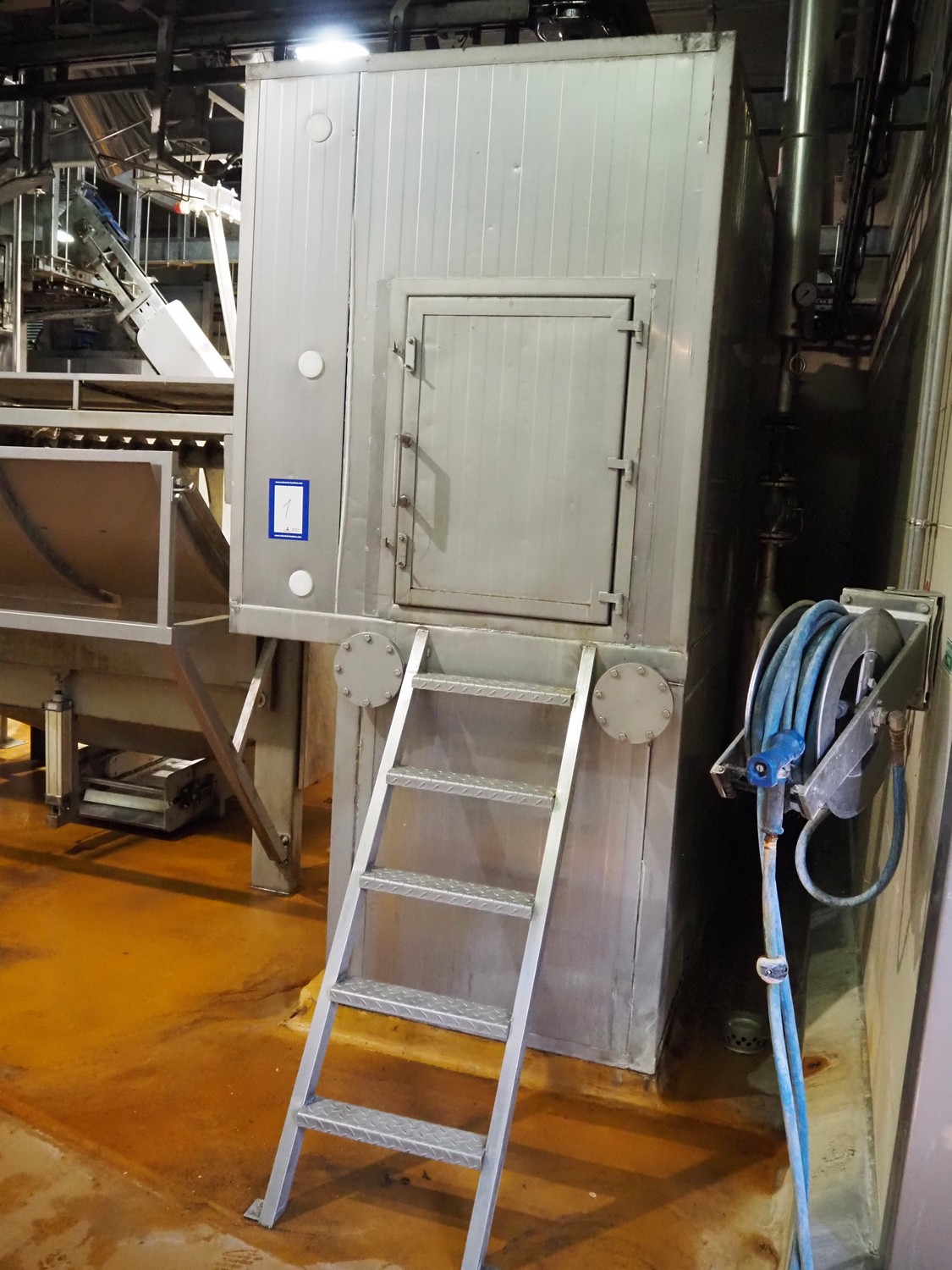

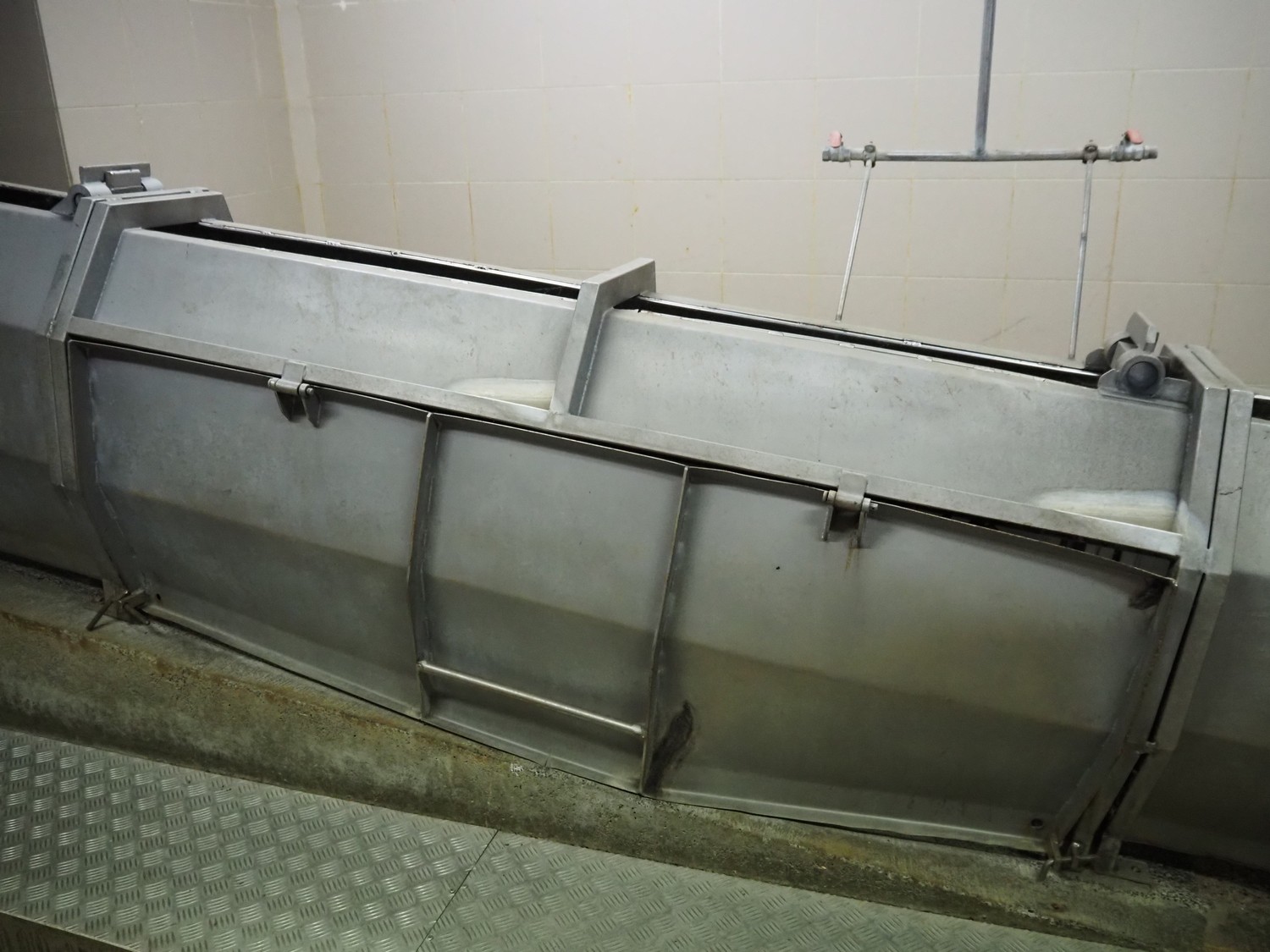

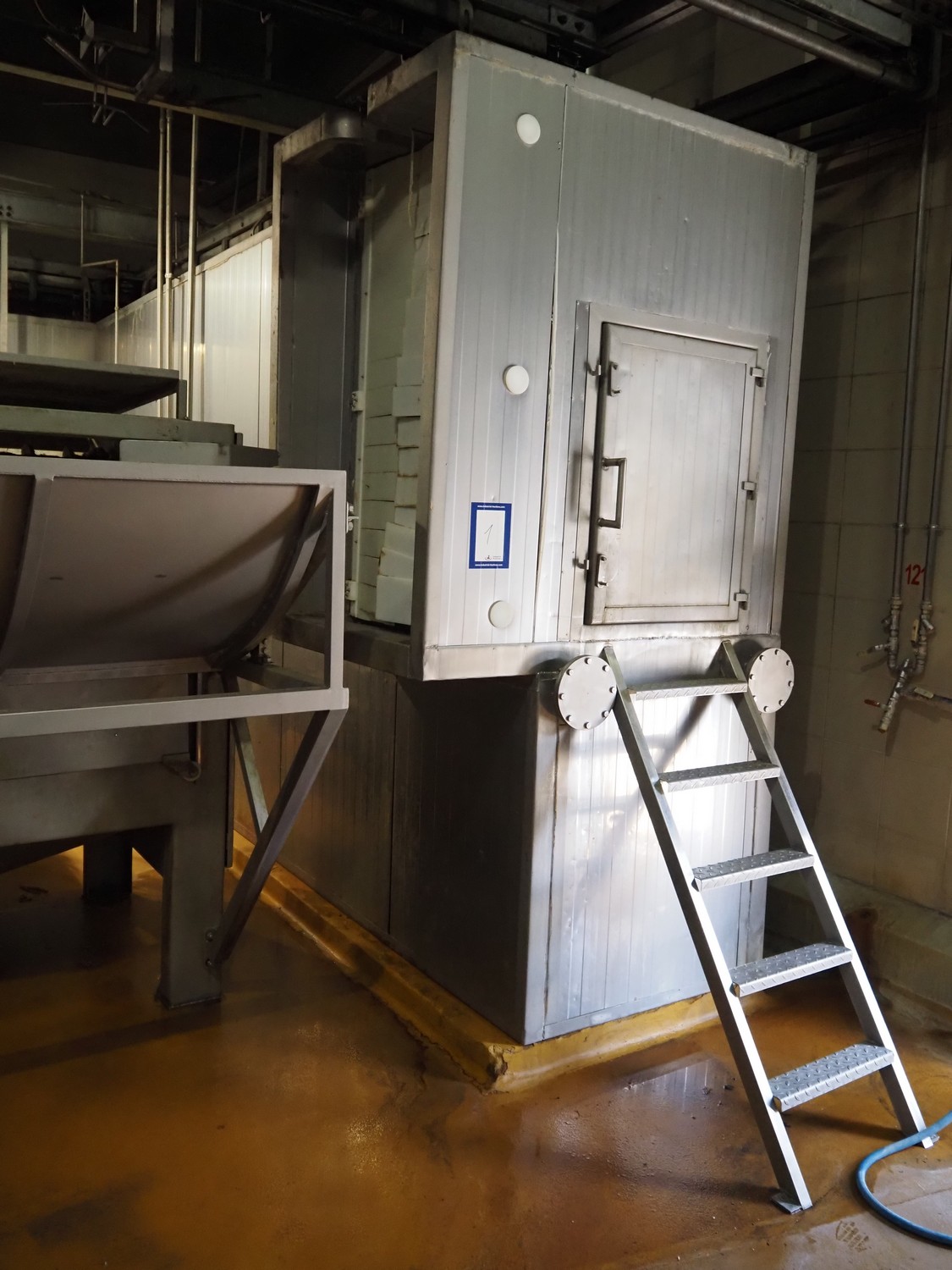

- Scalding tunnel, type: OP-3PW, number: 77/09. year of construction: 2009, 400/230 V, 50 Hz, 4x 1.5 kW, steam heated, dimensions: 6800 mm x 4500 mm x 3100 mm.

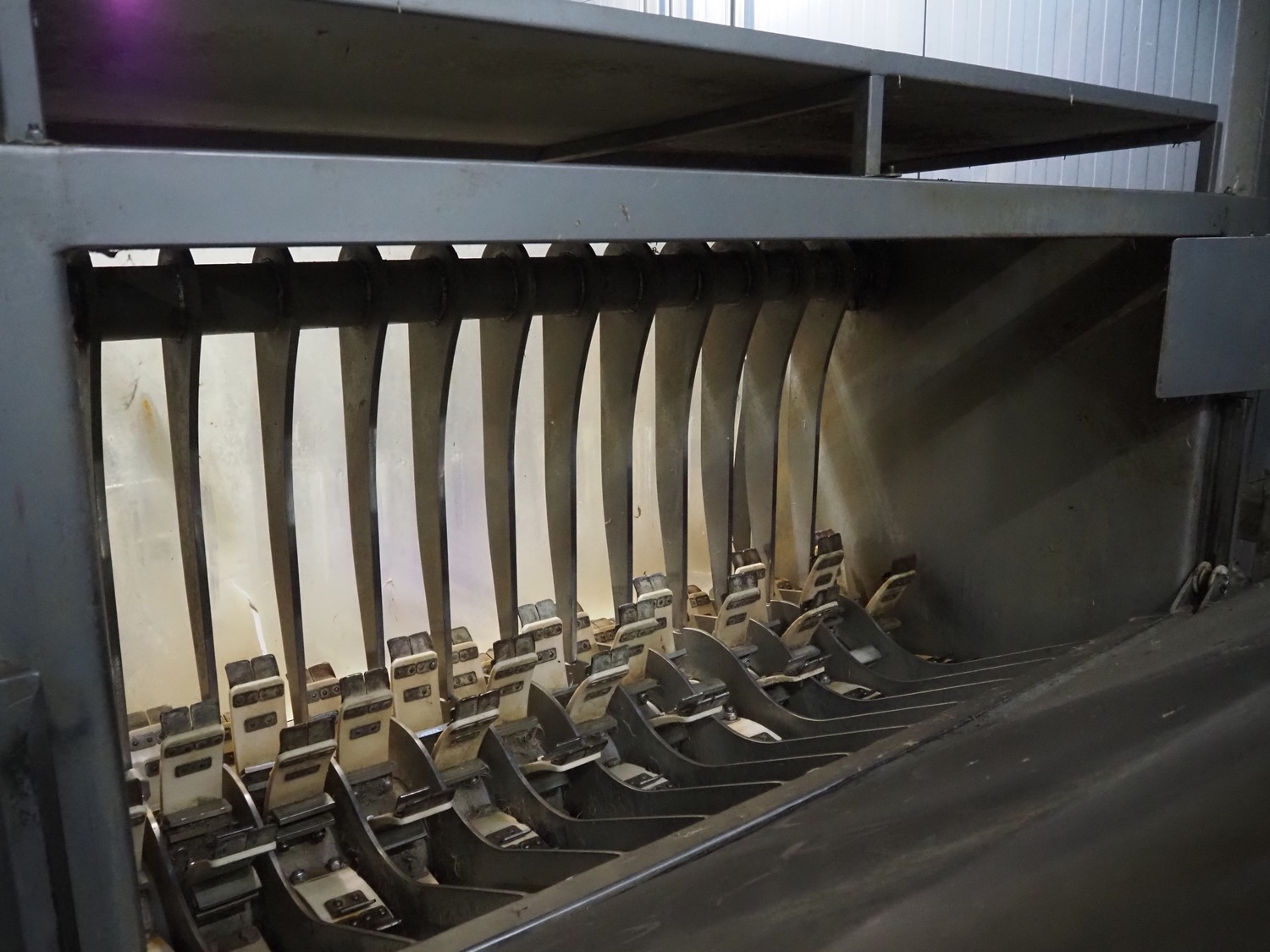

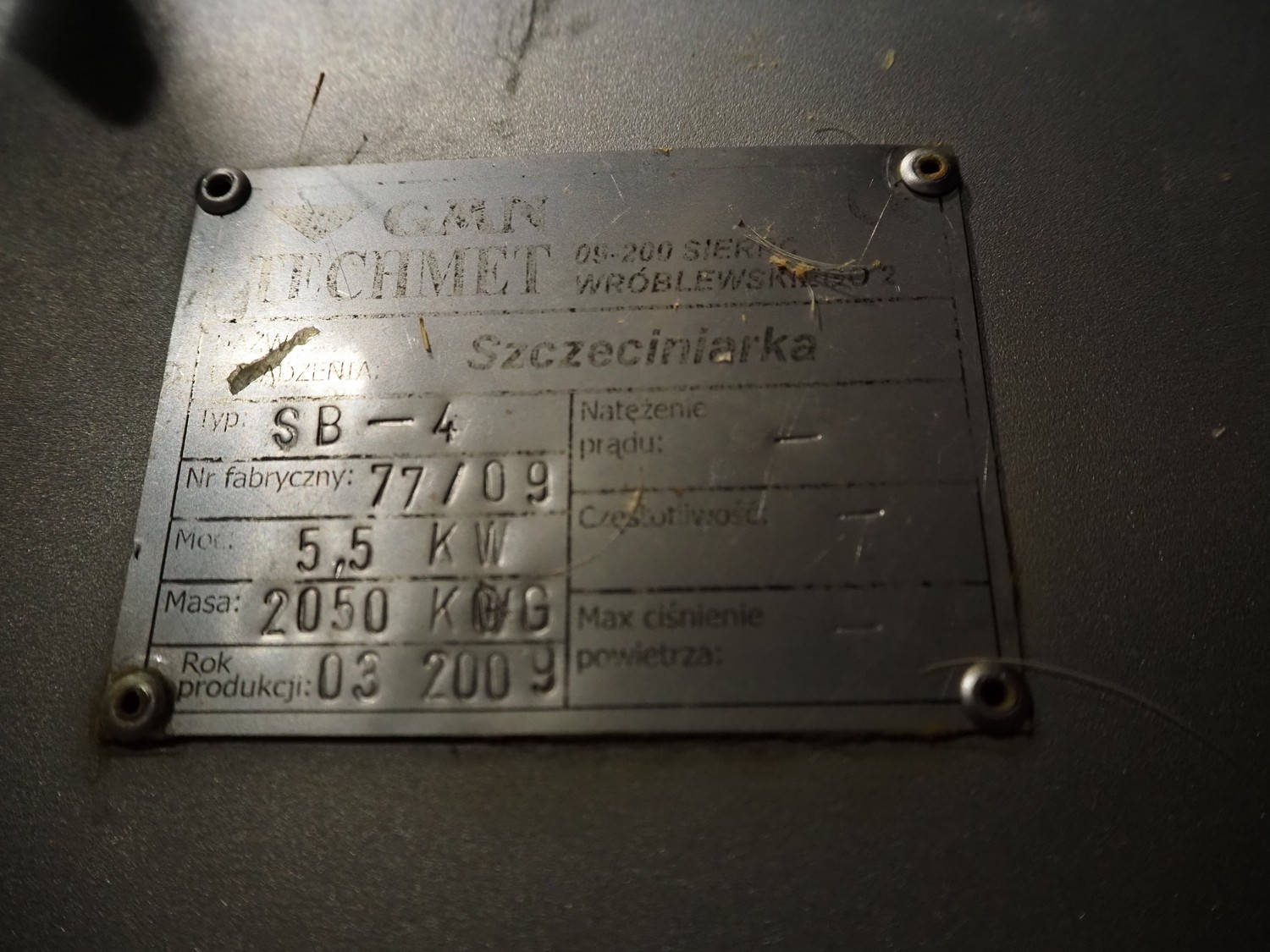

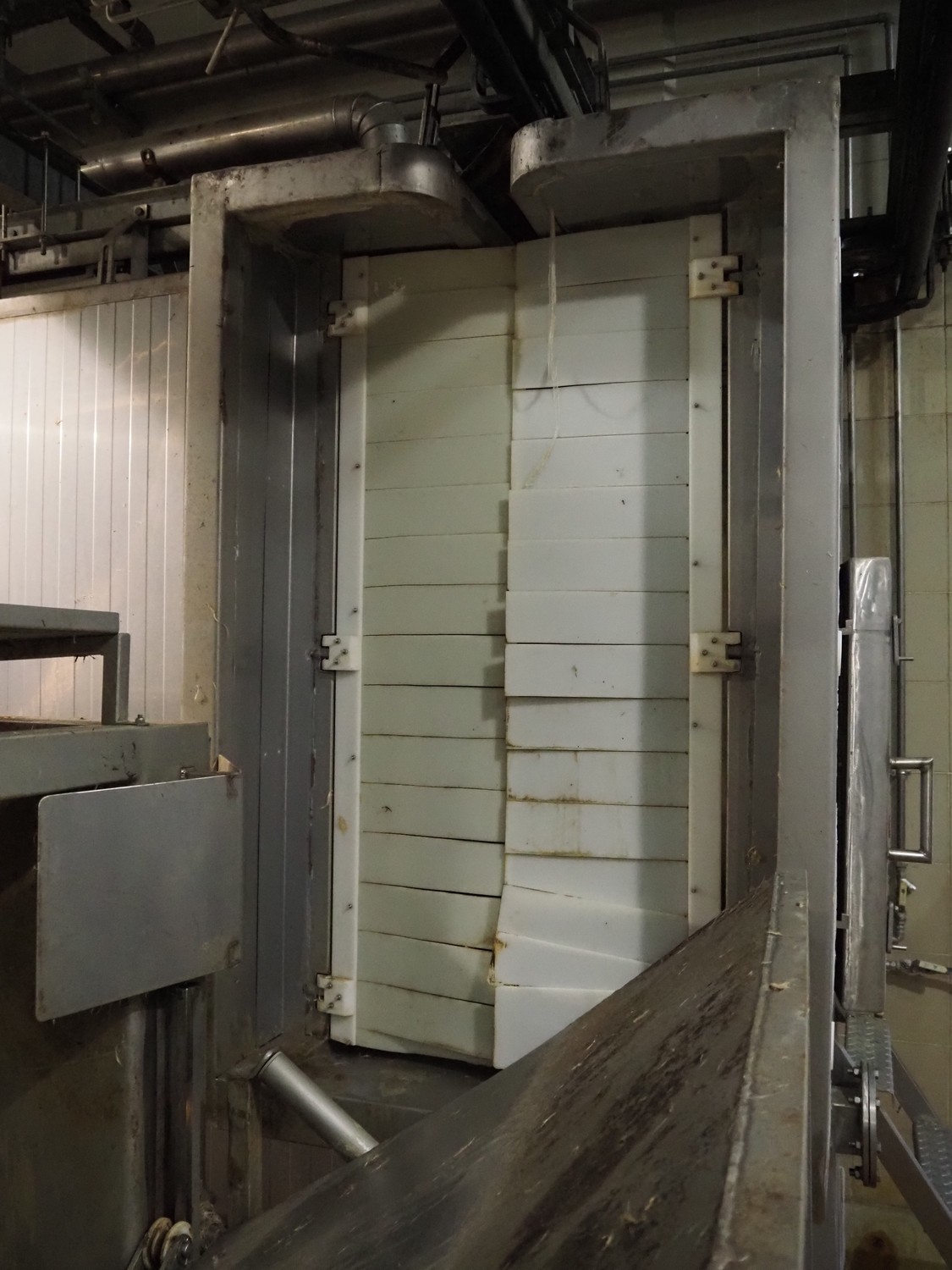

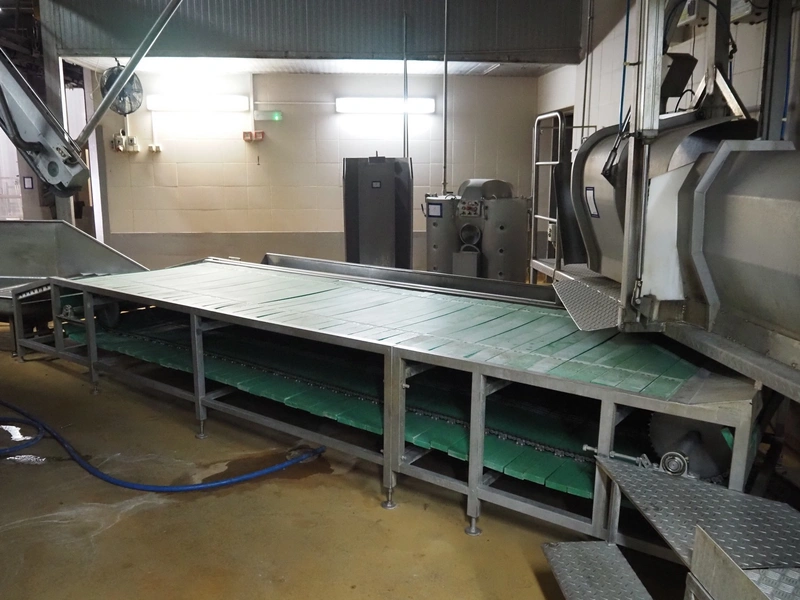

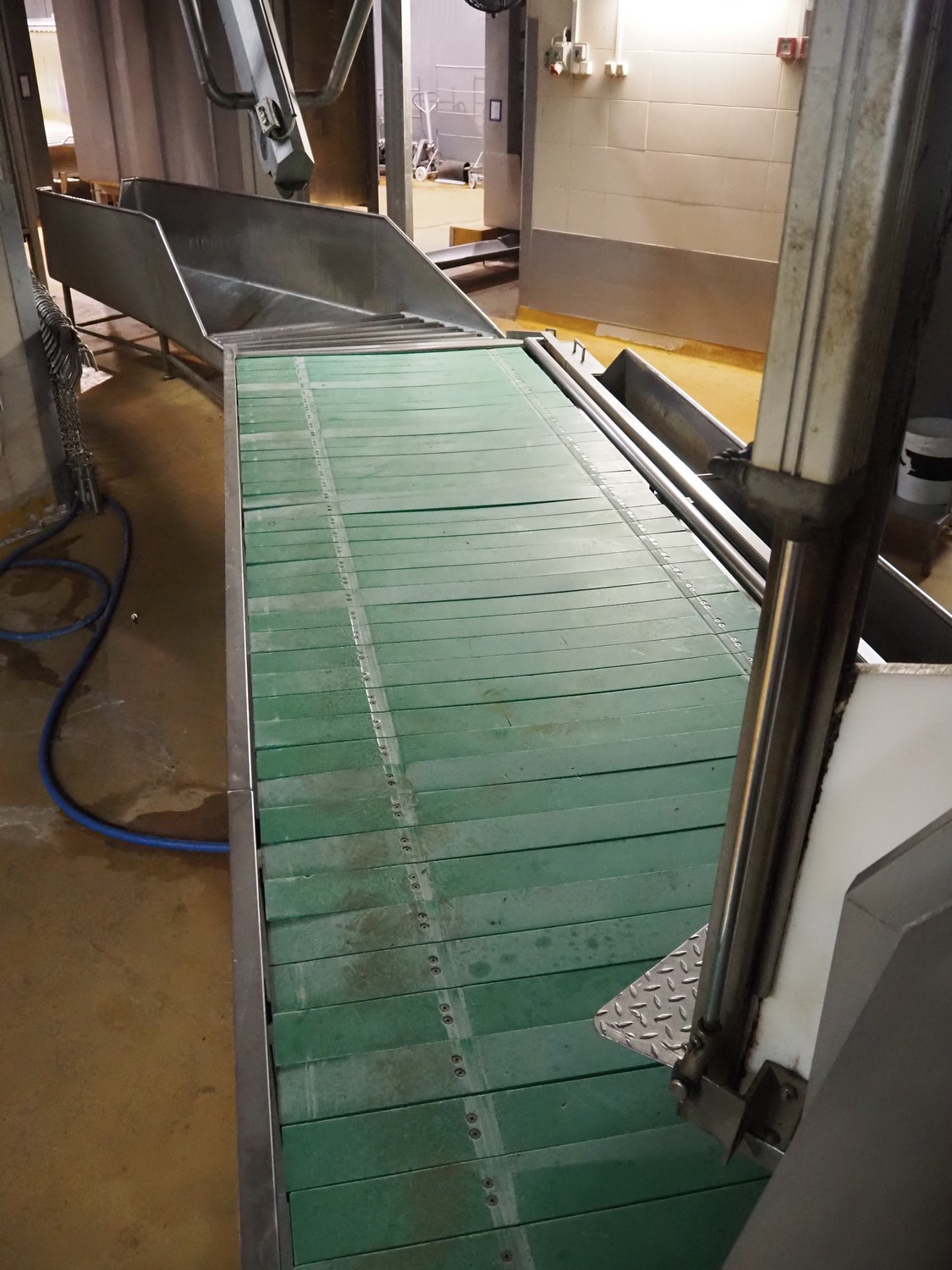

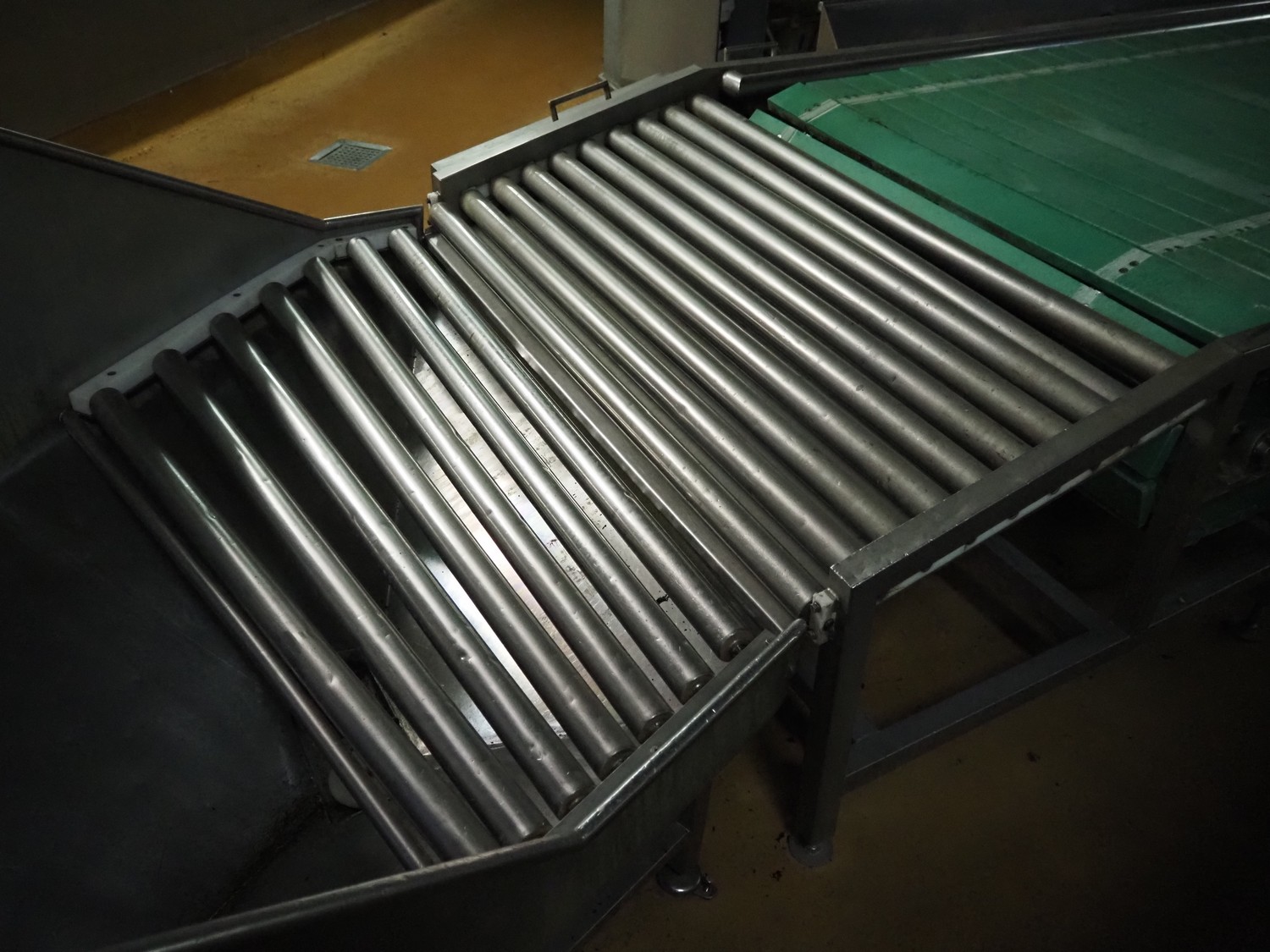

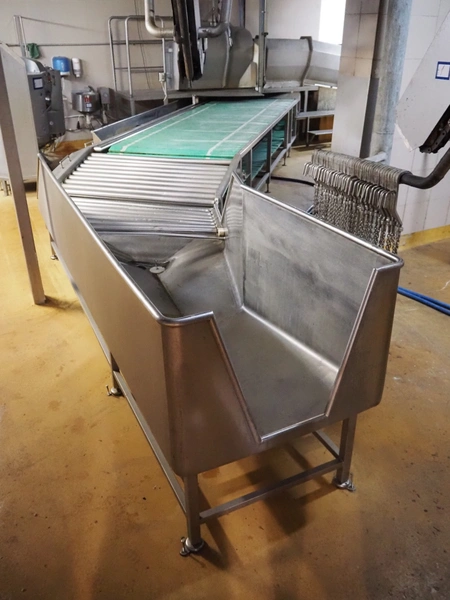

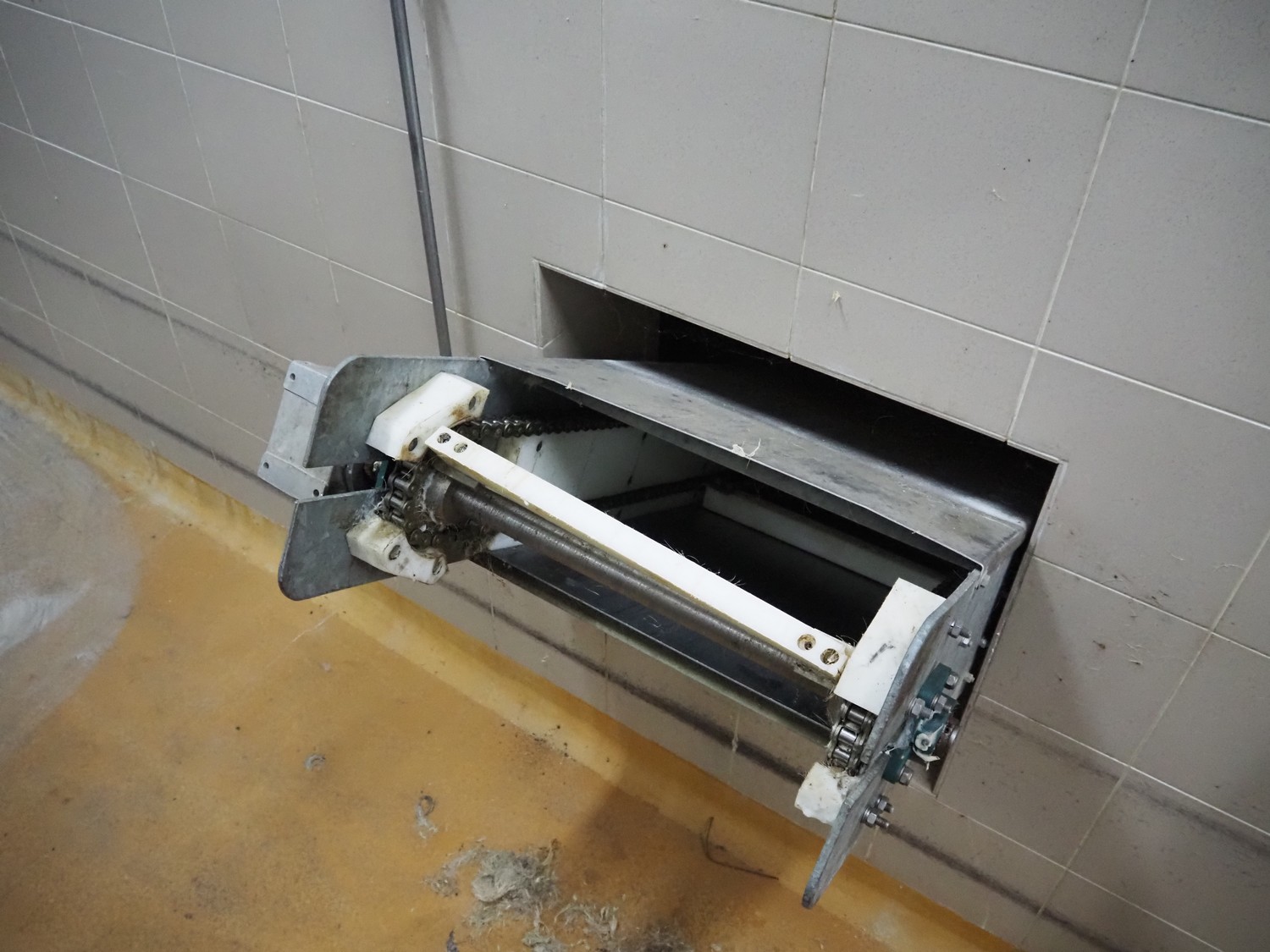

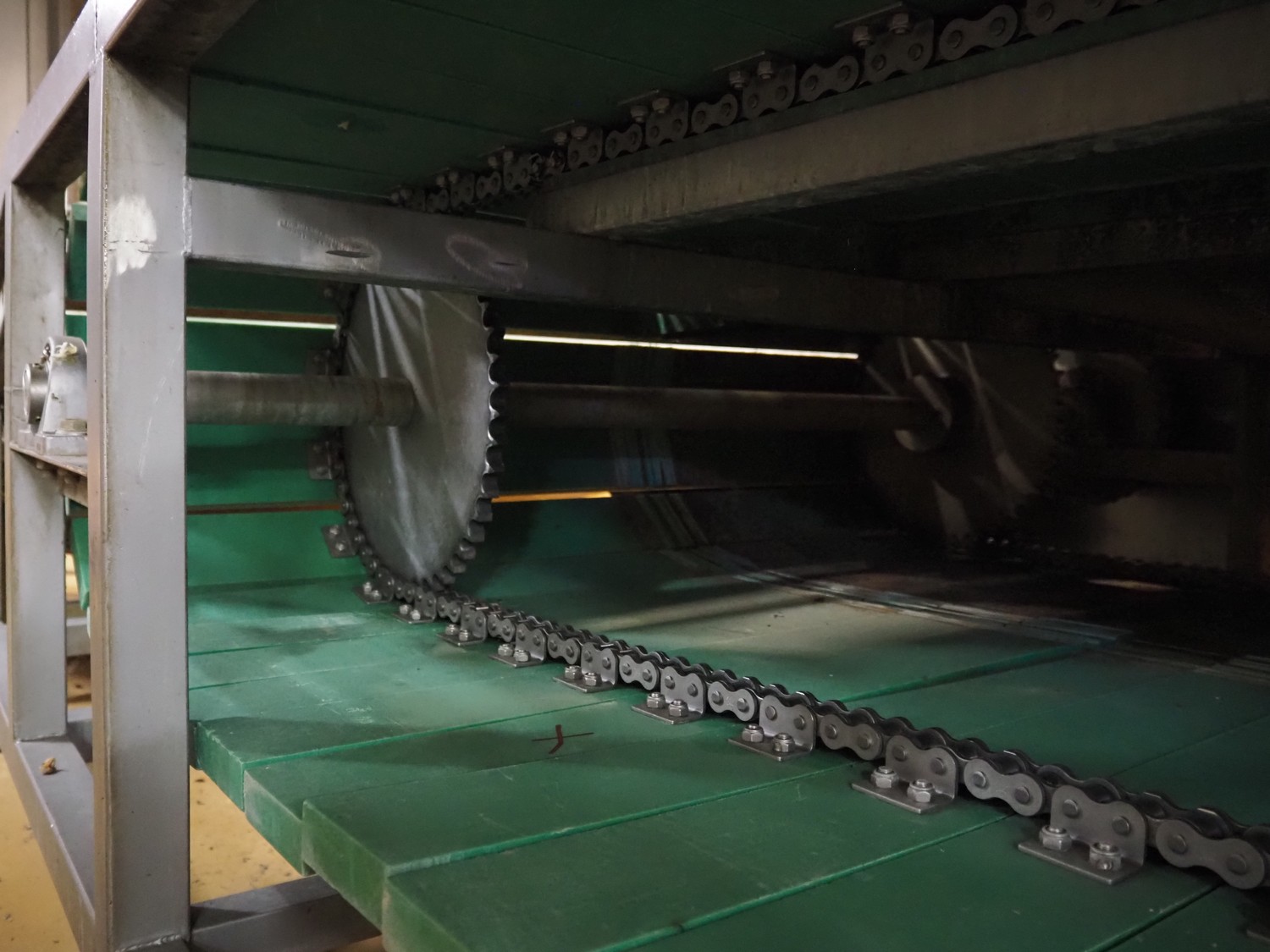

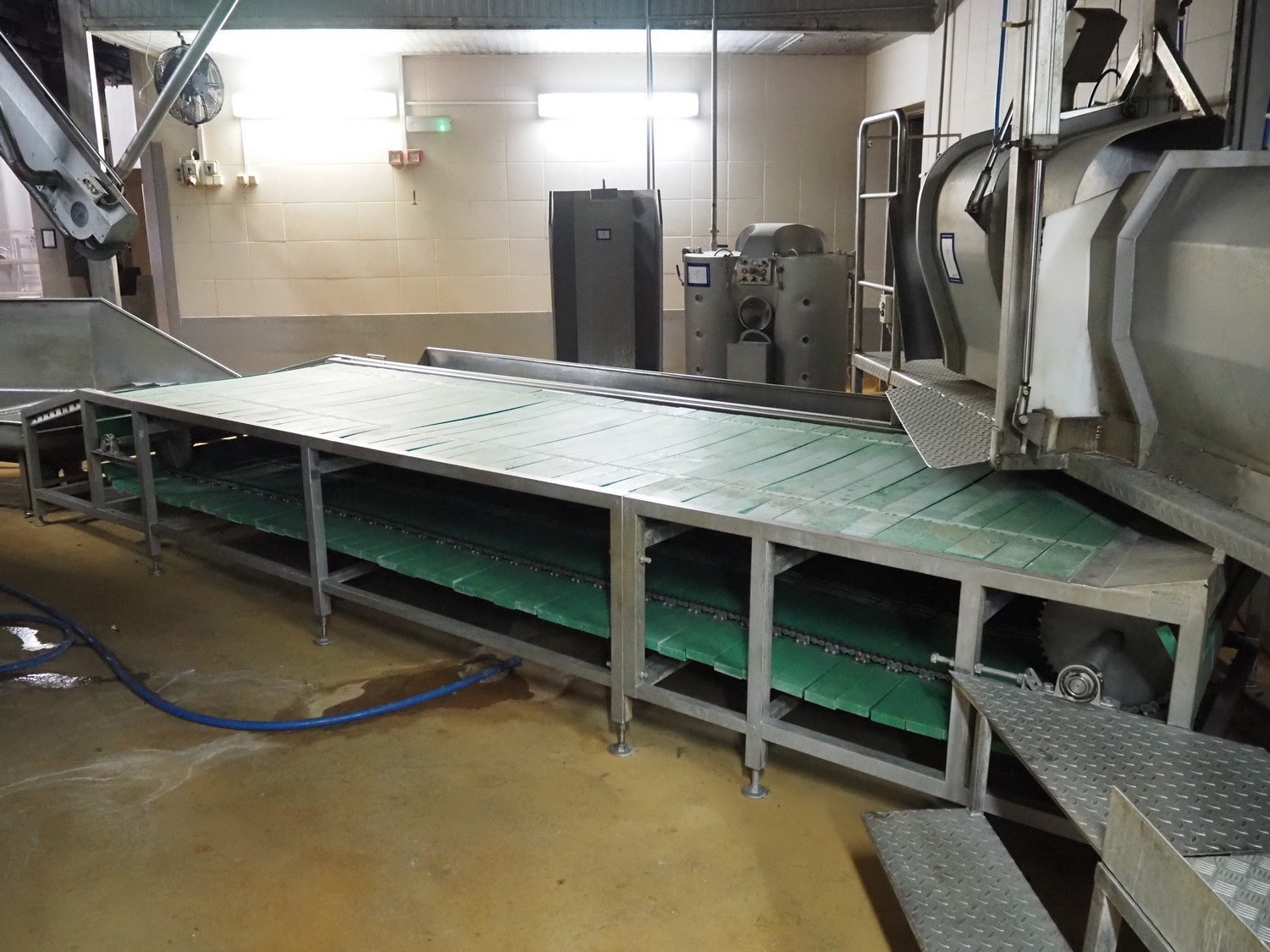

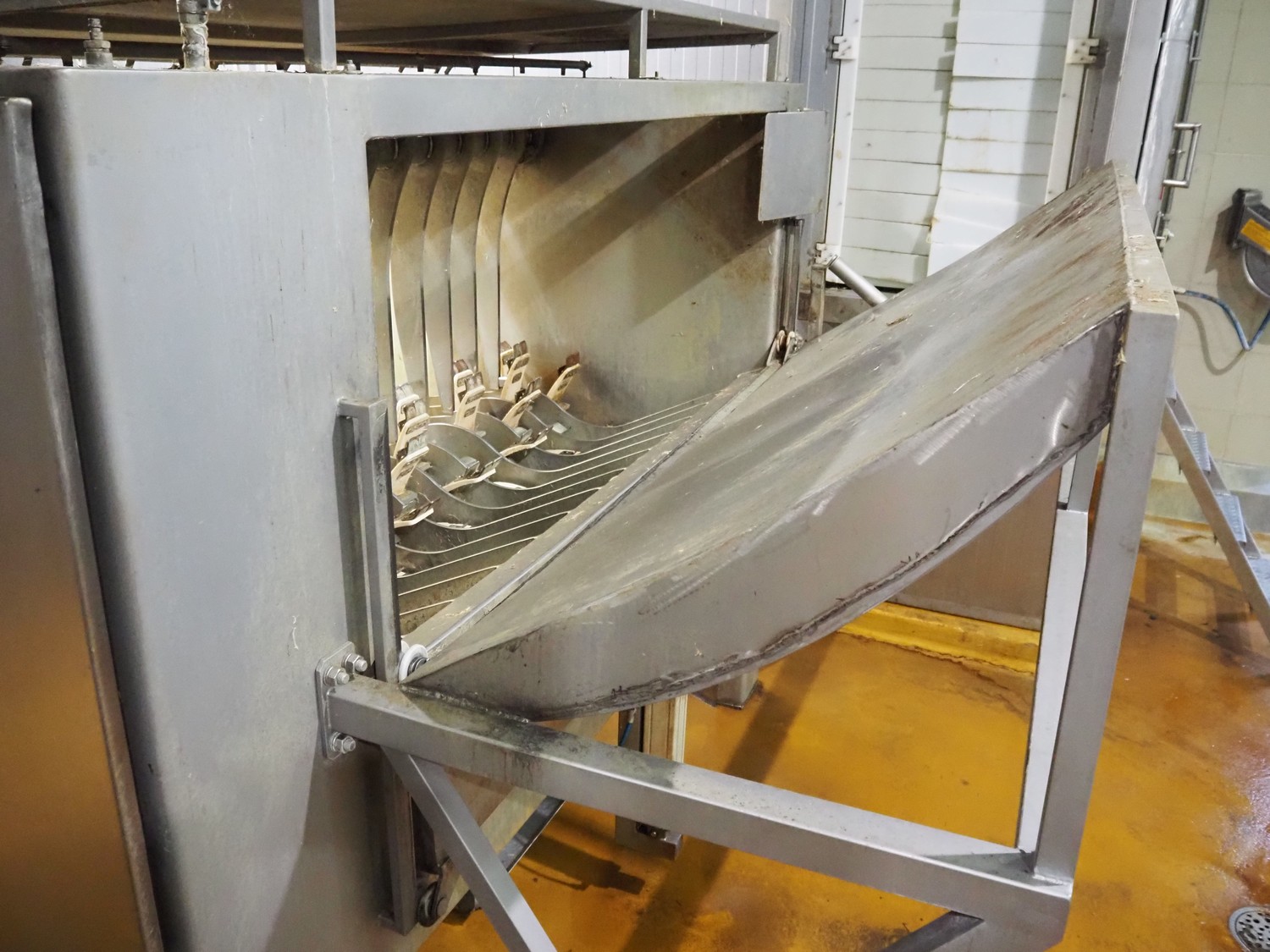

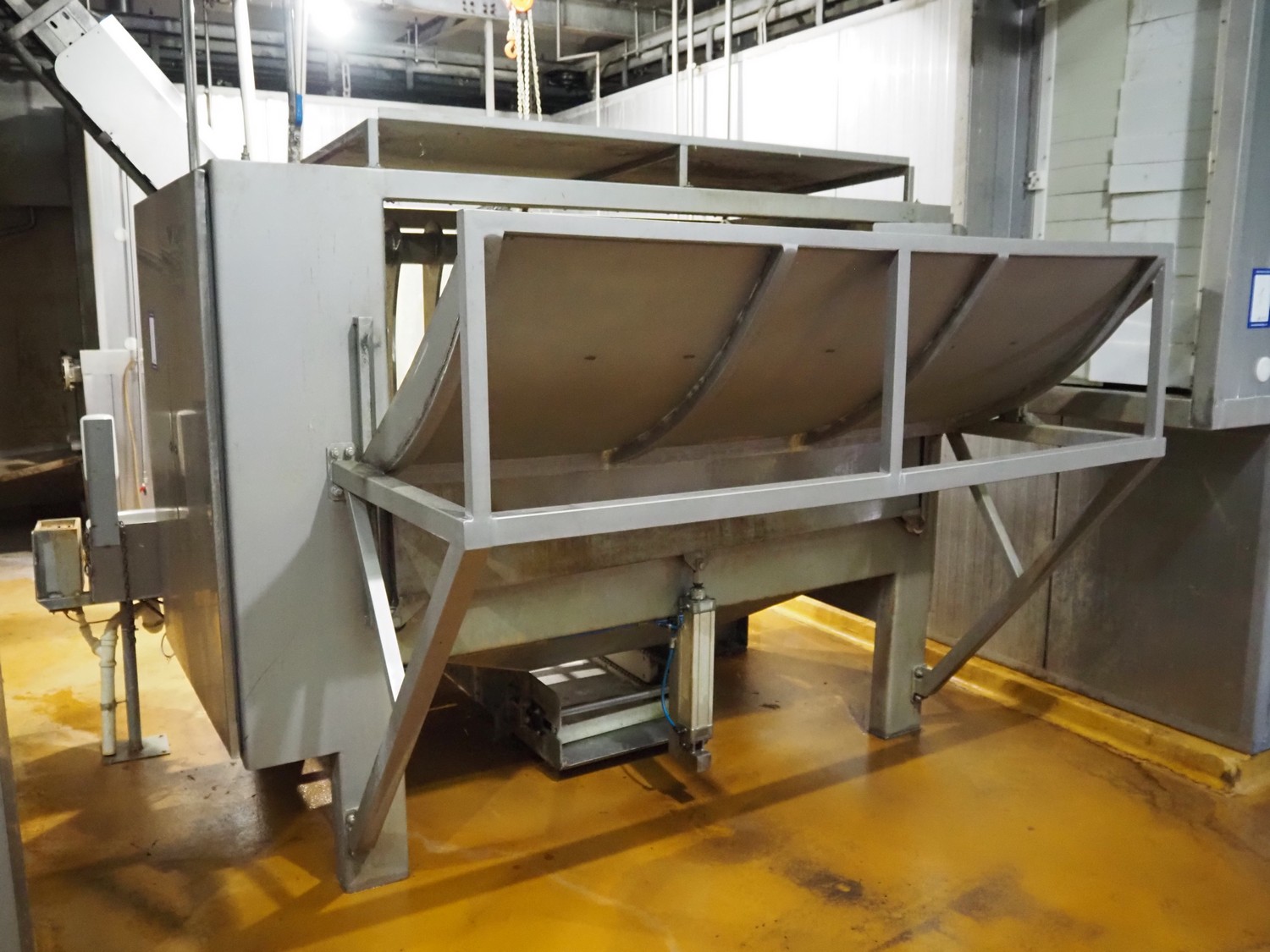

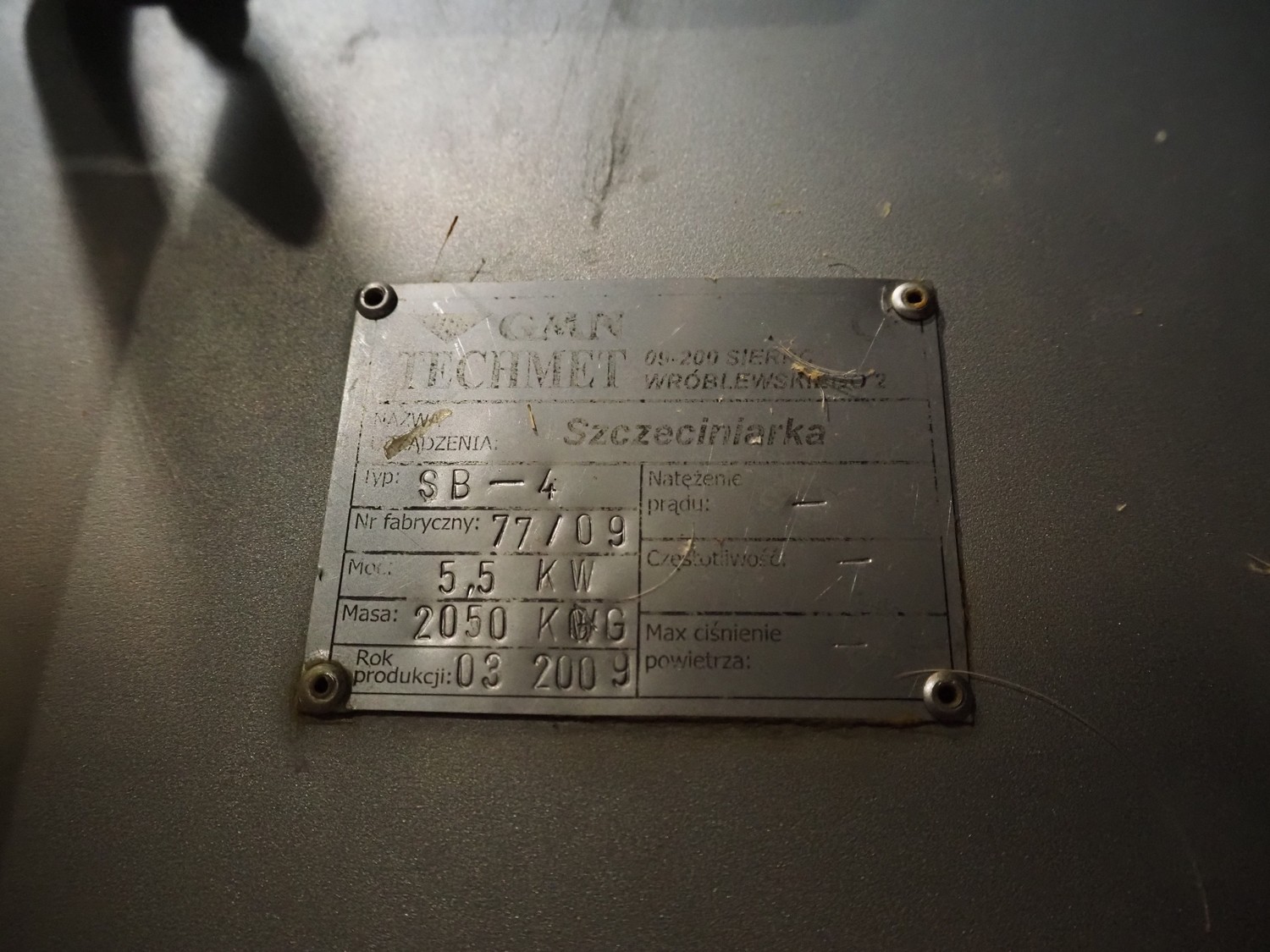

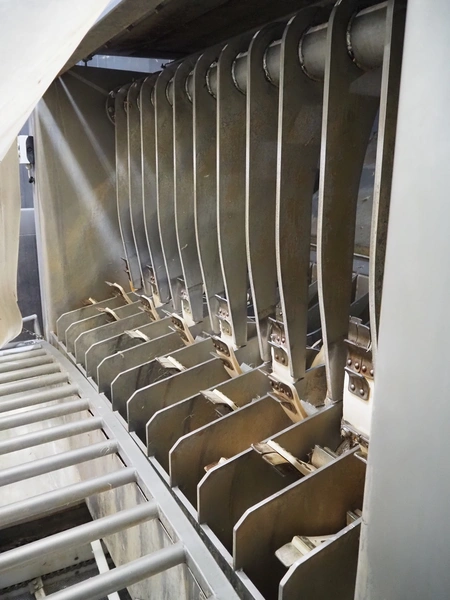

- Dehairing machine with outfeed table and outfeed chain conveyor for hairs, model: SB-4, serial number: 77/09, year of construction: 03/2009, 5.5 kW, 2050 kg, dimensions: 4300 mm x 2720 mm x 2200 mm, belt width chain conveyor: 630 mm, dimensions: 6200 mm x 850 mm x 1380 mm.

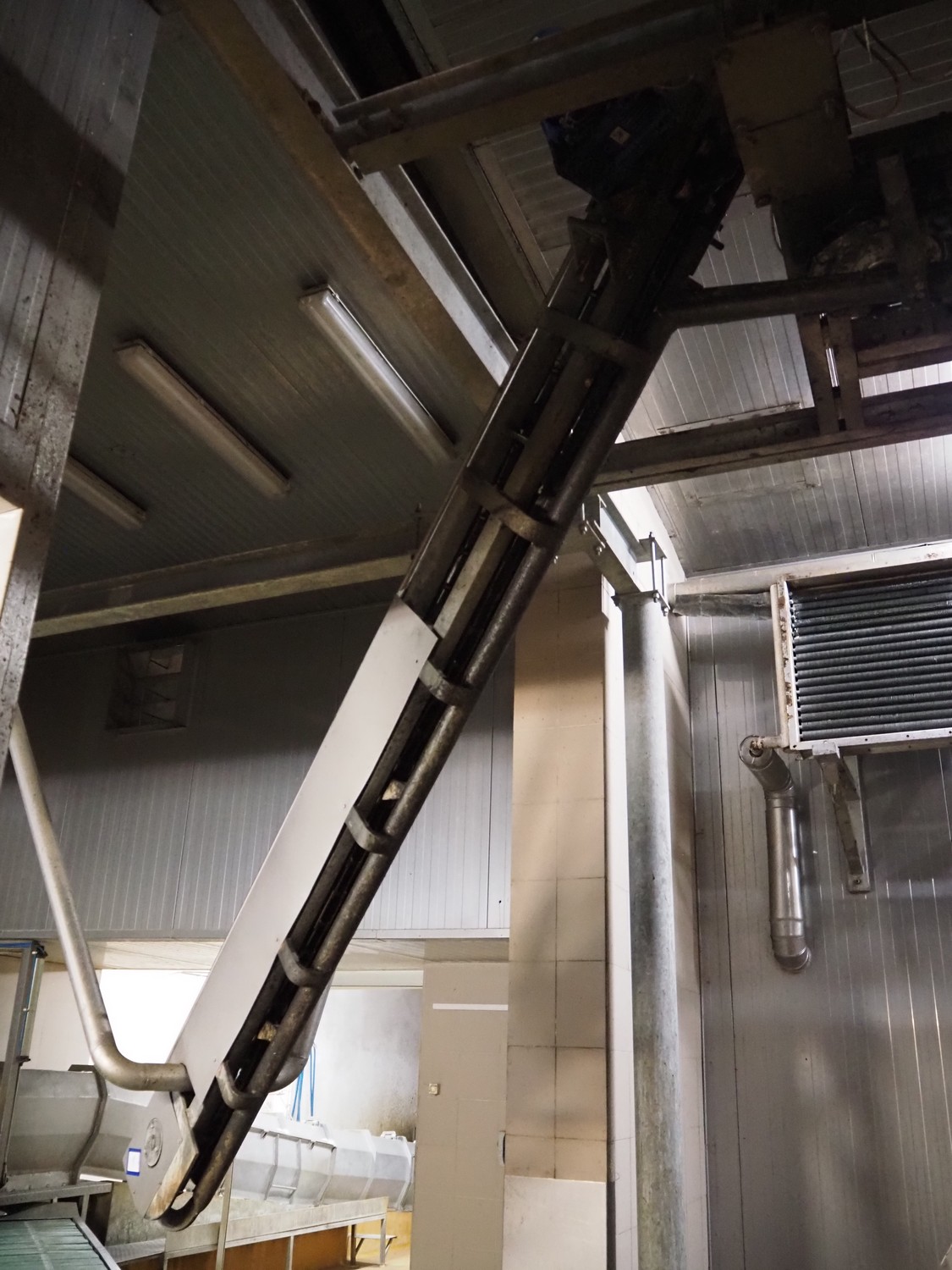

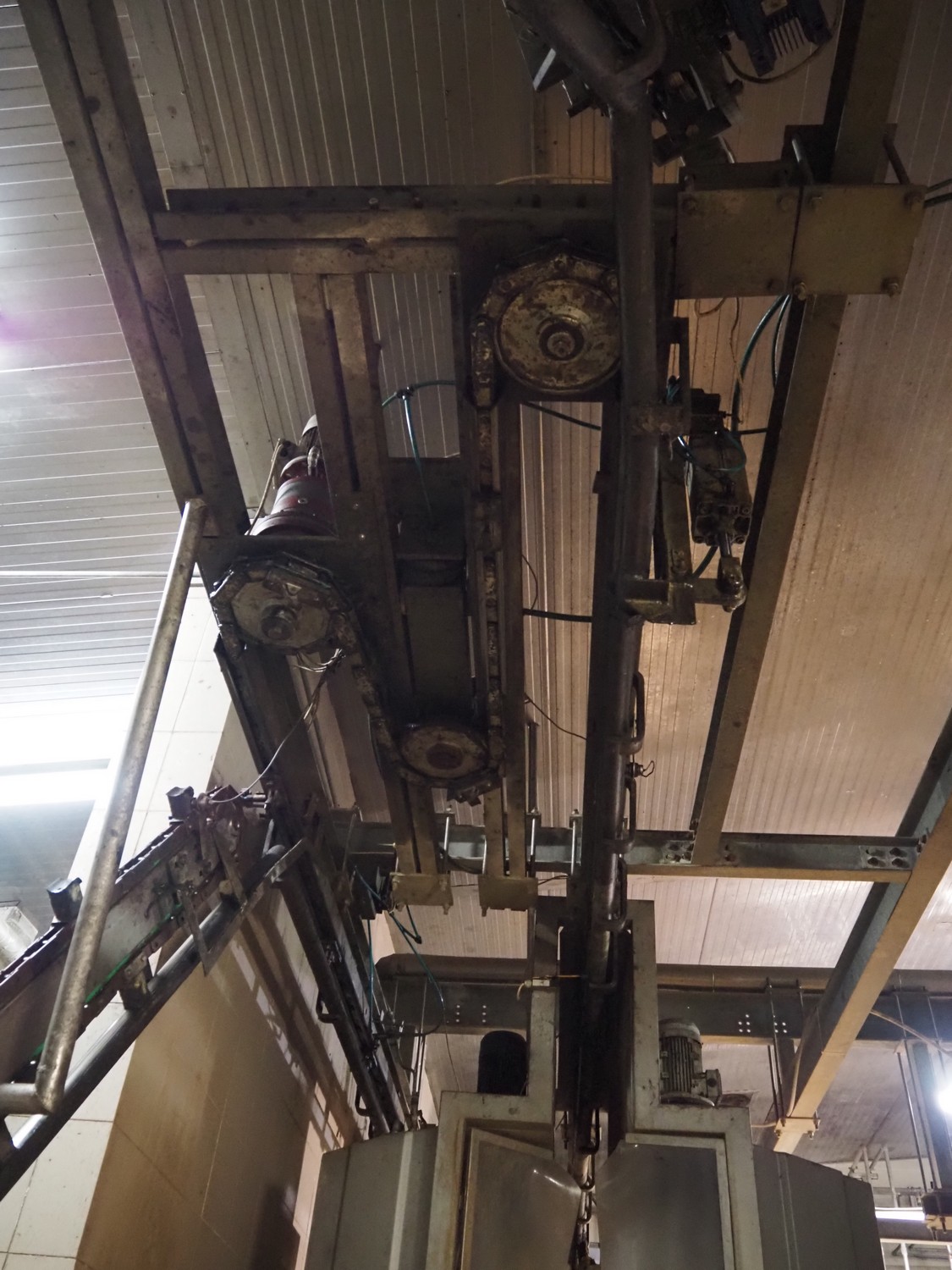

- Tube rail elevator, elevating height: 2000 mm, ø tube: 60 mm.

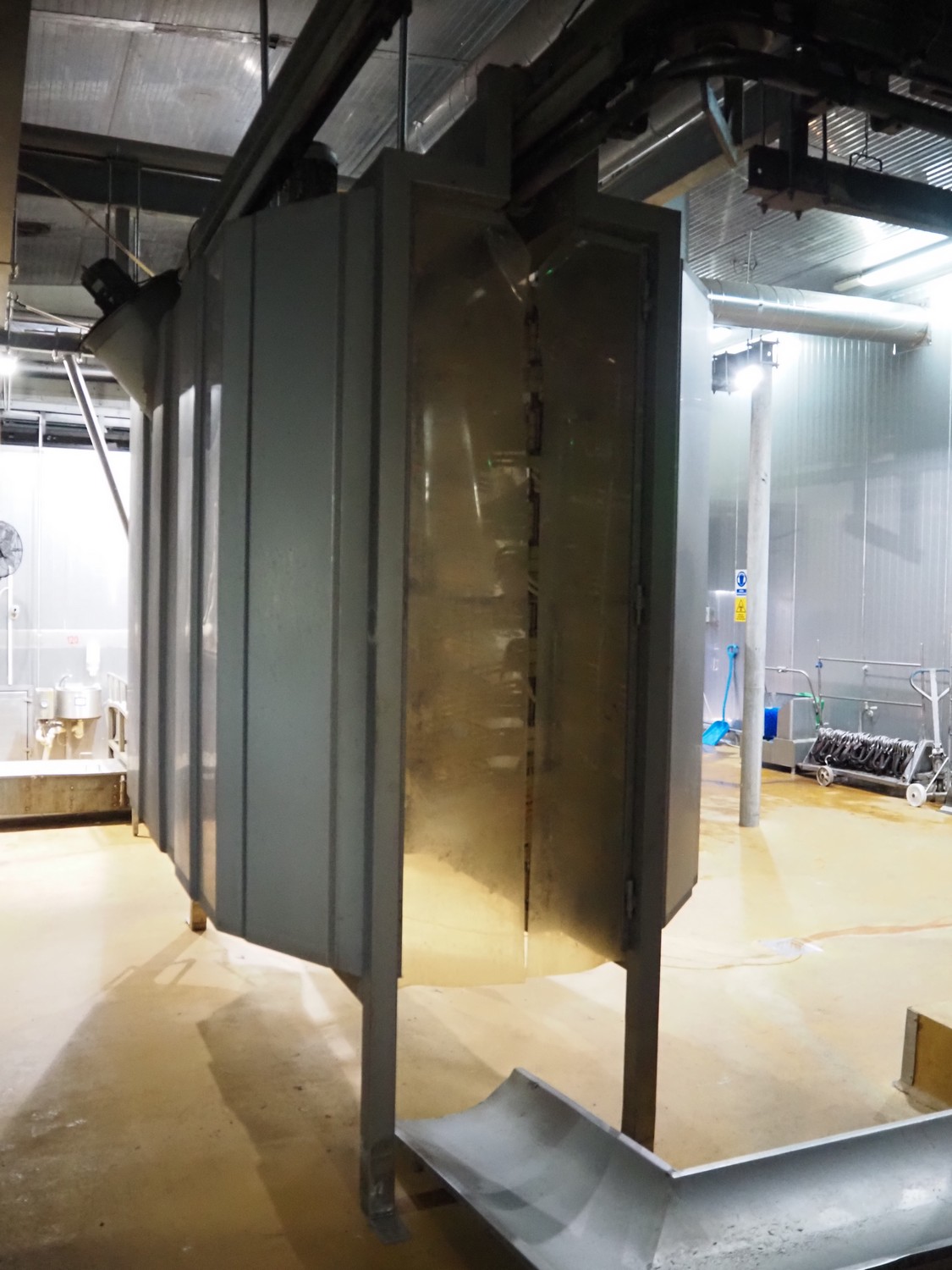

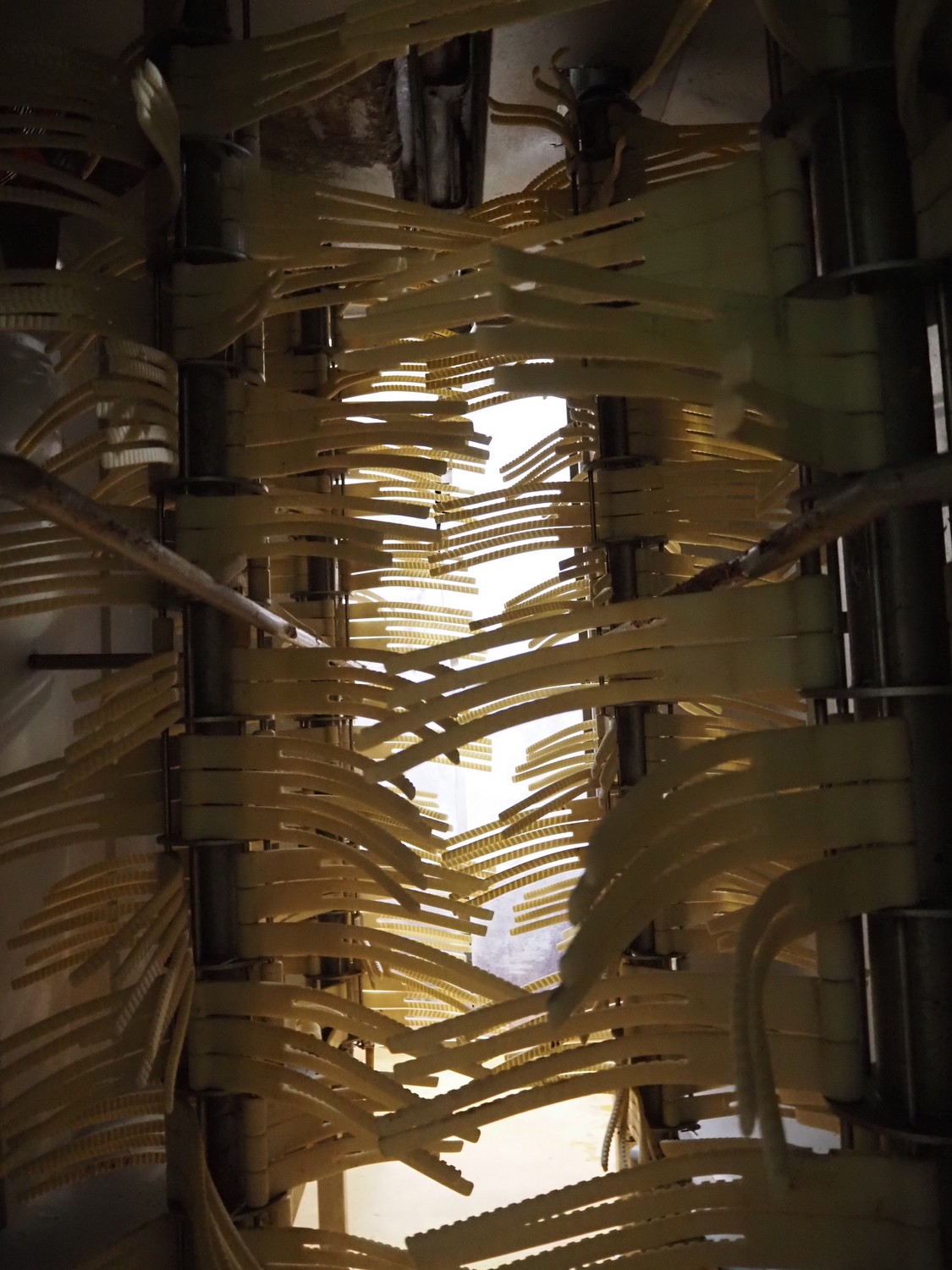

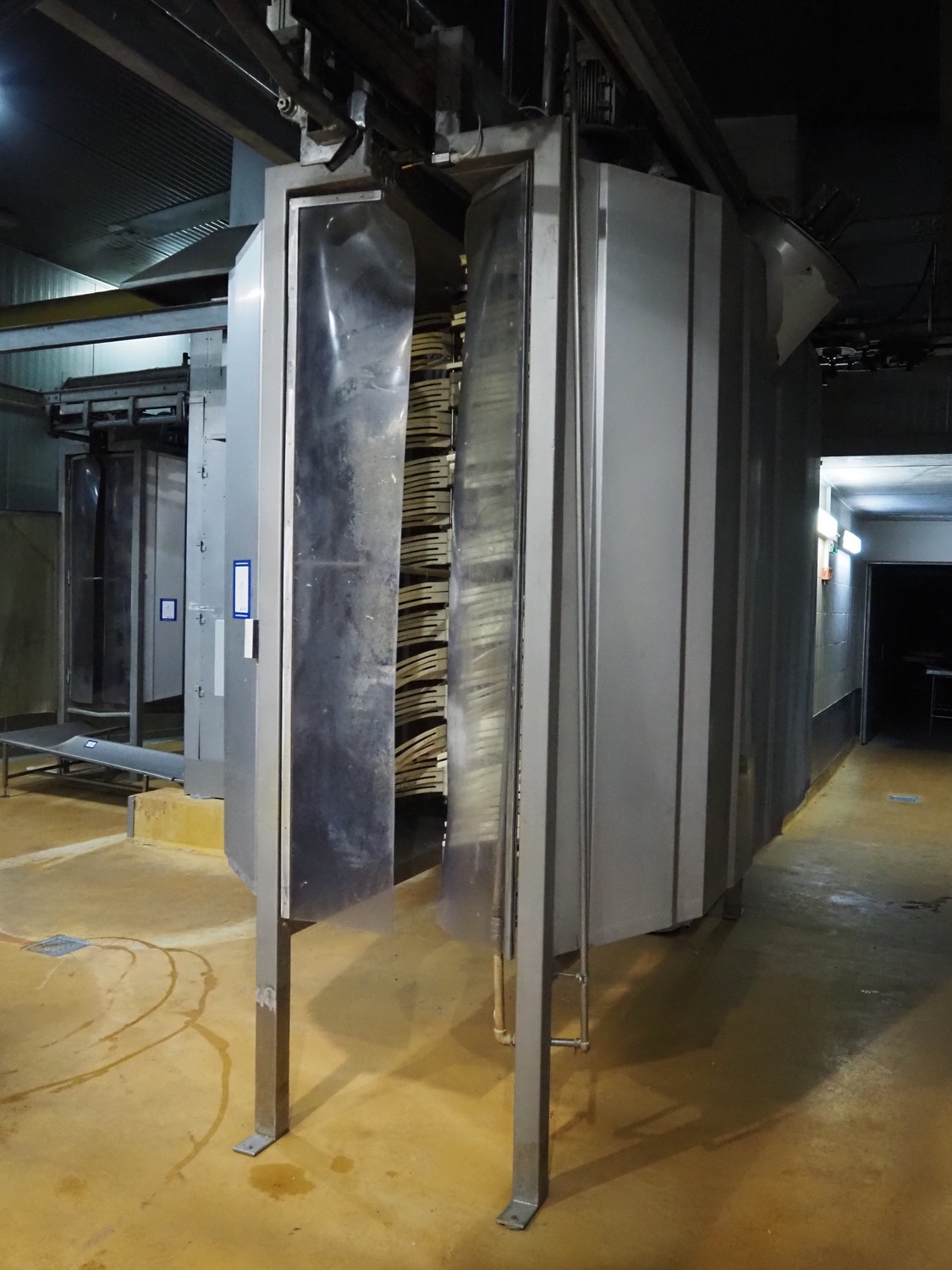

- Whip washer with 4 veritcal whip cylinders, dimensions: 3000 mm x 1800 mm x 3300 mm.

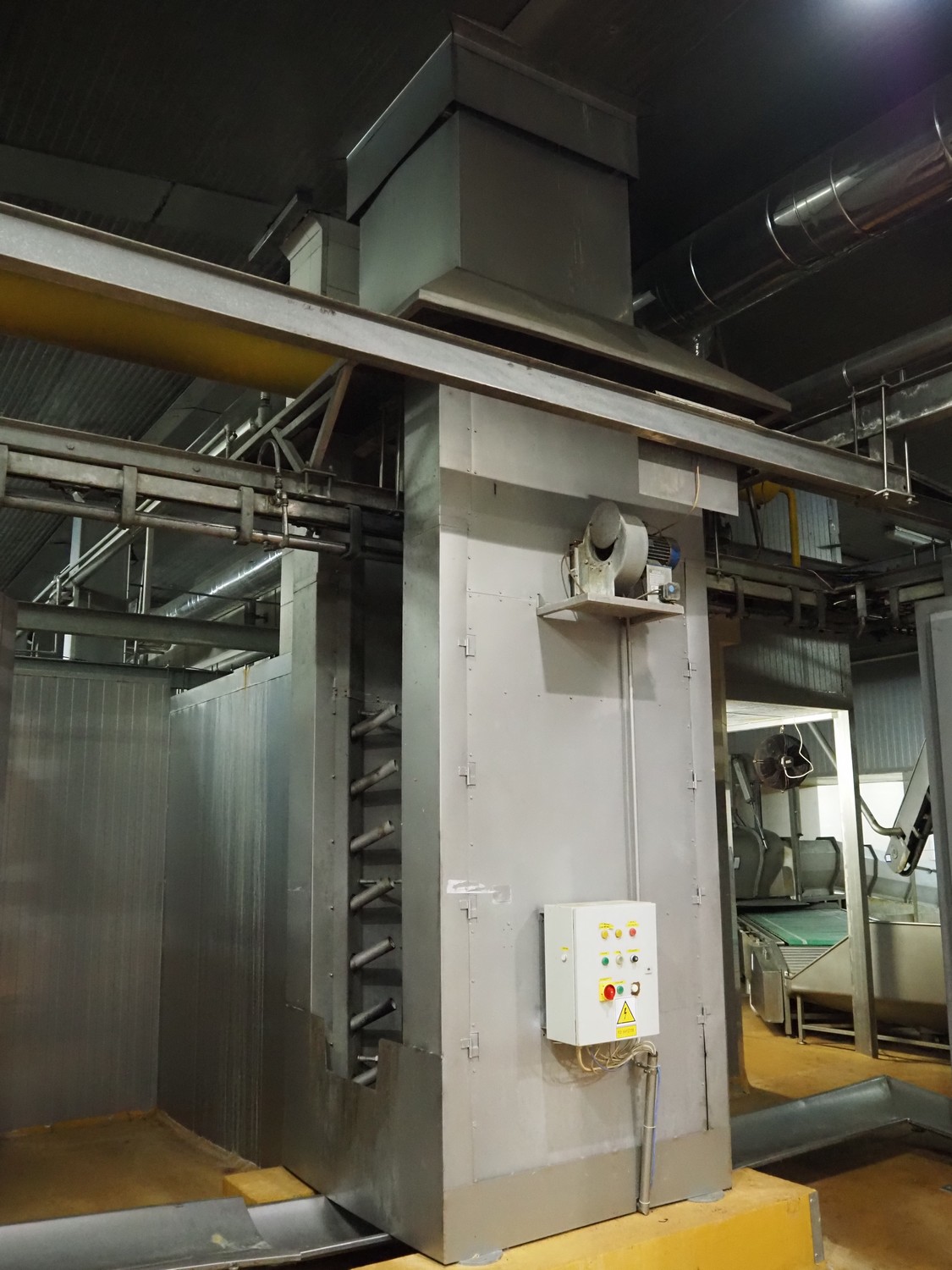

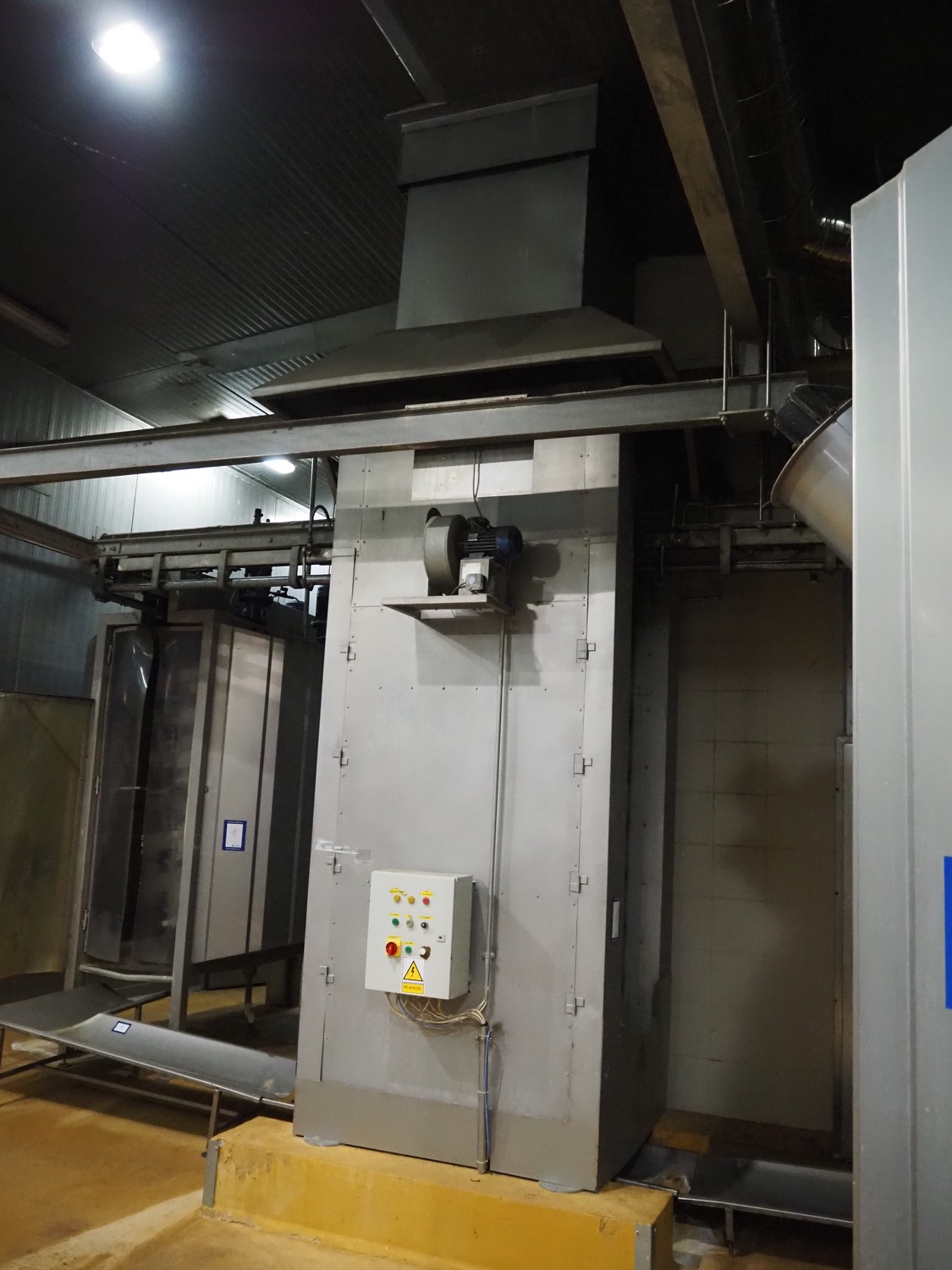

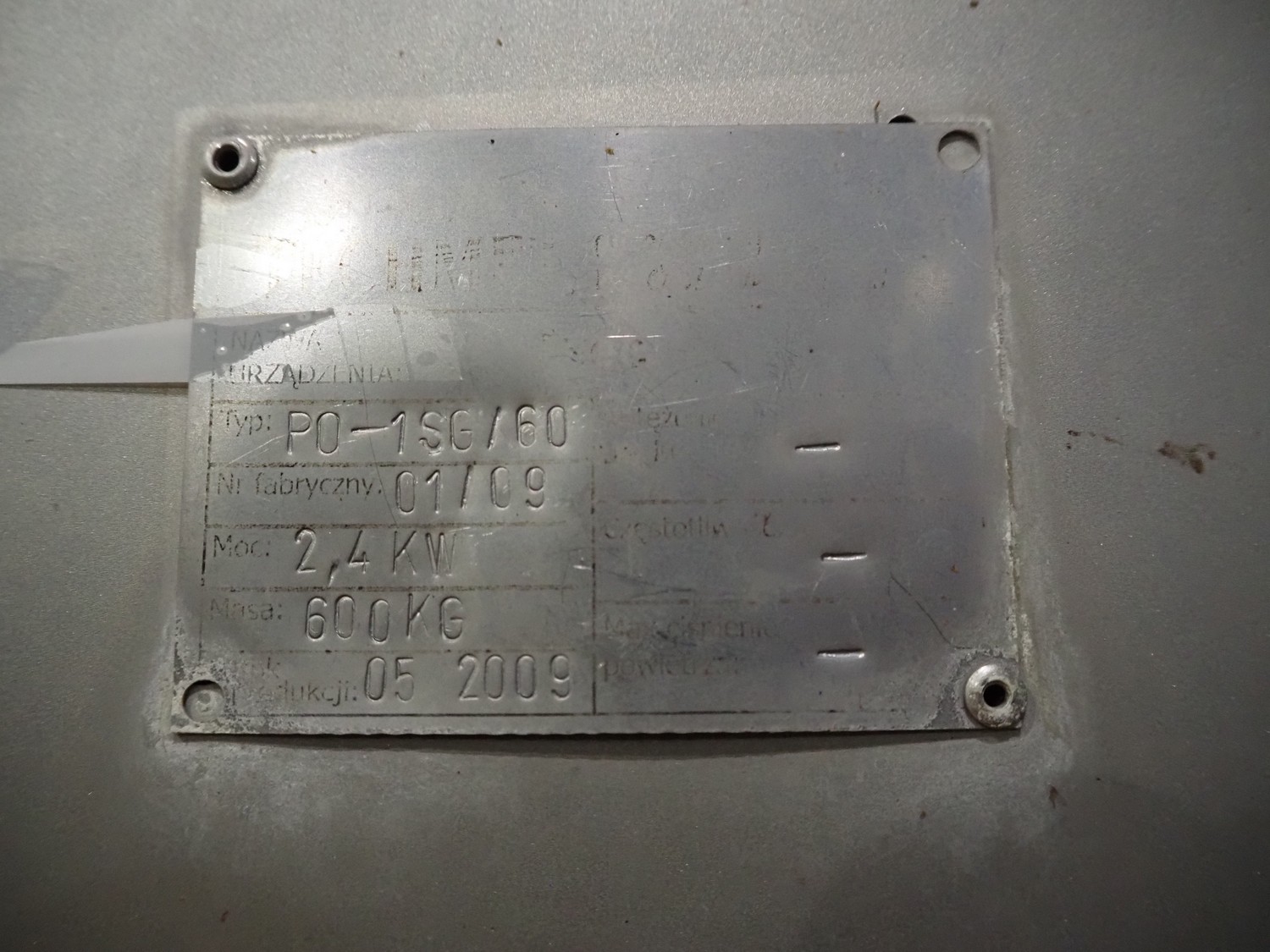

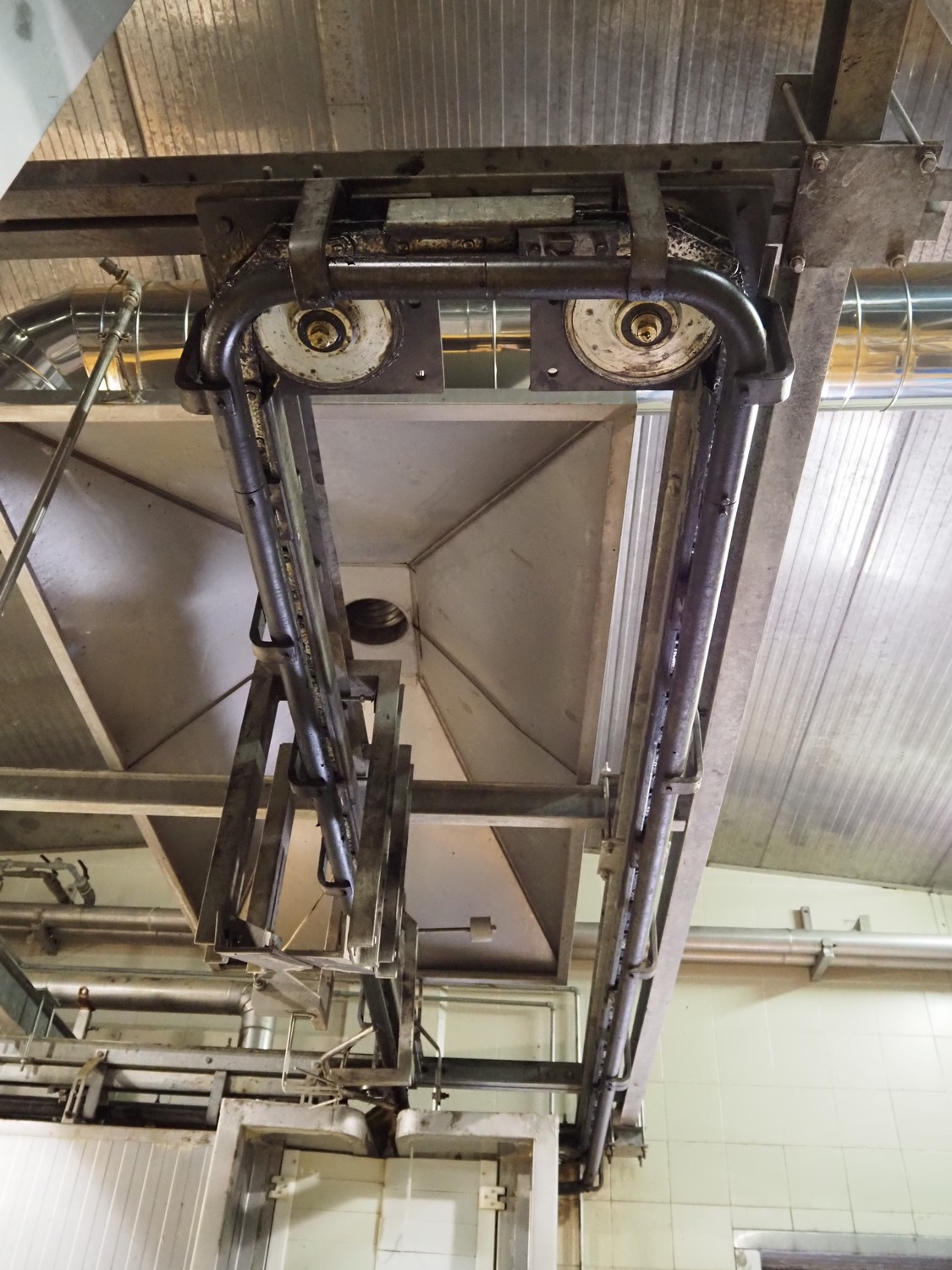

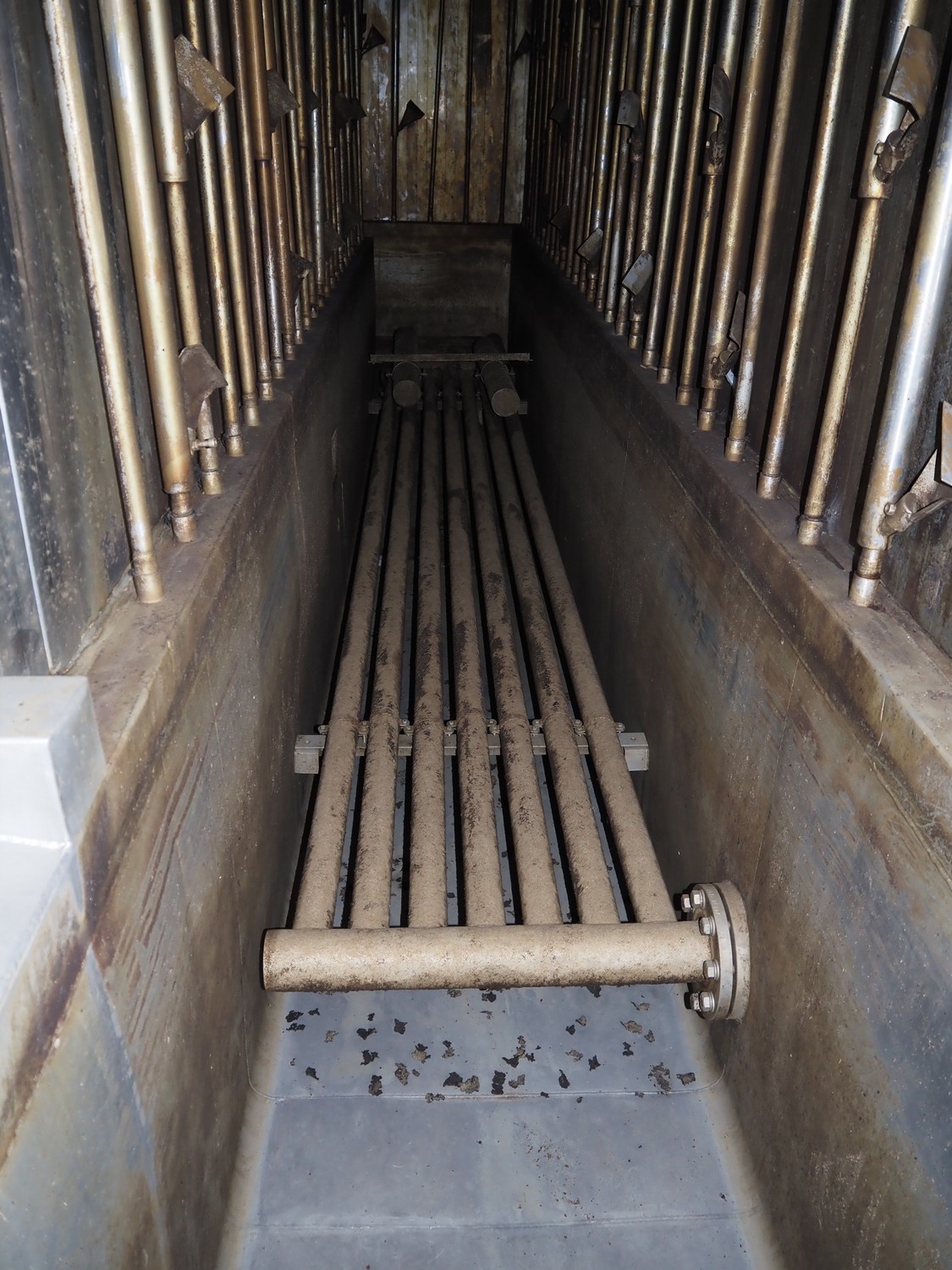

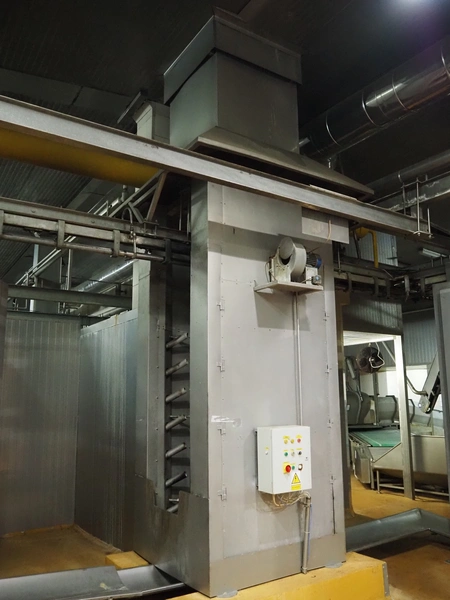

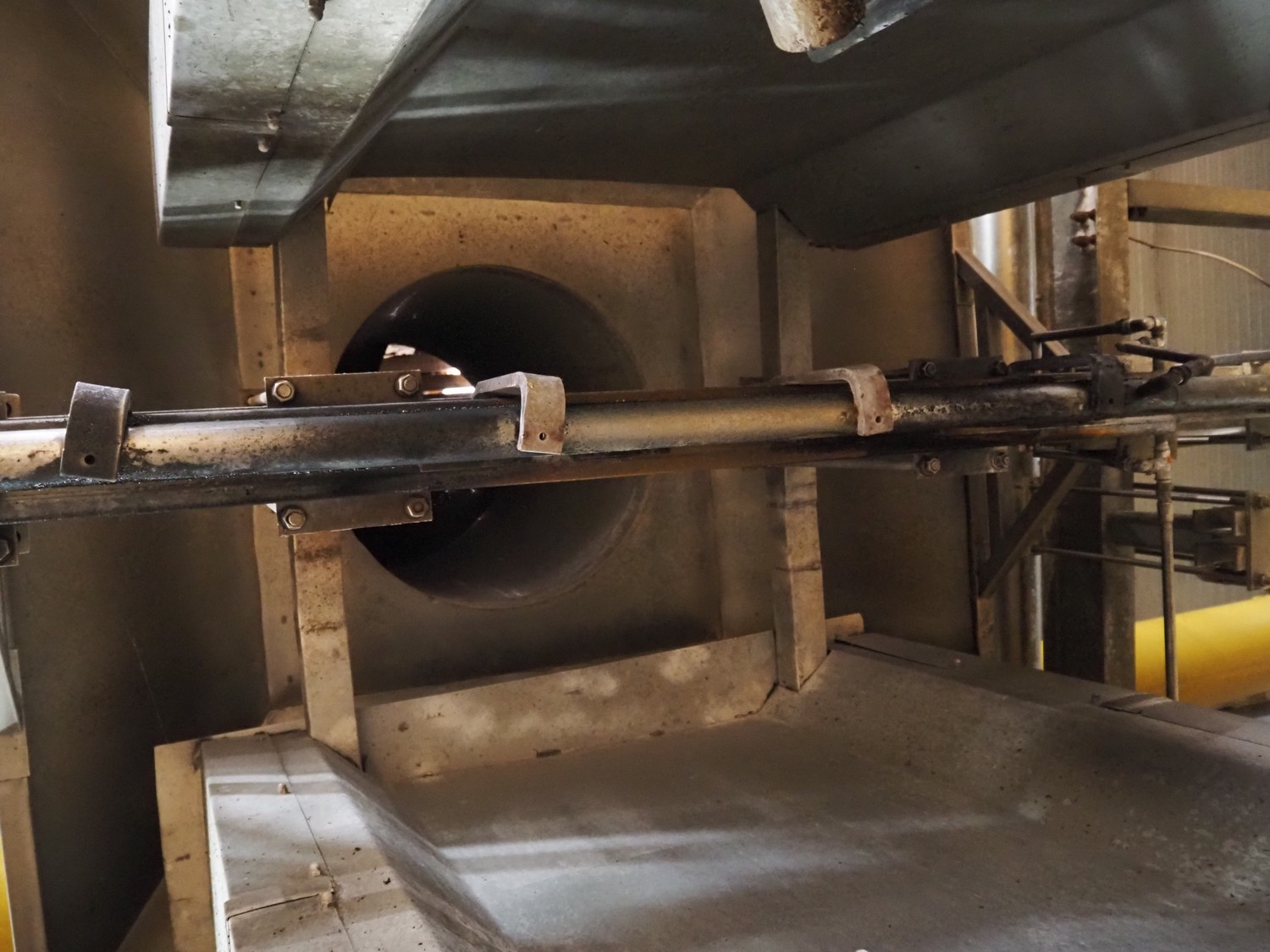

- Singer furnace with hood, type: PO-1SG/60, number: 01/09, yaer of construction: 05/2009, weight: 600 kg, 2.4 kW, gas heated, 4 x 7 burners, dimensions: 1450 mm x 1950 mm x 3480 mm, dimensions hood: 1850 mm x 1850 mm x 2000 mm.
- Whip washer with 4 veritcal whip cylinders, dimensions: 3000 mm x 1800 mm x 3300 mm.

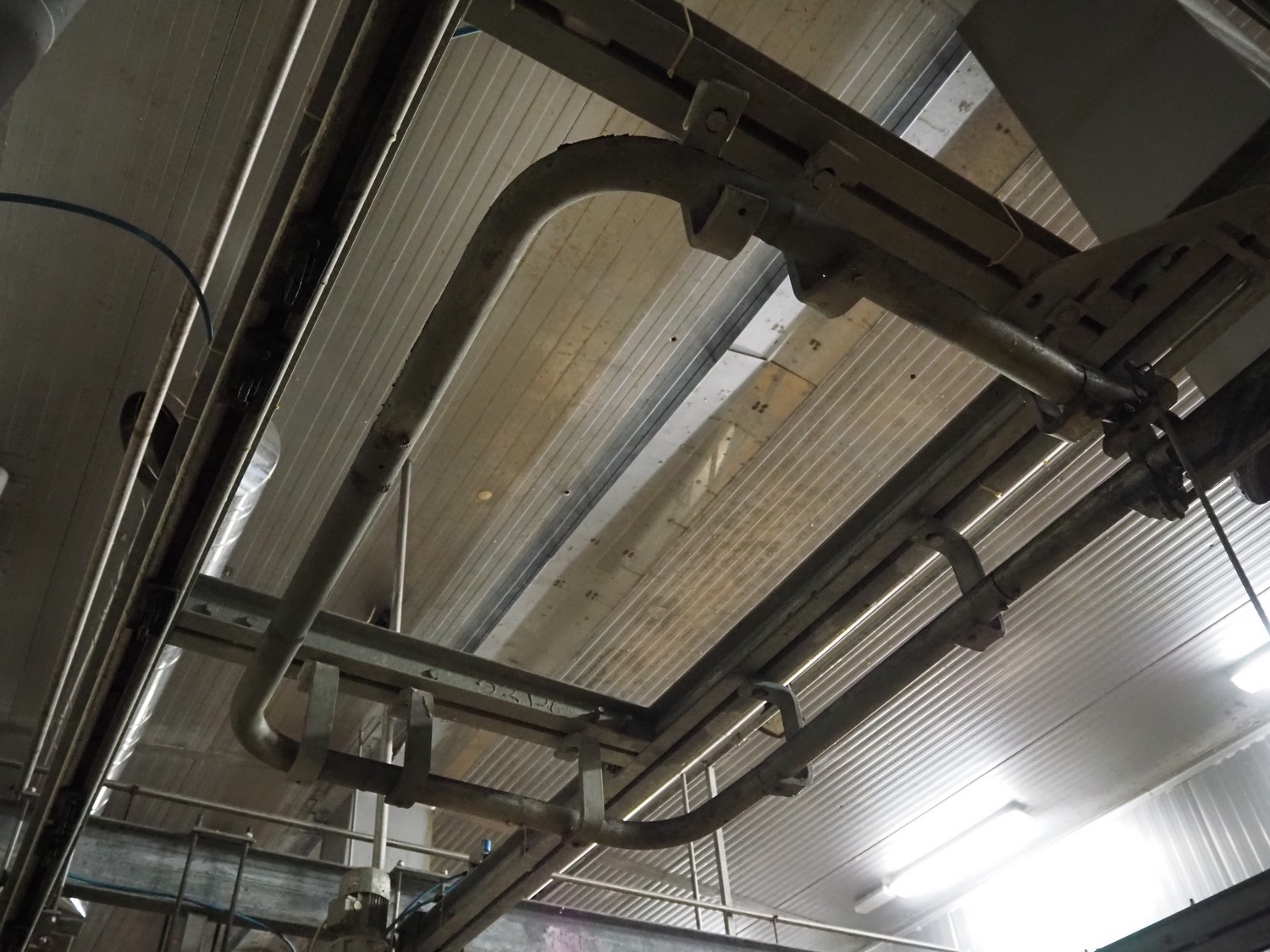

- Tube rail conveyor used in dirt and clean line, ø tube: 60 mm.
CLEAN LINE:

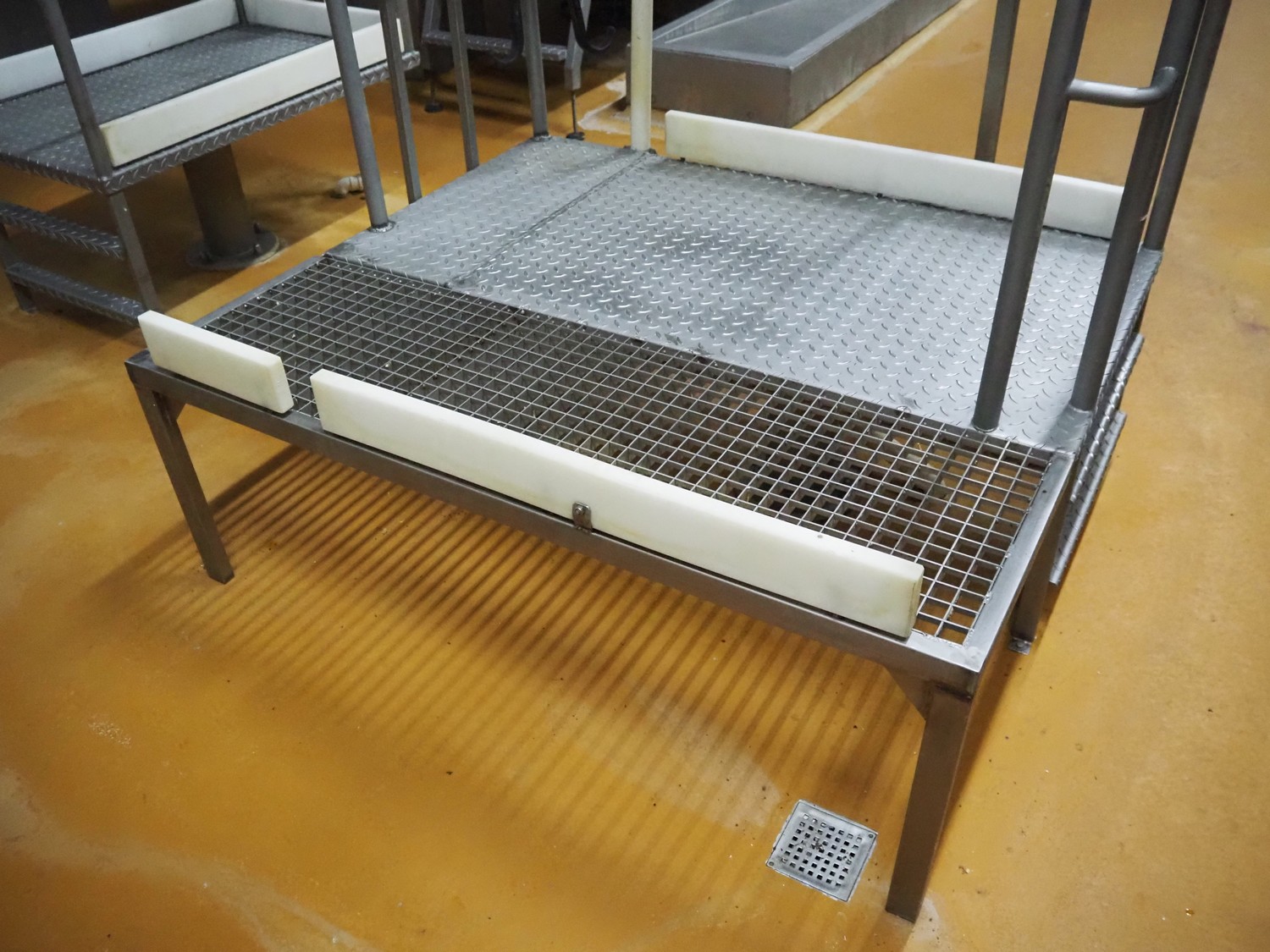

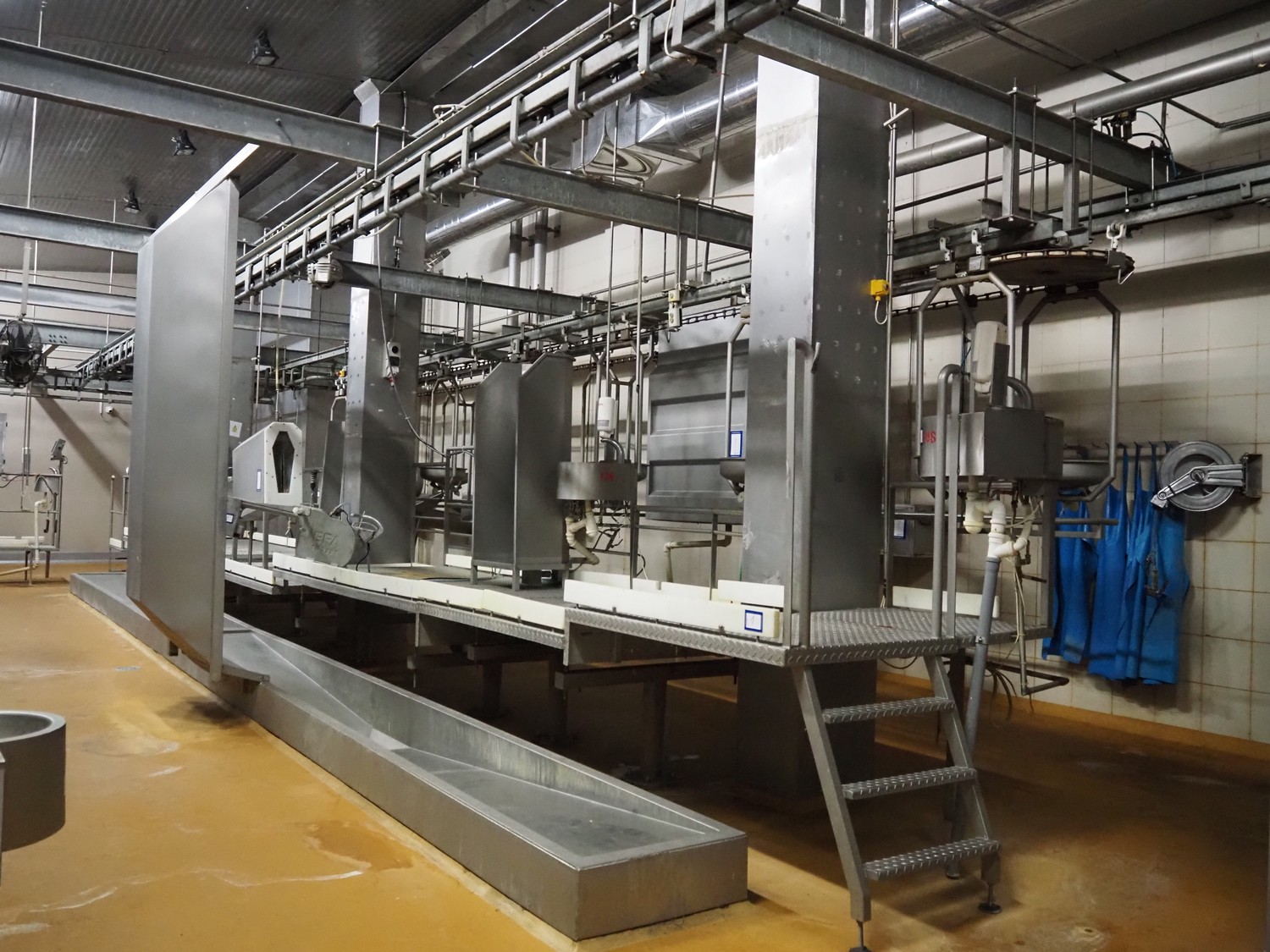

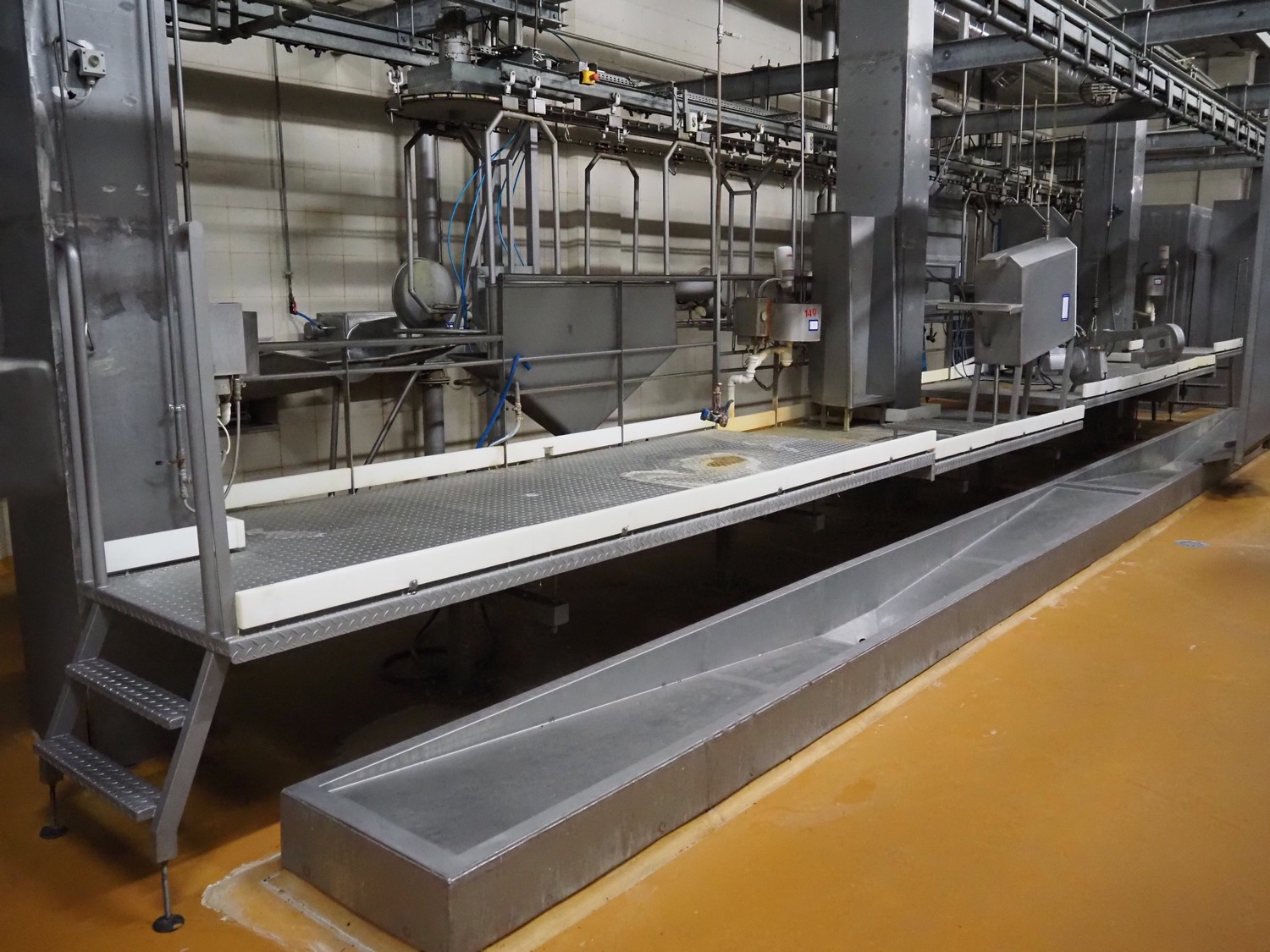

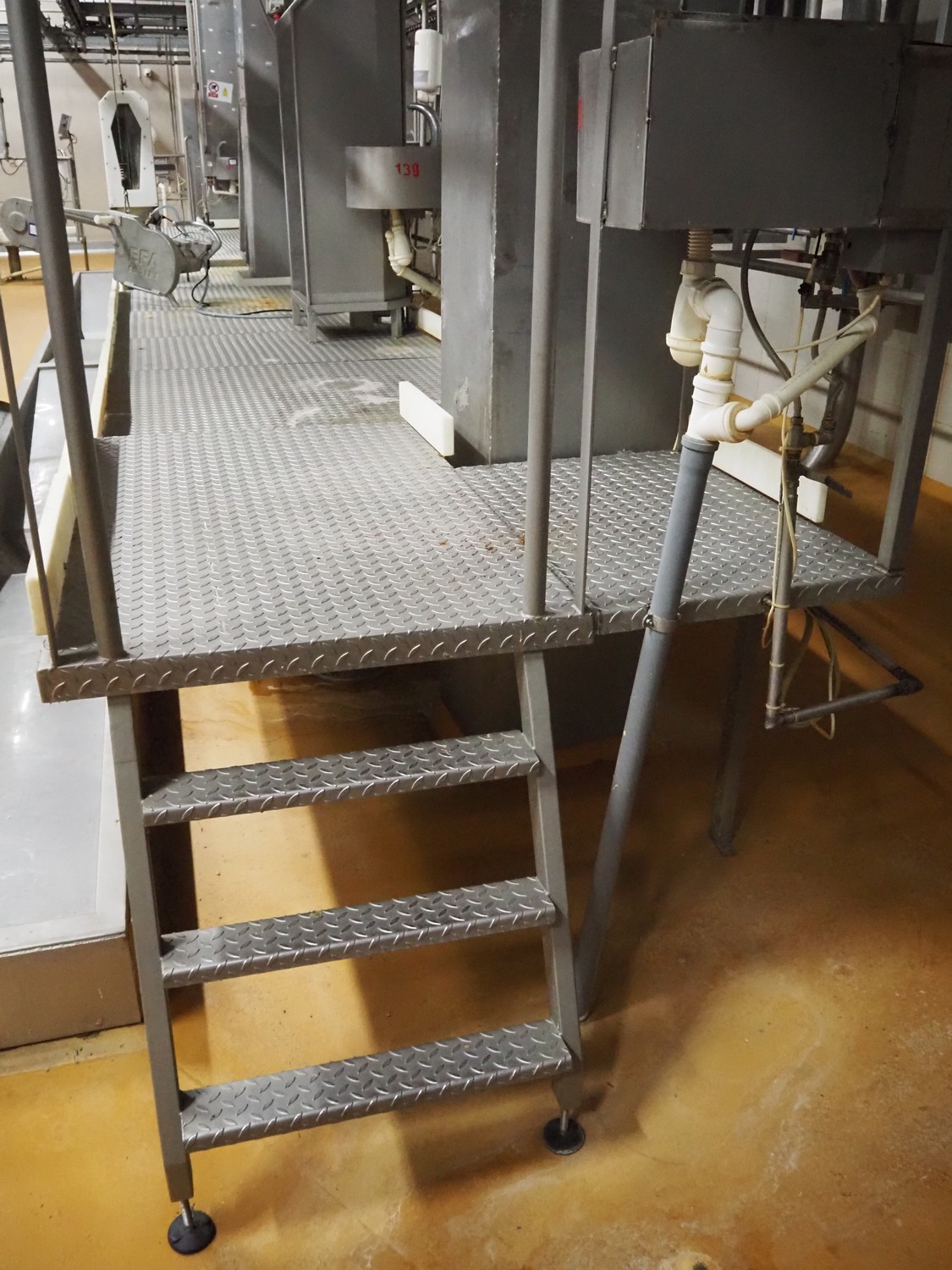

- S/s working platform with 4 s/s sinks with faucet, 3 soap dispensers, 4 knife sterilizers and apron washer, dimensions: 13750 mm x 1600 mm x 2560 mm.

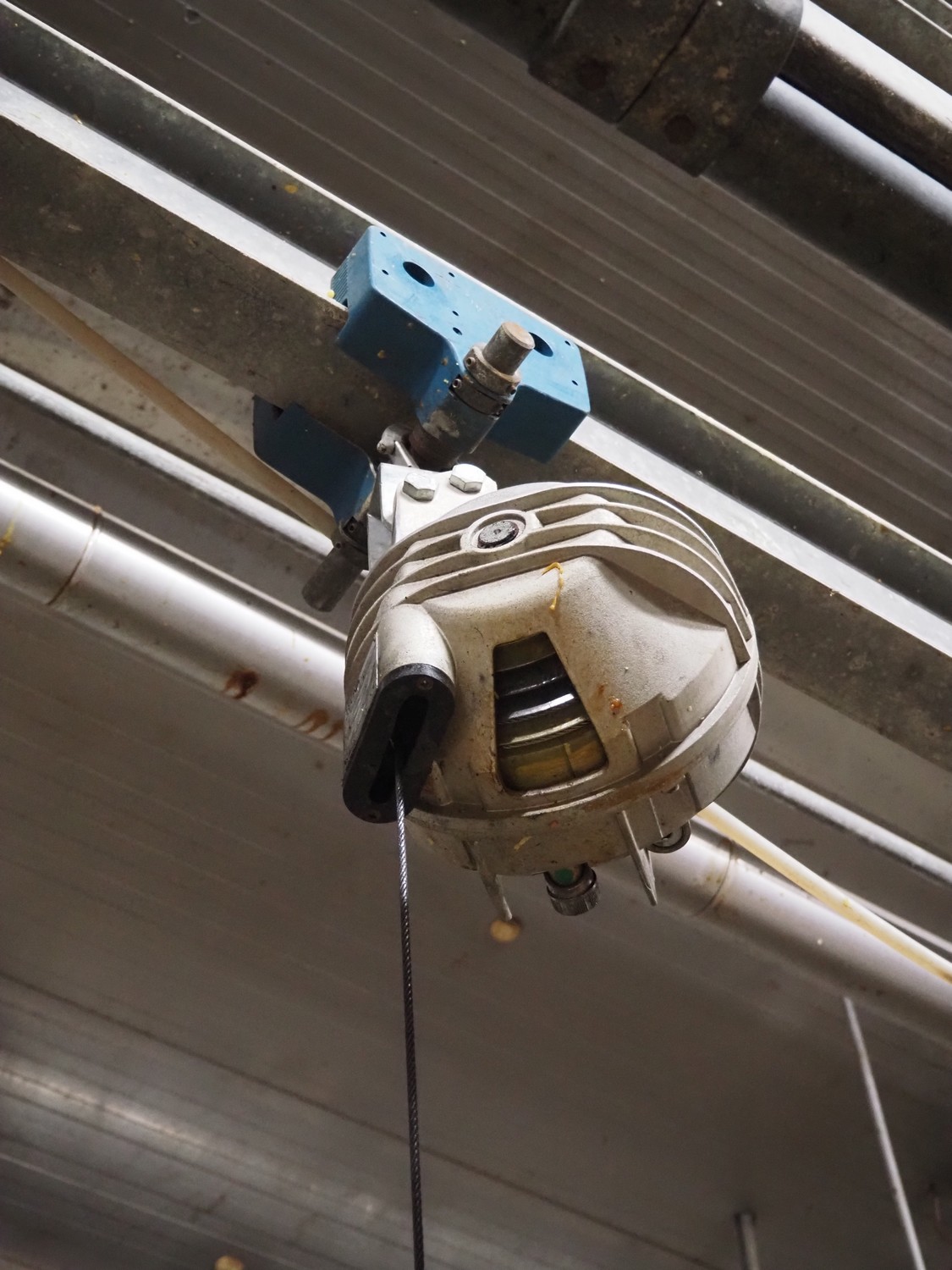

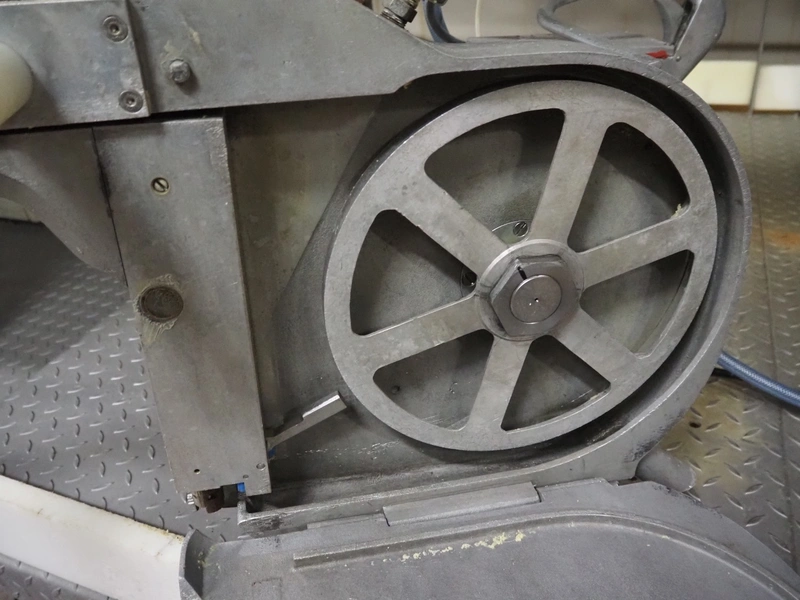

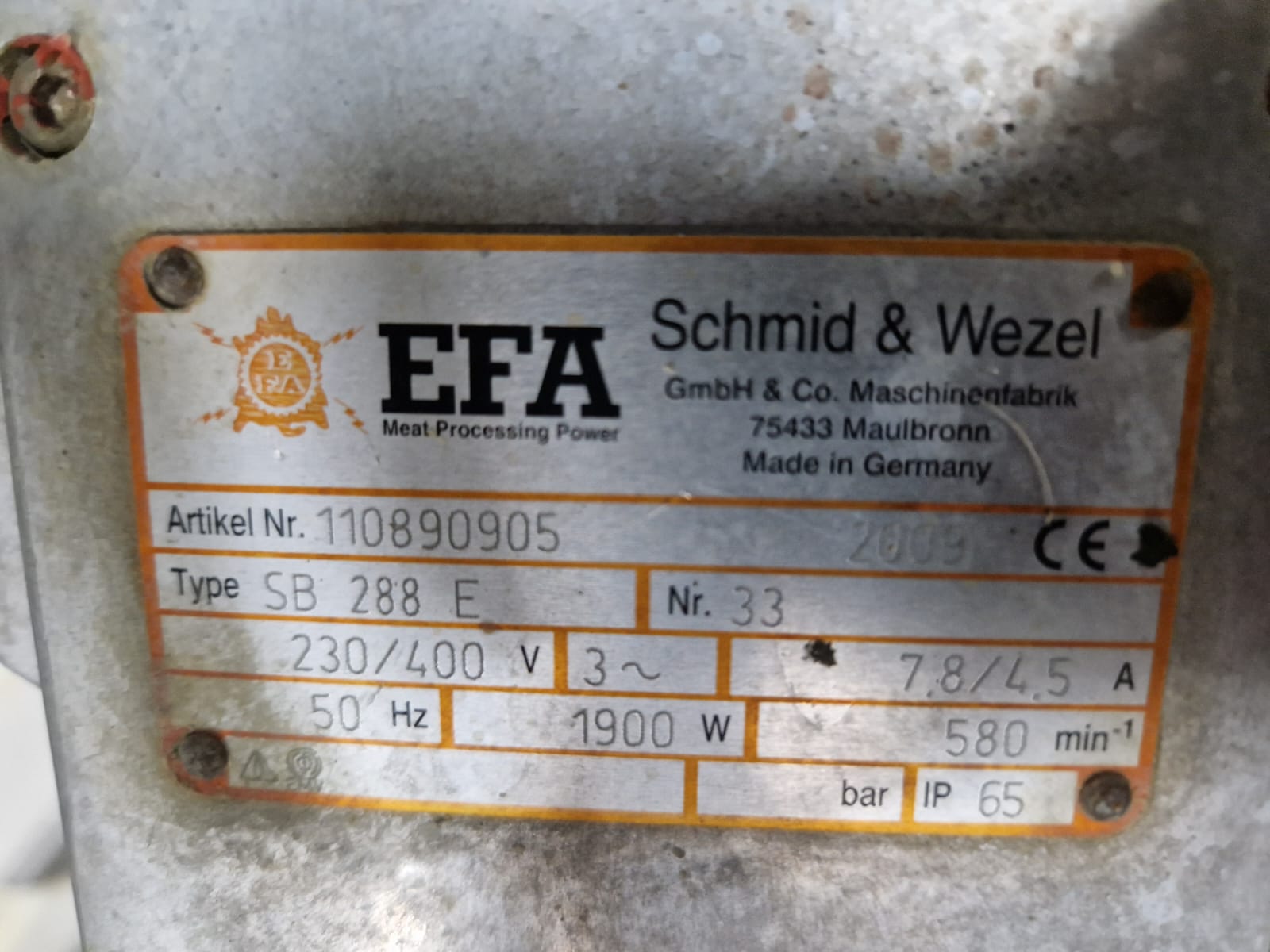

- EFA splitting saw with balancer, model: SB 288 E, number: 33, article number: 110890905, year of construction: 2009, 230/400 V, 3 Ph, 7.8/4.5 A, 1900 W, 50 kg, cutting time: 20-25 seconds per animal, working pressure: 2-5 bar, dimensoins: 1500 mm x 500 mm x 500 mm.

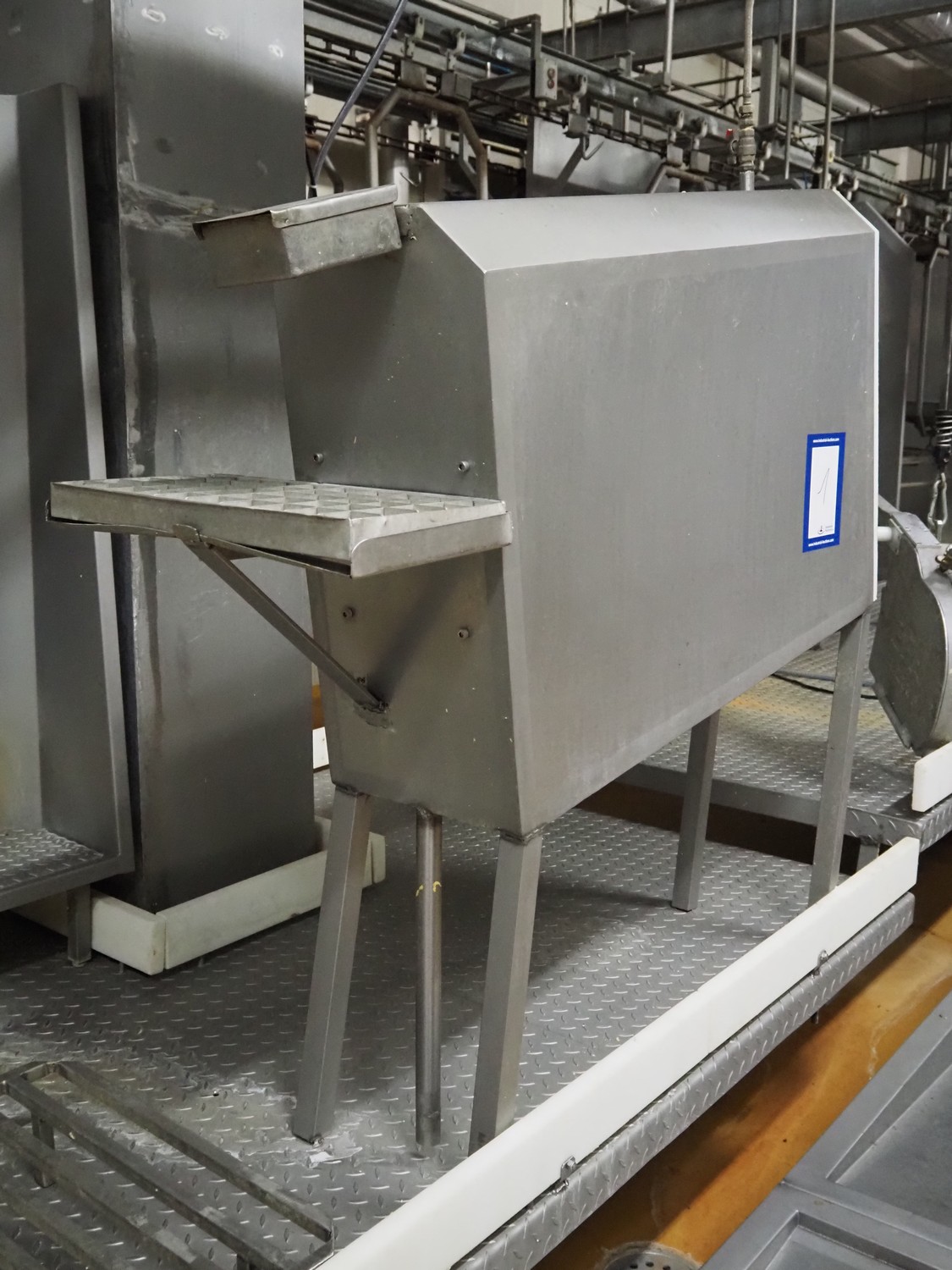

- S/s sterilizer for splitting saws, dimensions: 1400 mm x 320 mm x 1400 mm.

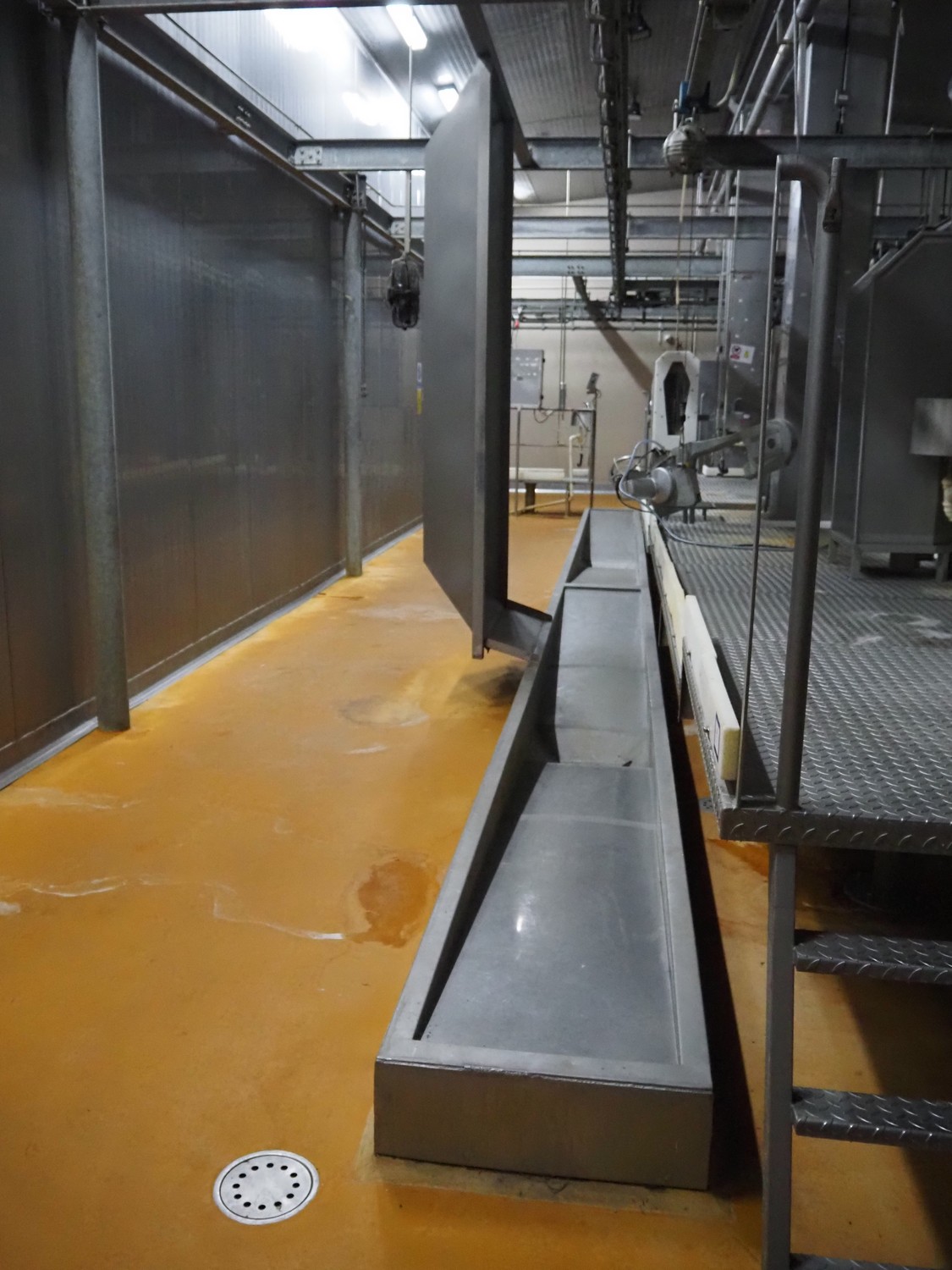

- S/s gutter for organs, dimensions: 13300 mm x 740 mm x 250 mm.

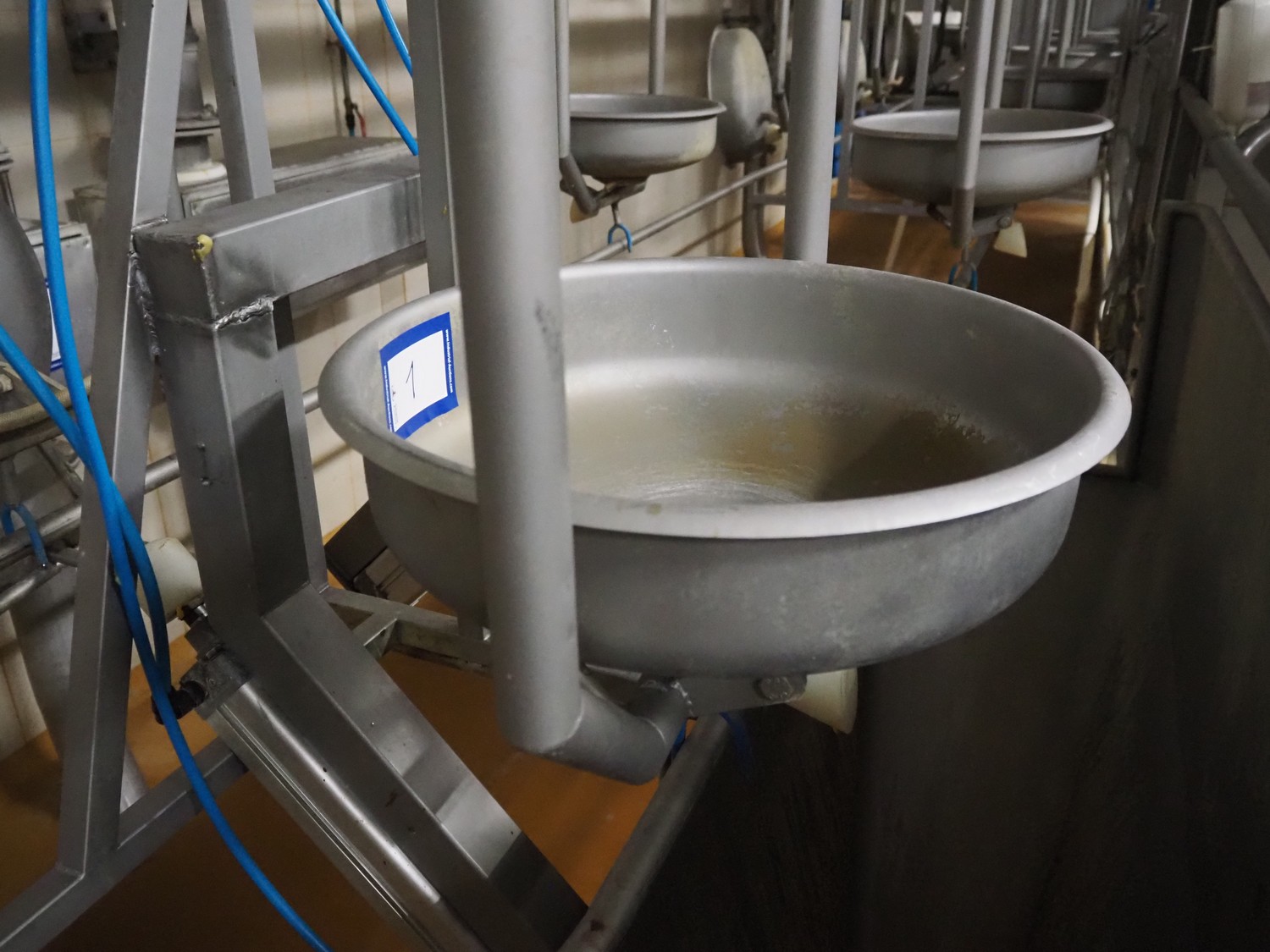

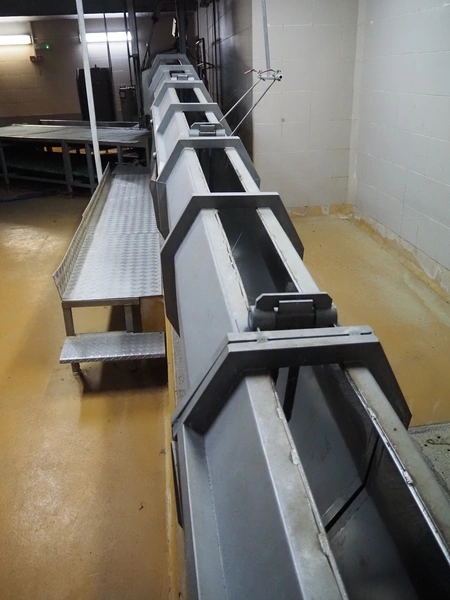

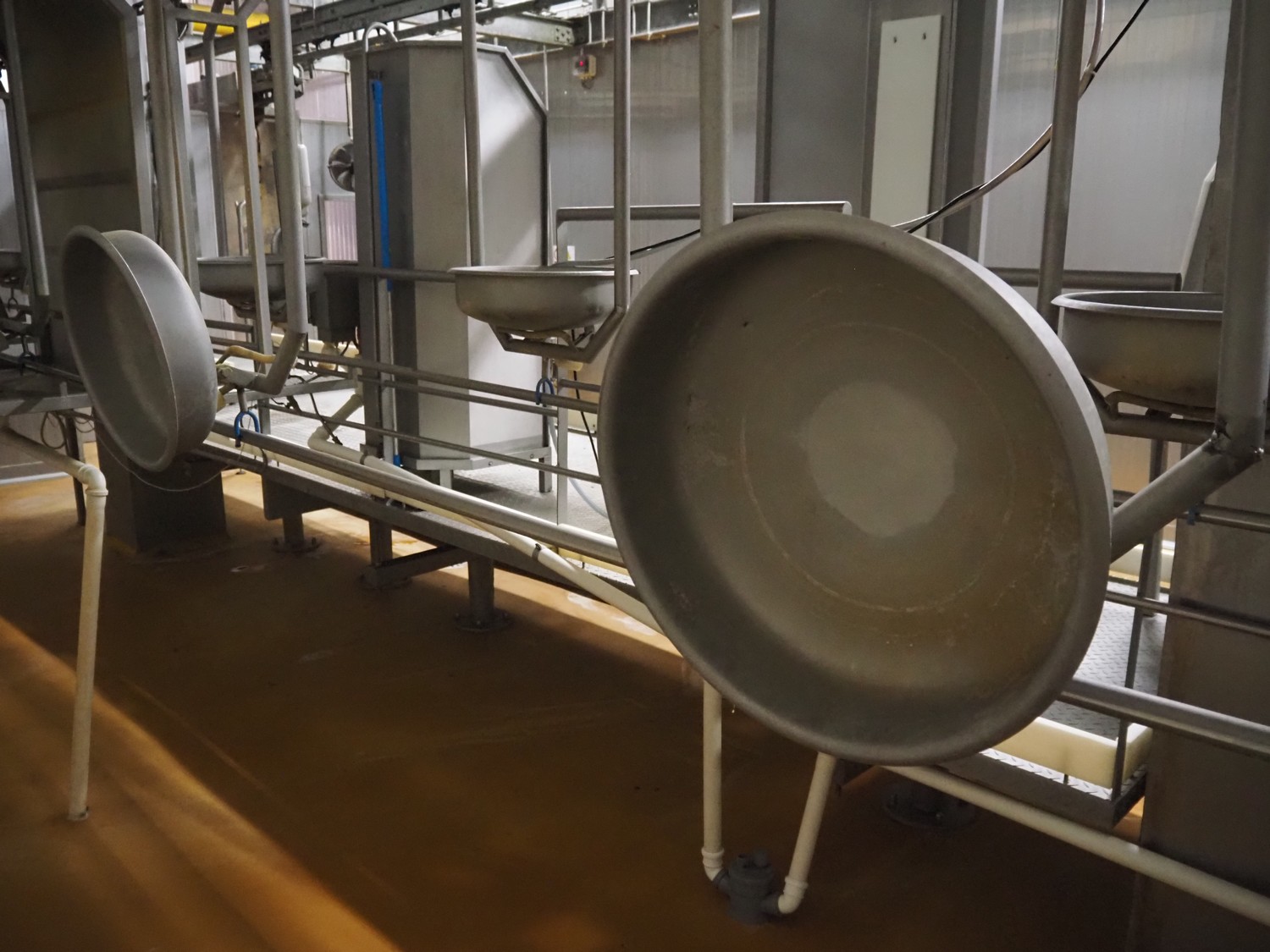

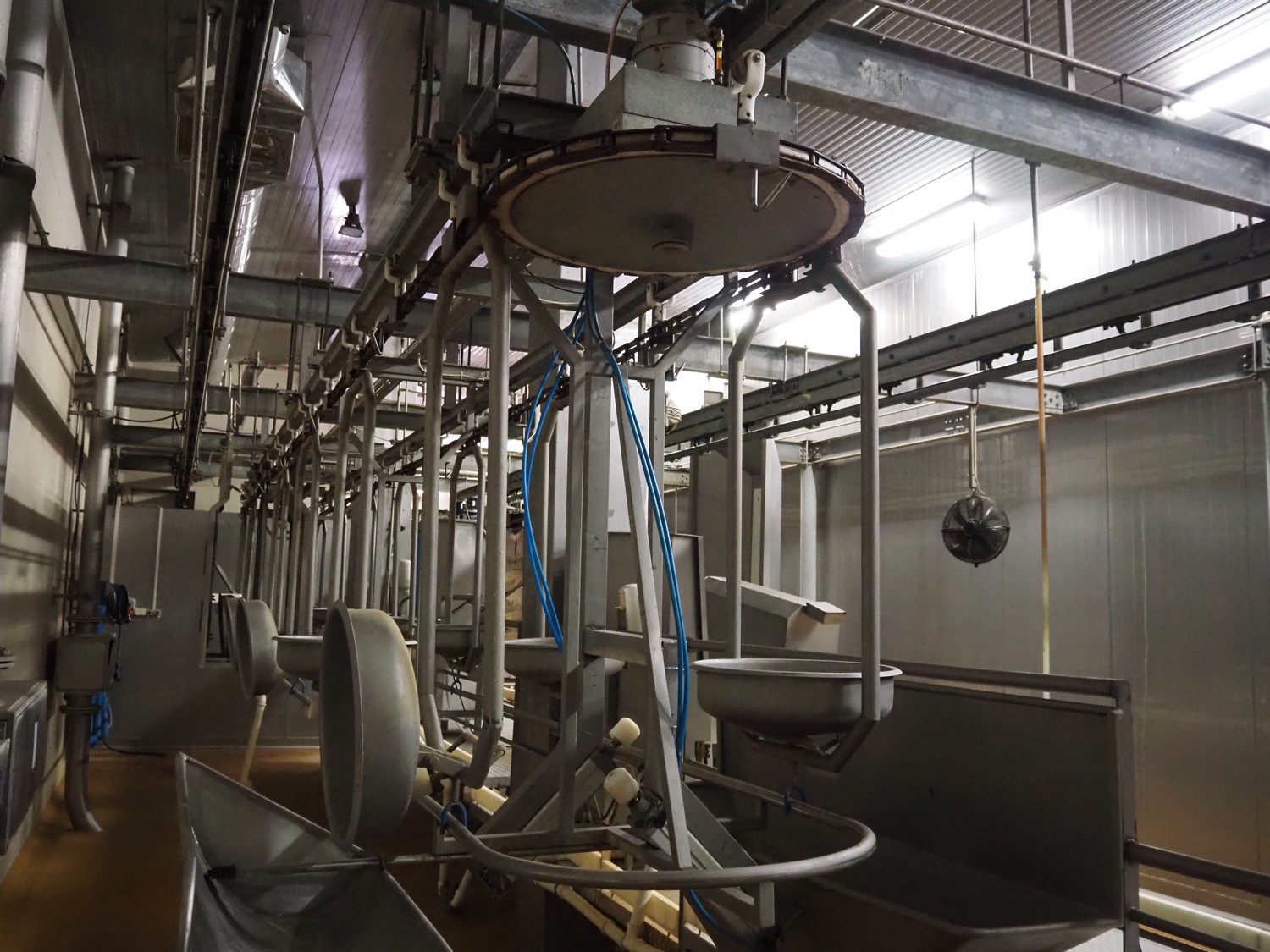

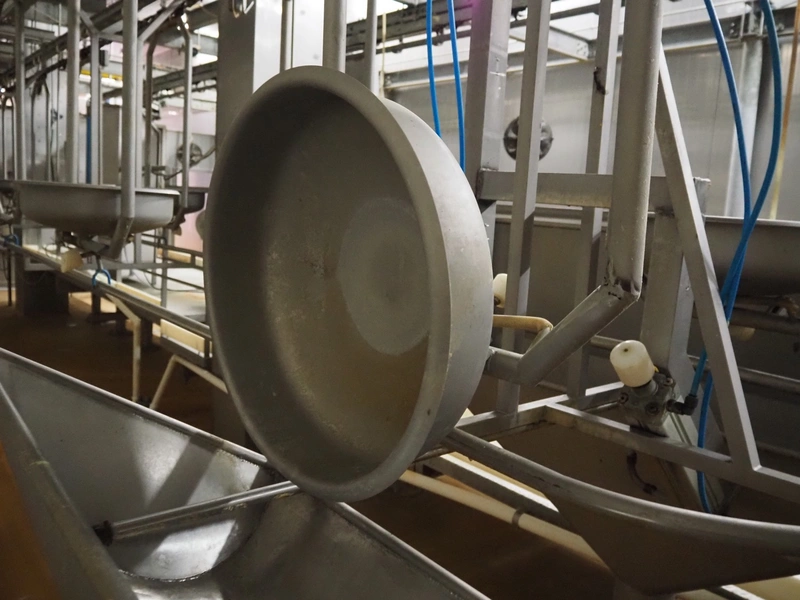

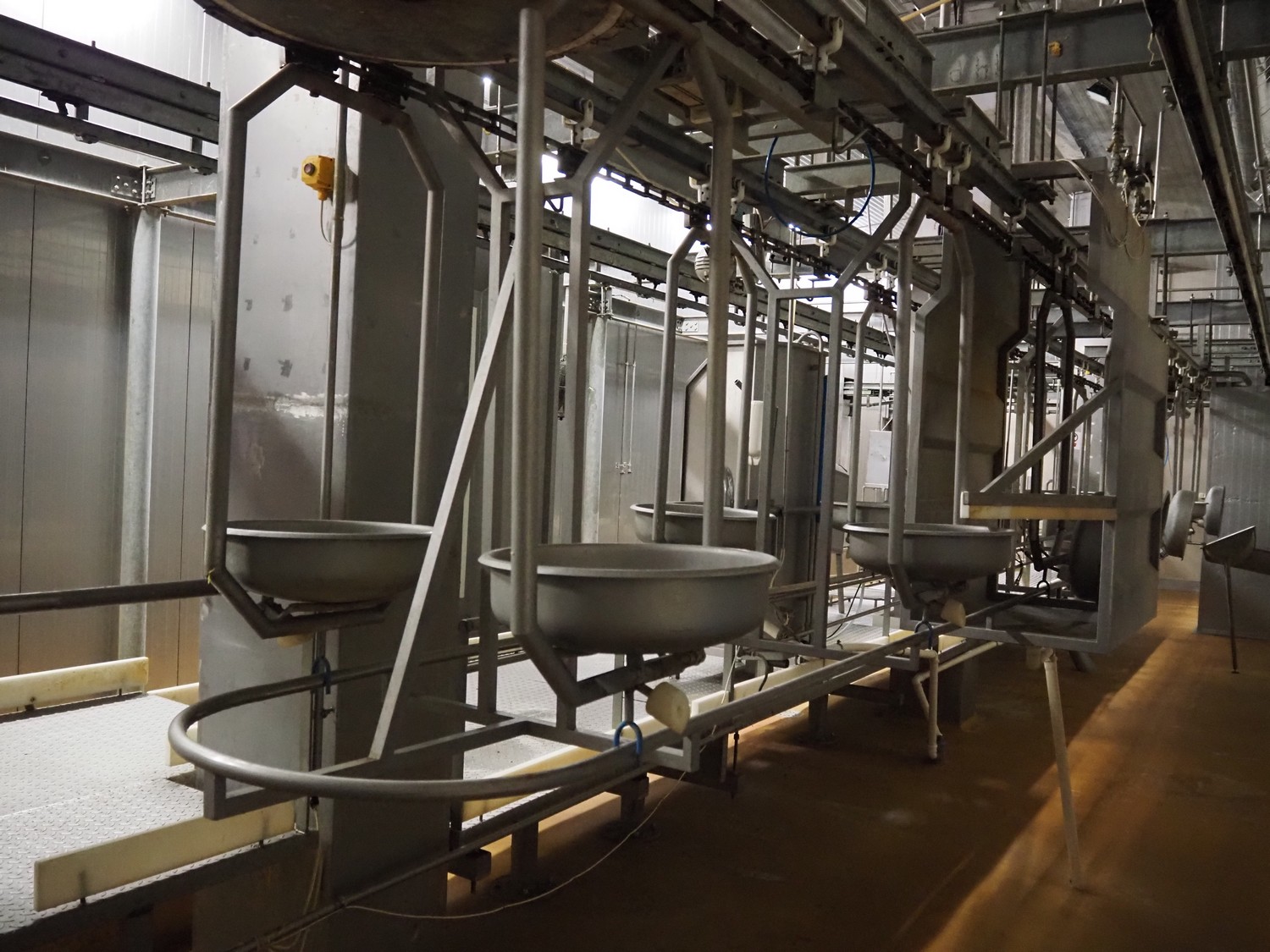

- S/s organ conveyor with 14 baskets and basket sterilizer, ø baskets: 450 mm, total dimensions: 11000 mm x 1300 mm x 1700 mm.

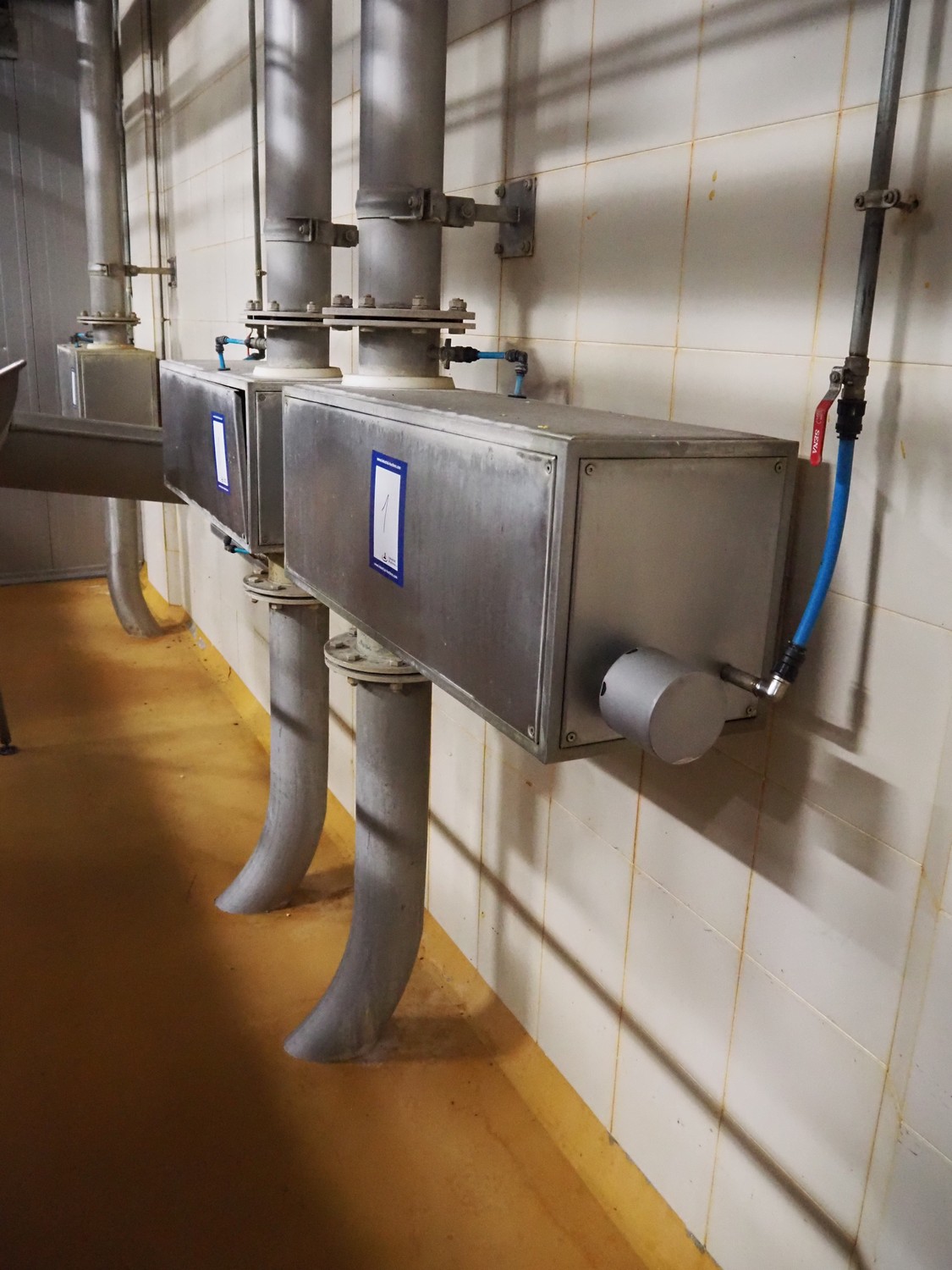

- (4x) Pneumatic valves, dimensions: (4x) 1200 mm x 400 mm x 650 mm.

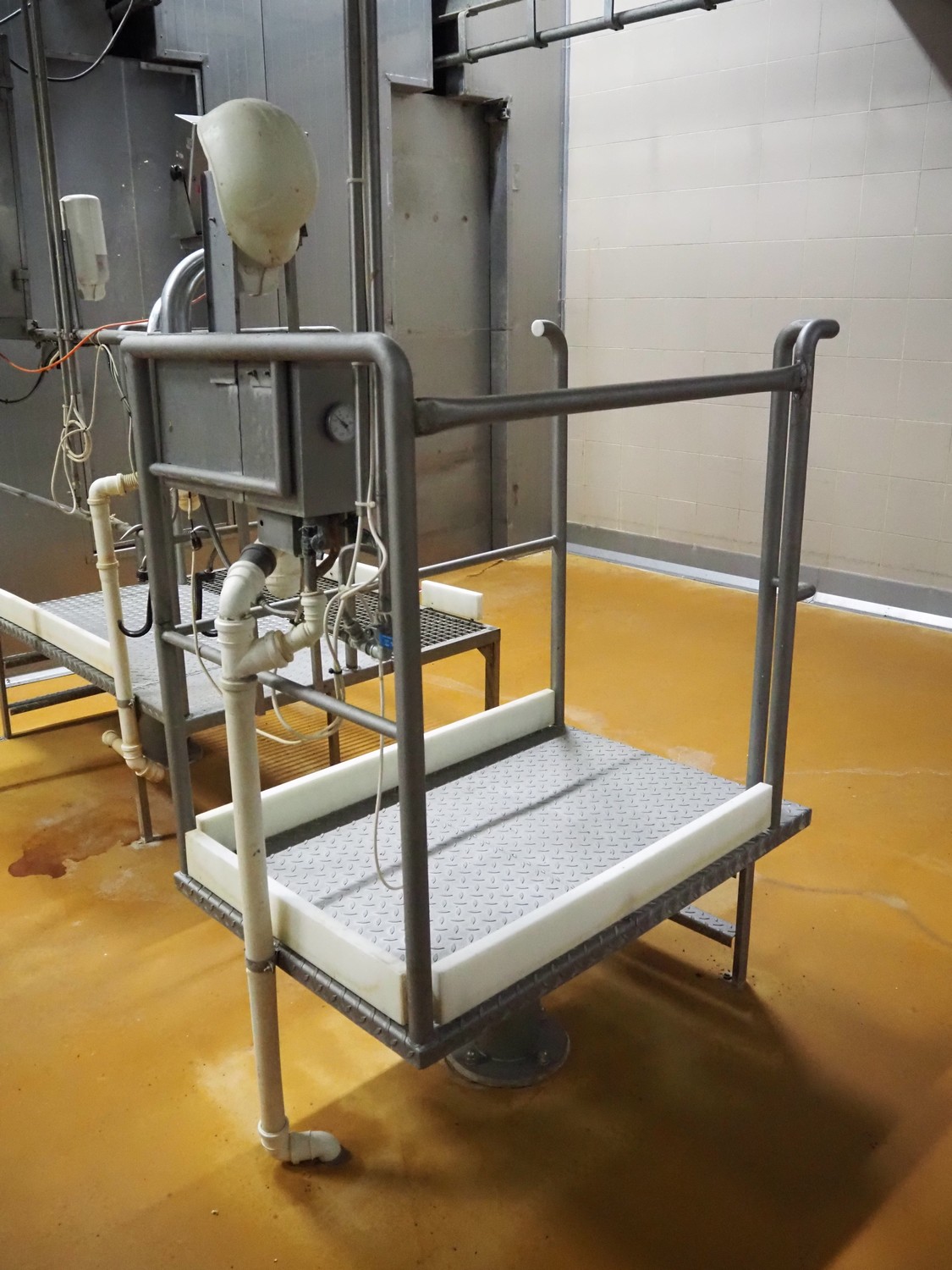

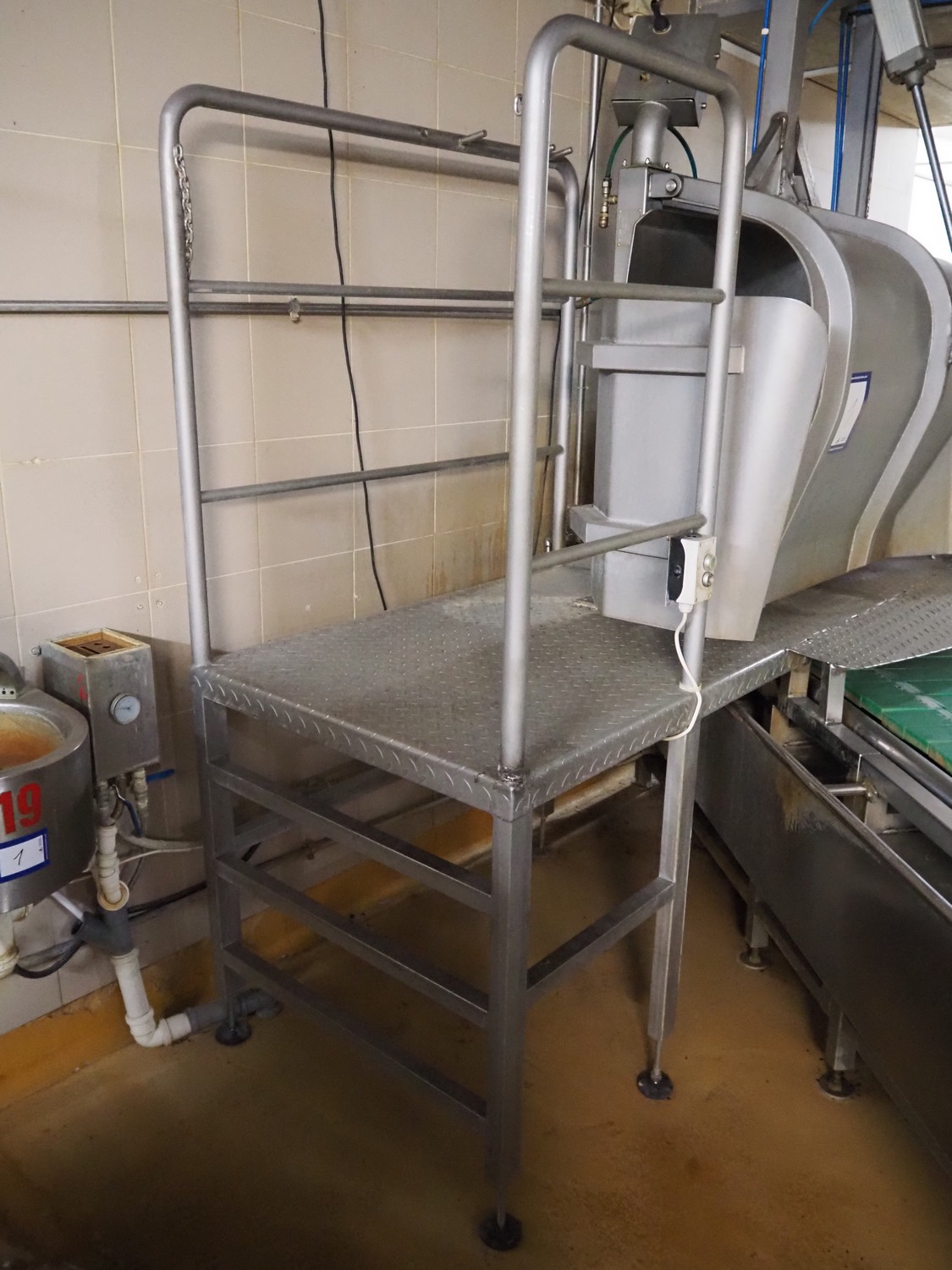

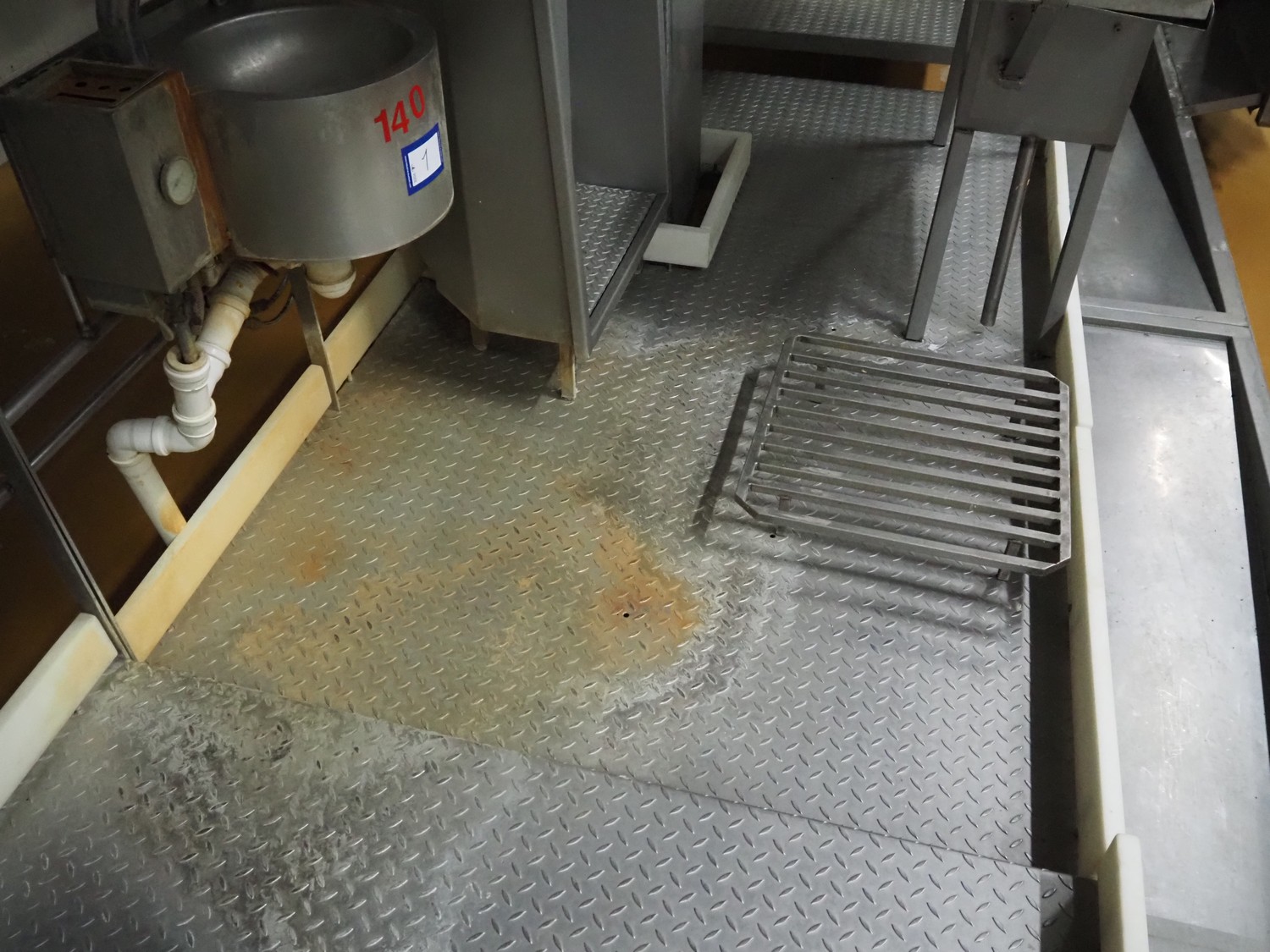

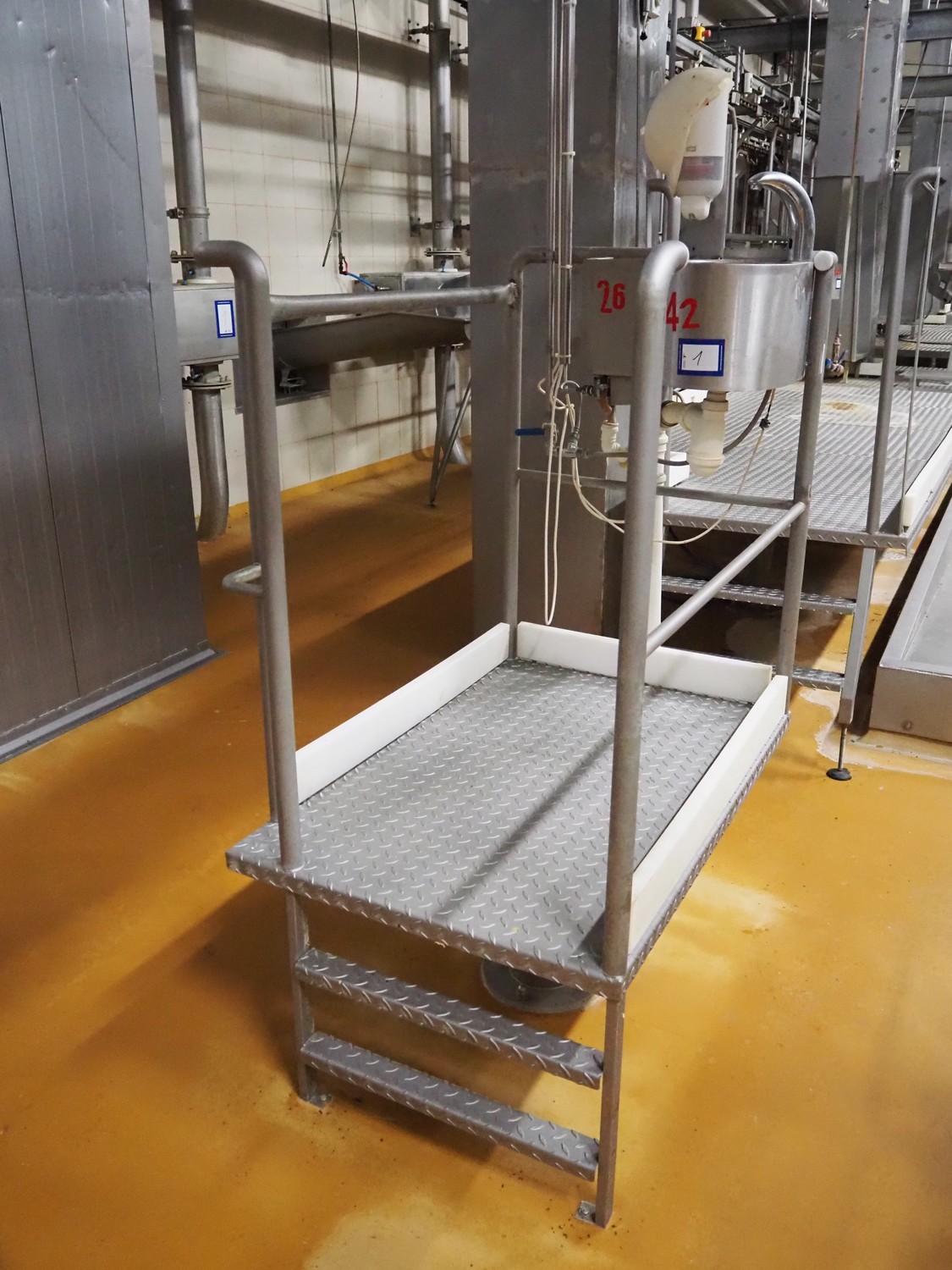

- S/s platform with sink with faucet, soap dispenser and knife sterilizer, dimensions: 1230 mm x 830 mm x 1900 mm.

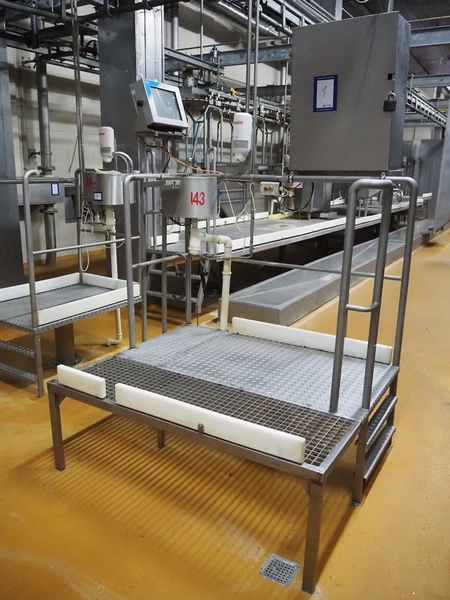

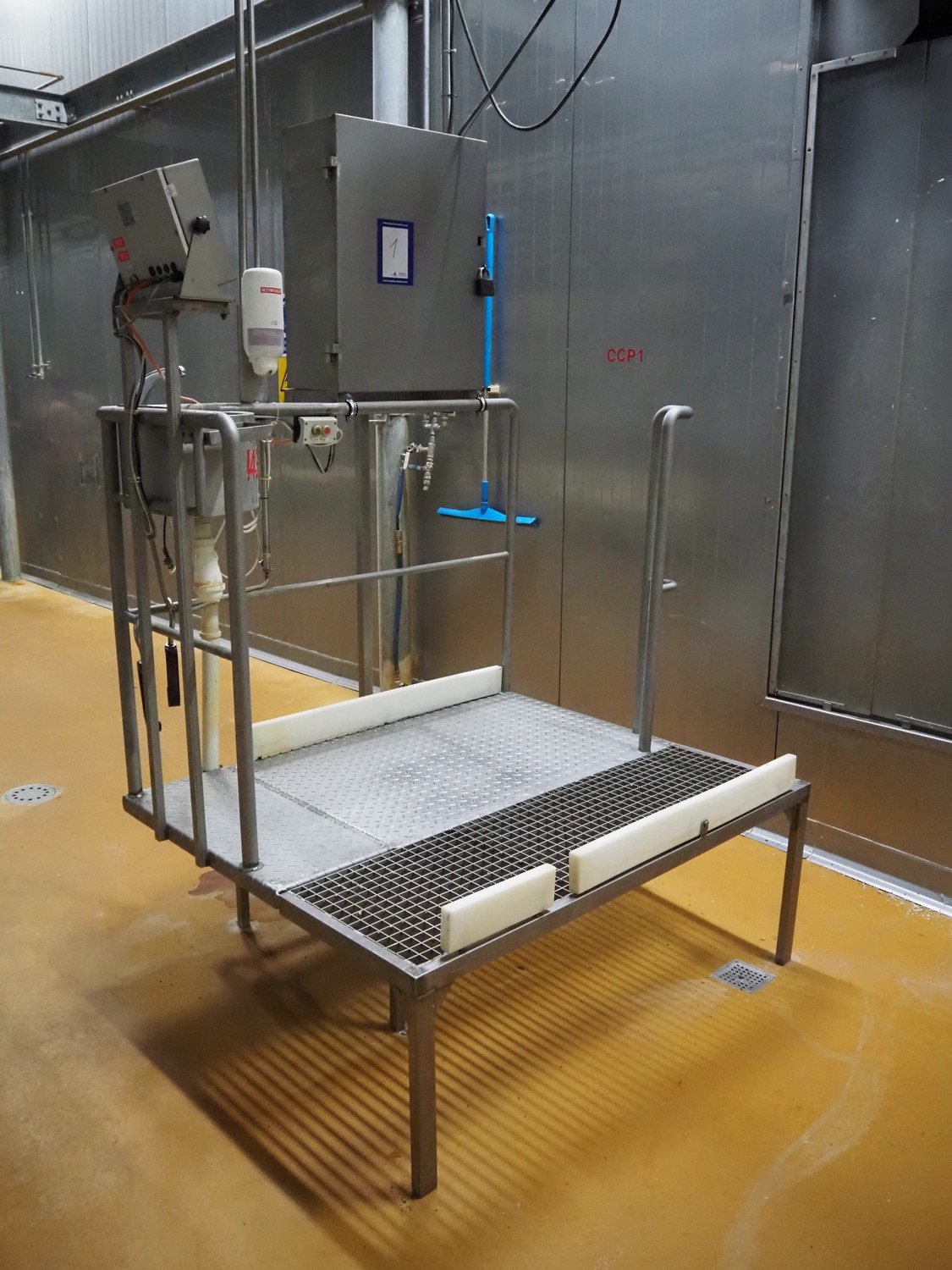

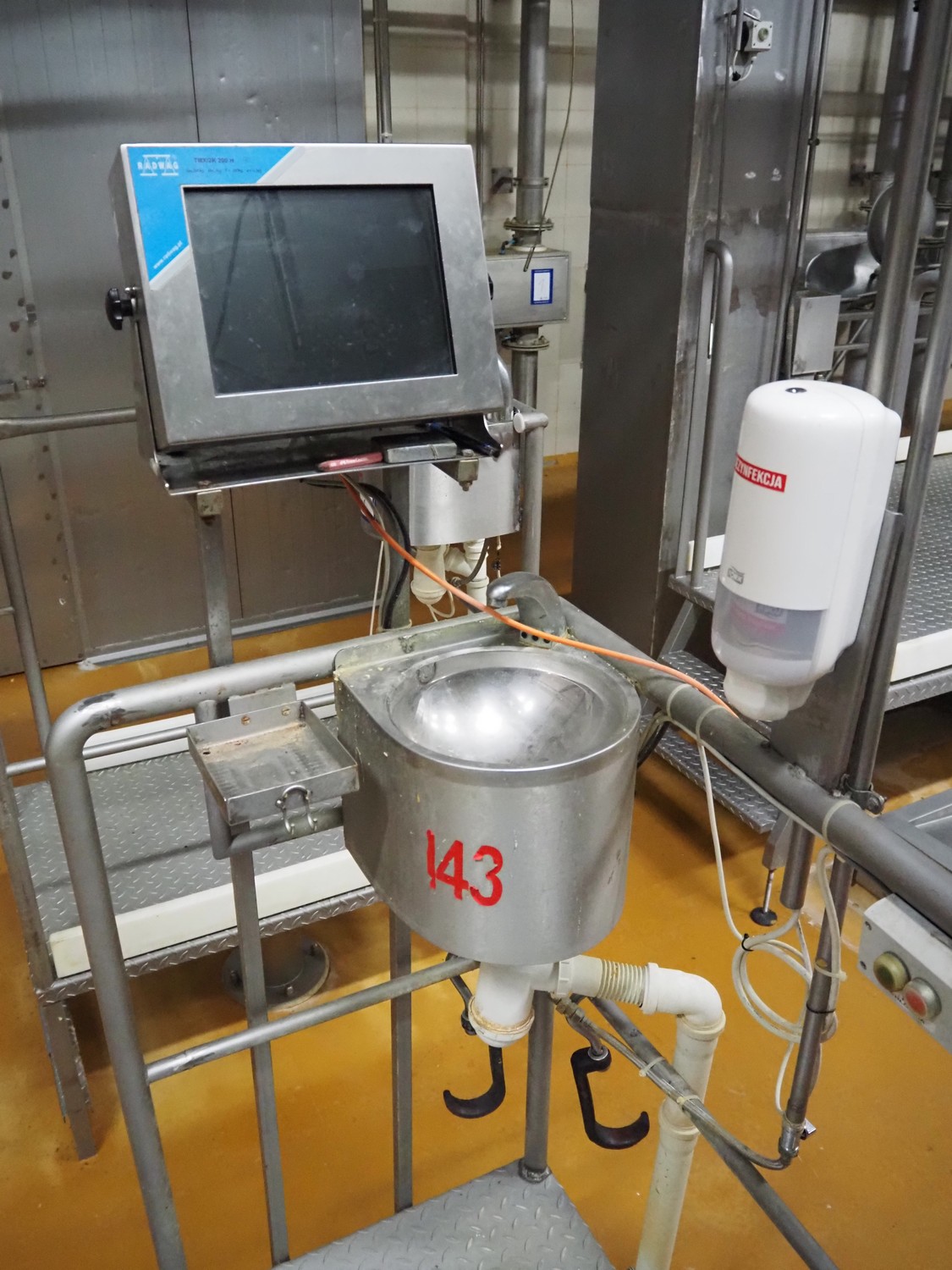

- S/s quality control platform with sink with faucet , soap dispenser and tube rail weighing scale with Radwag indicator, model: TMX/2K 200 H, maximum: 200 kg, minumum: 2 kg, T= -200 kg, e= 0.1 kg, lengt scale: 1000 mm, ø tube: 60 mm, dimensions platform: 1580 mm x 1630 mm x 2460 mm.

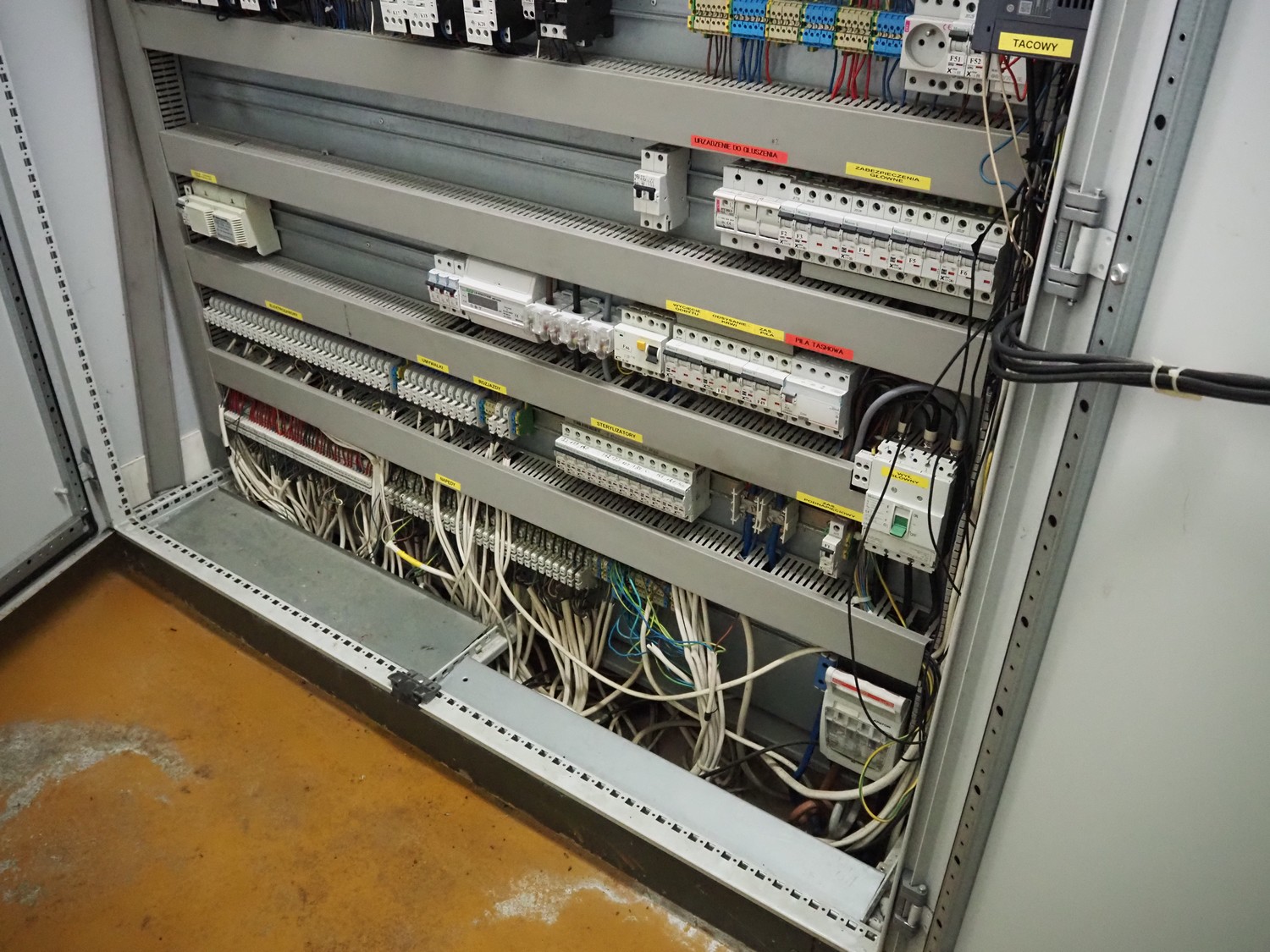

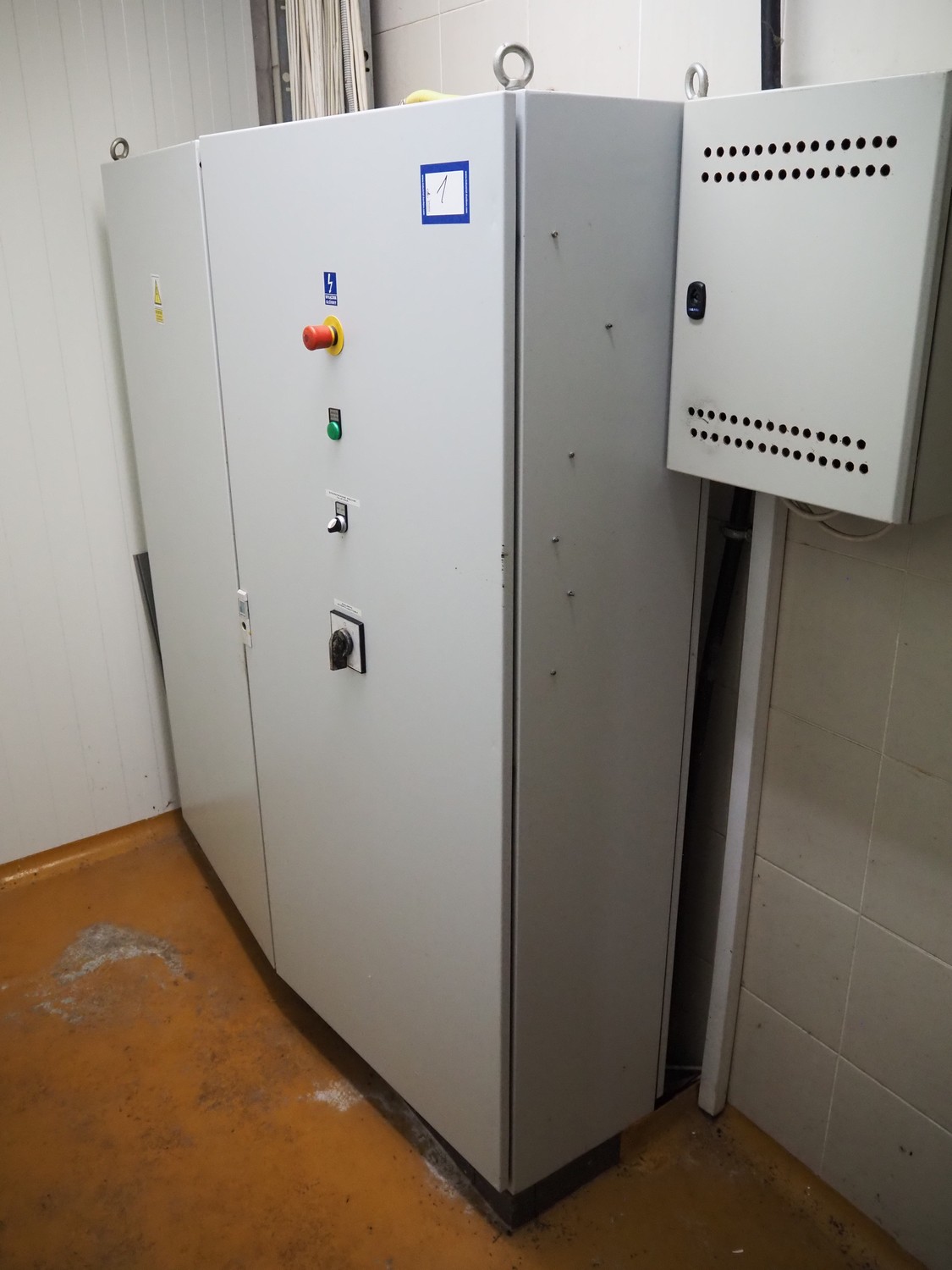

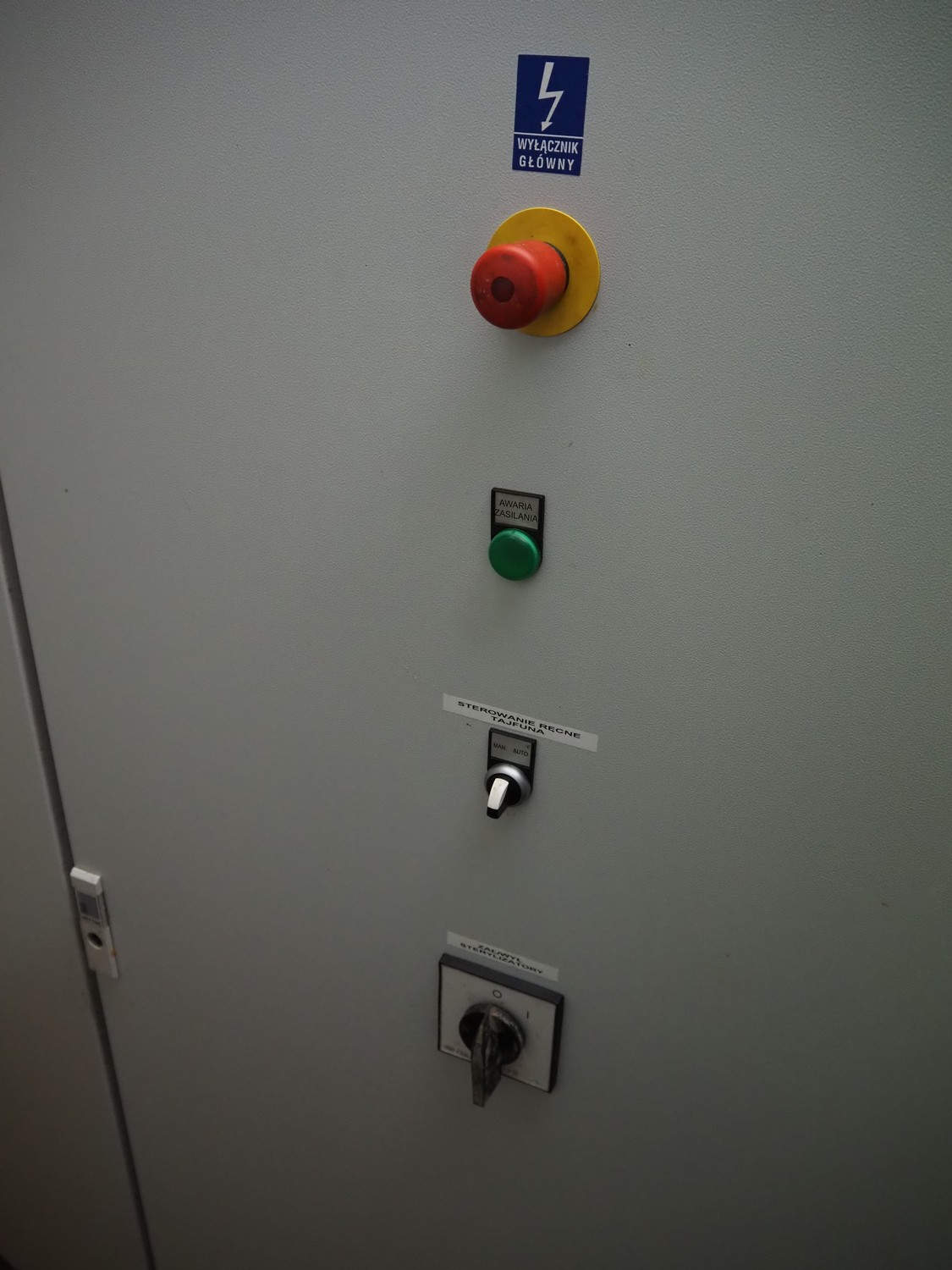

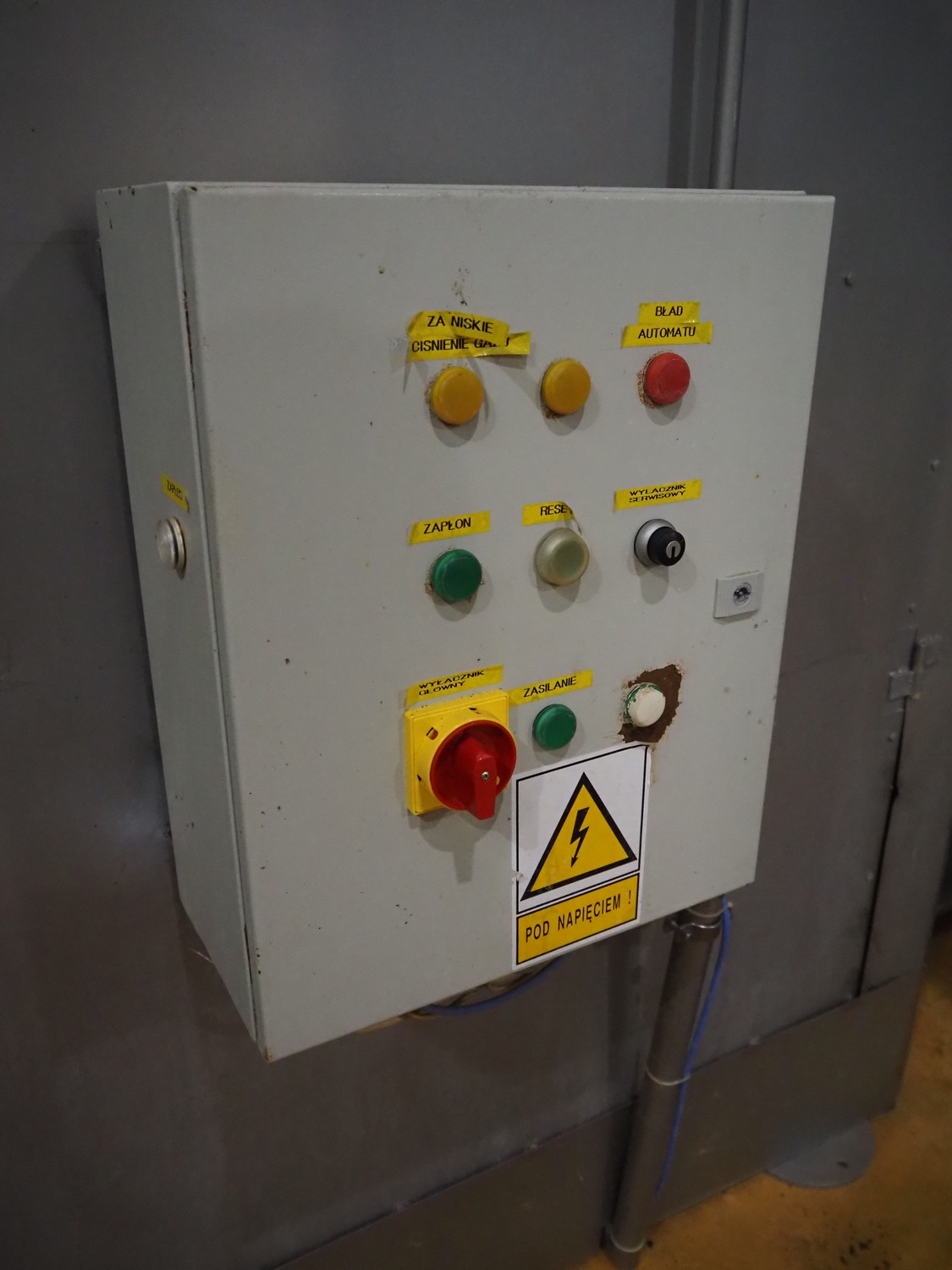

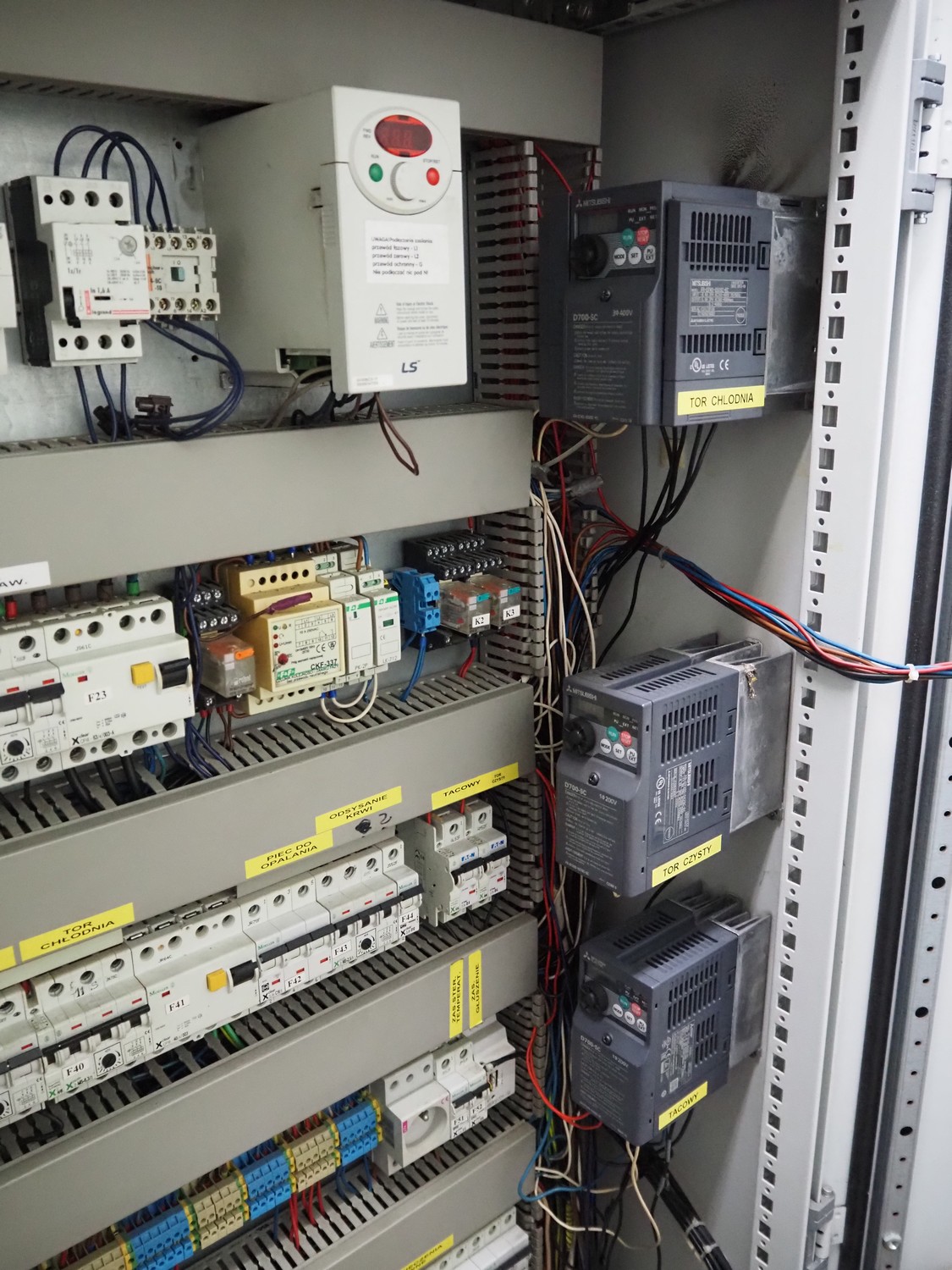

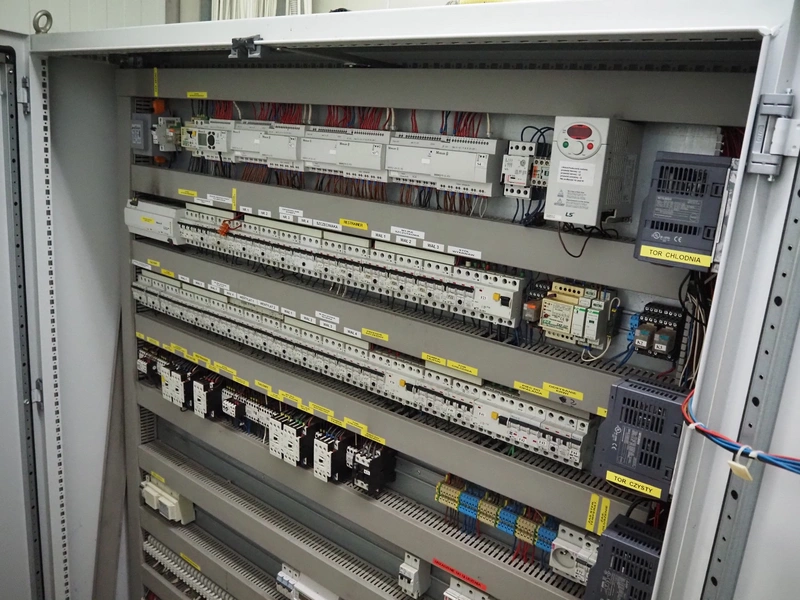

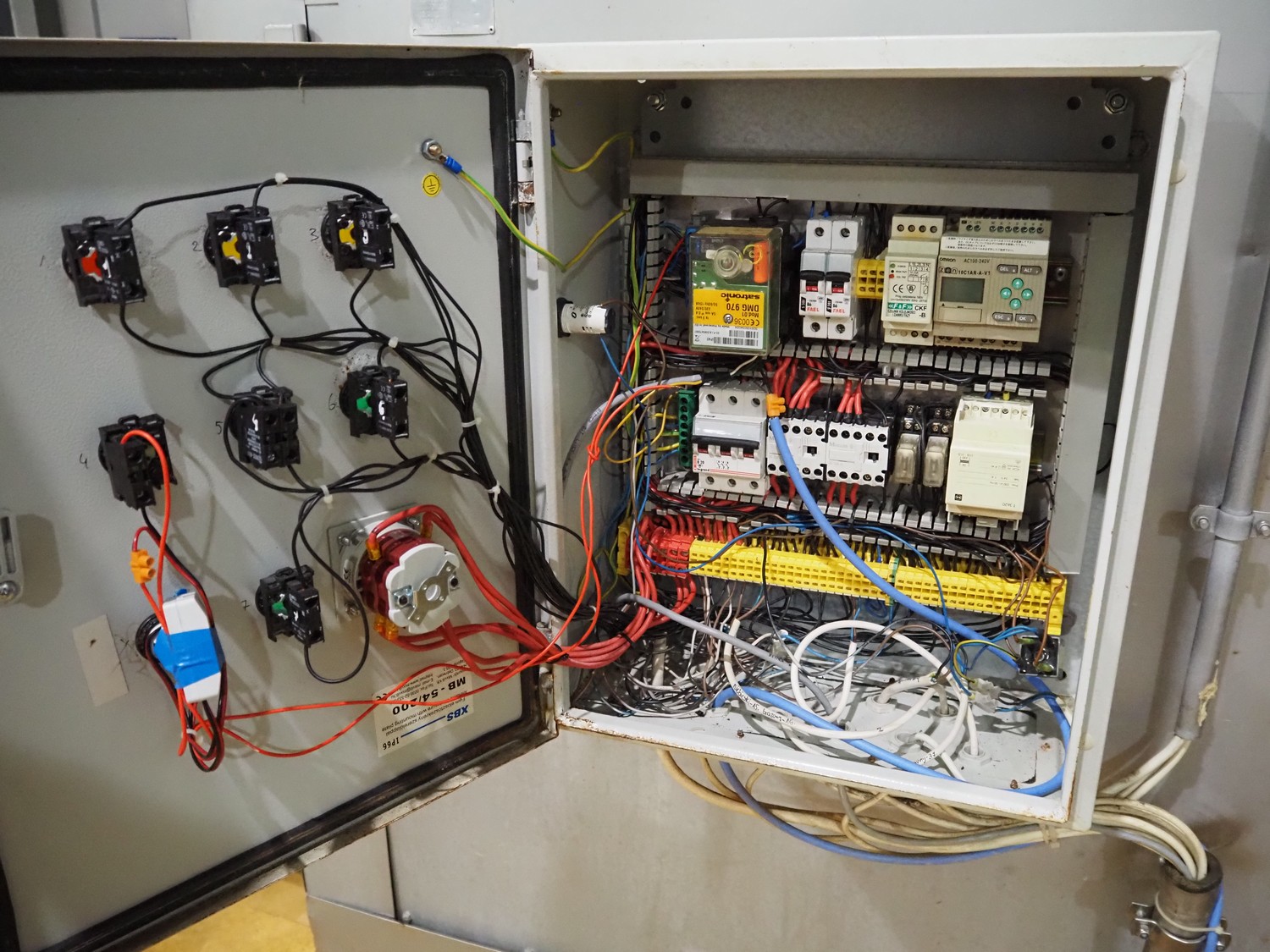

- S/s switch cabinet to control the complete line: dimensions: 1600 mm x 400 mm x 1950 mm.
EXTRA ITEMS

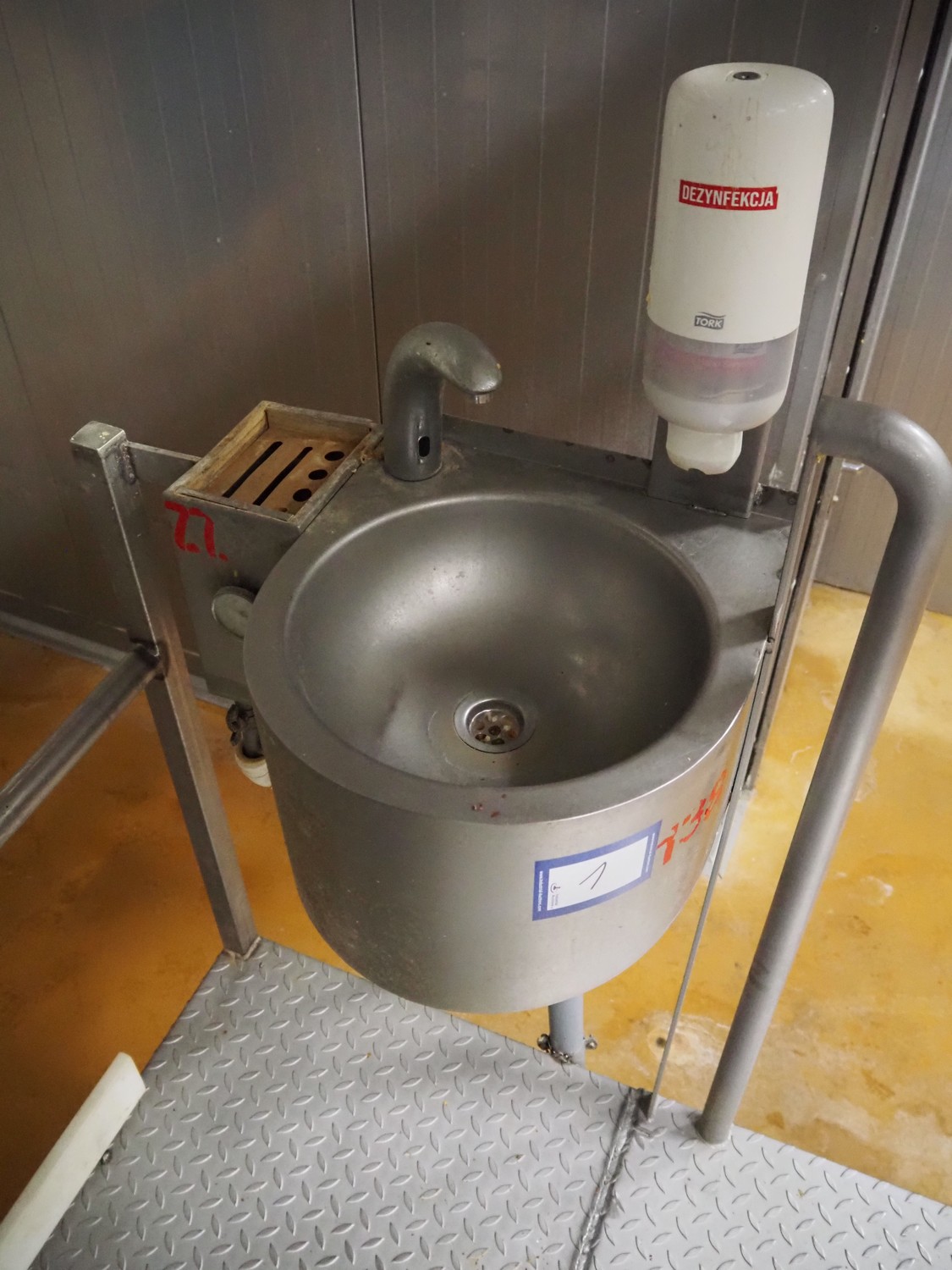

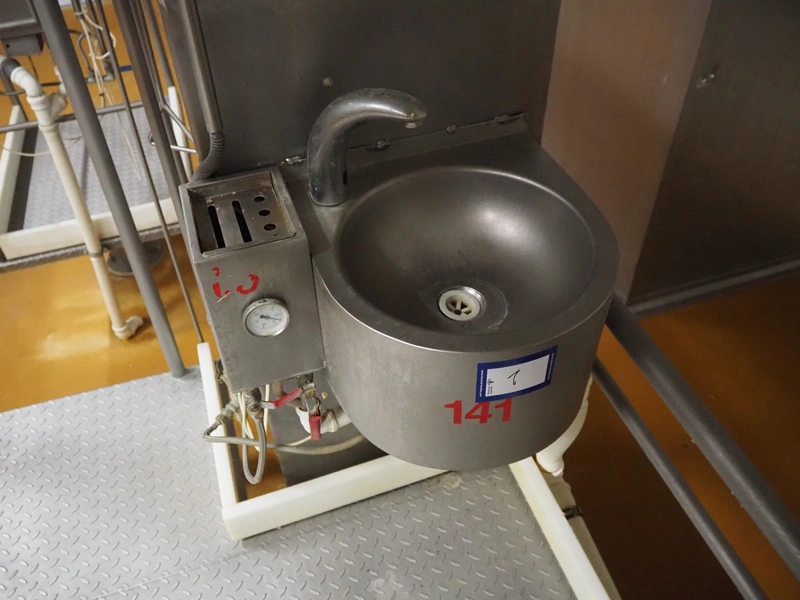

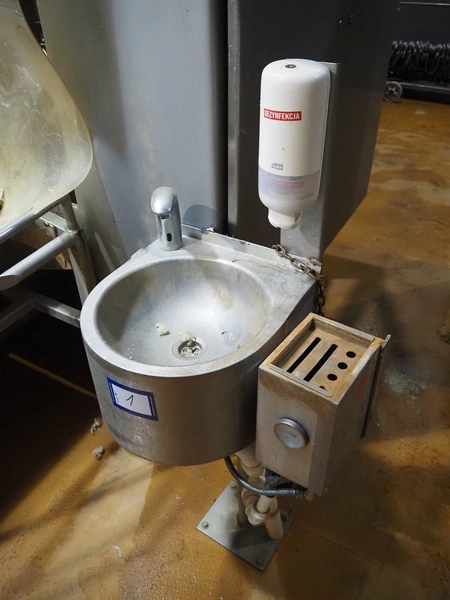

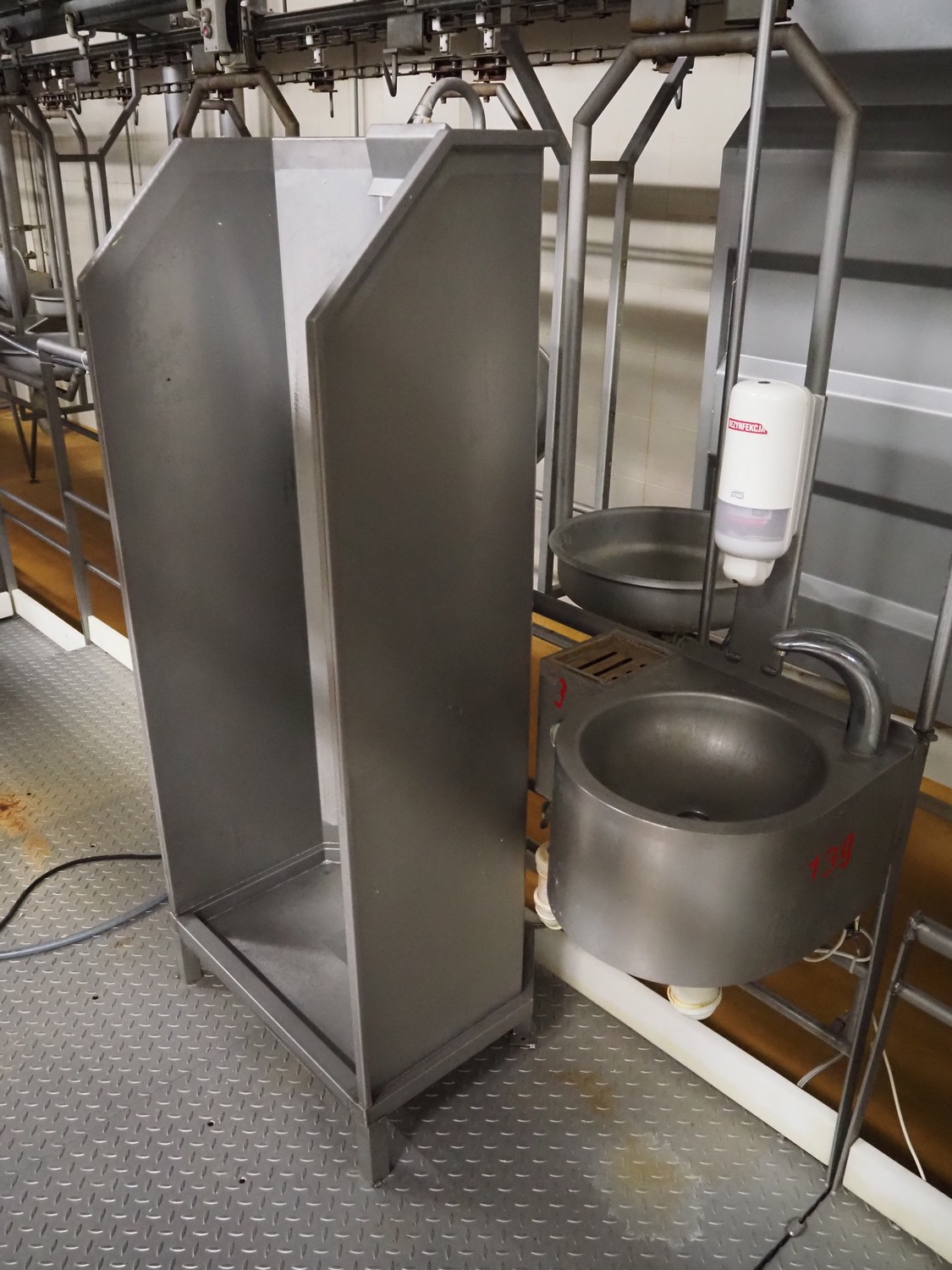

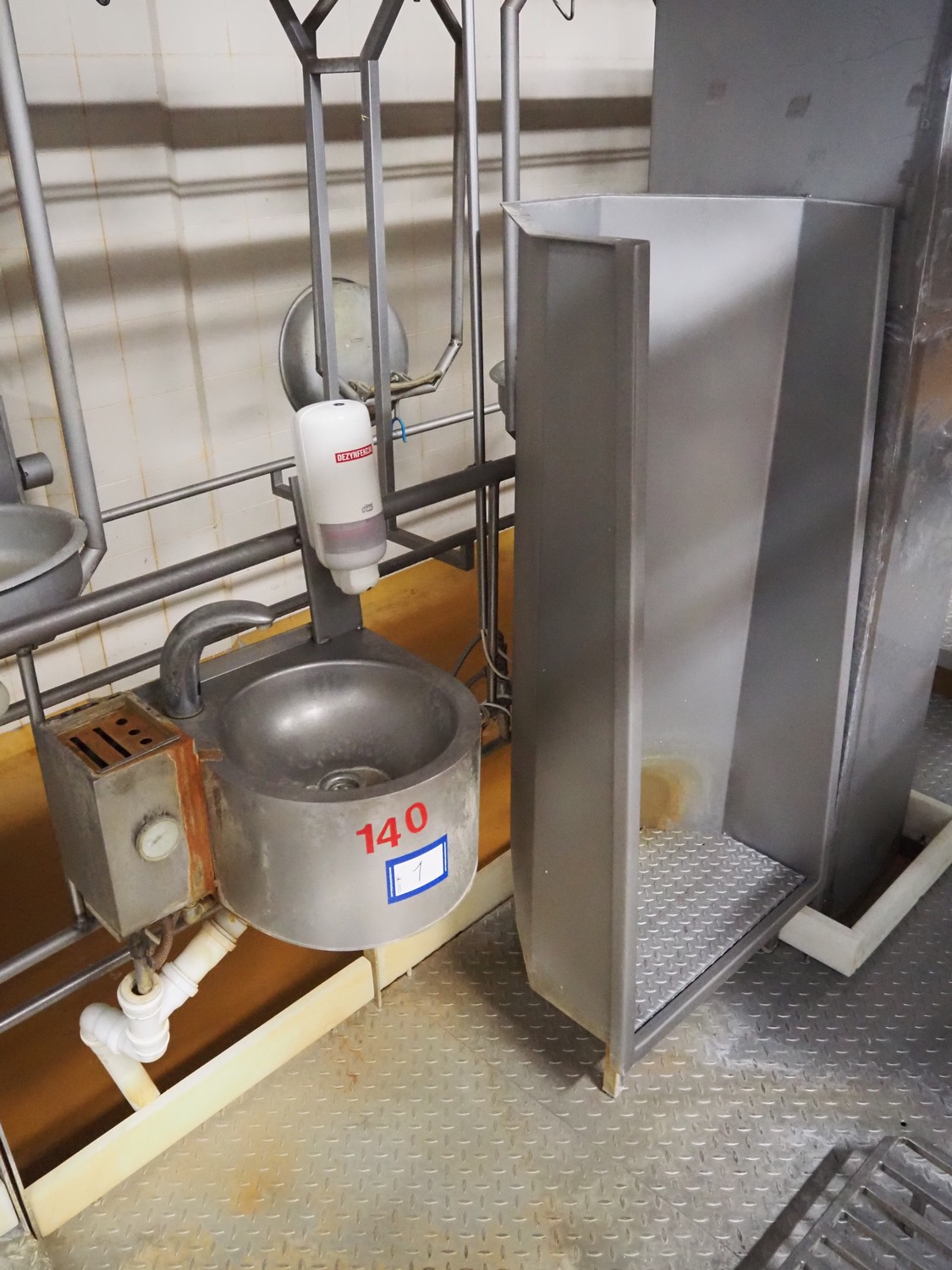

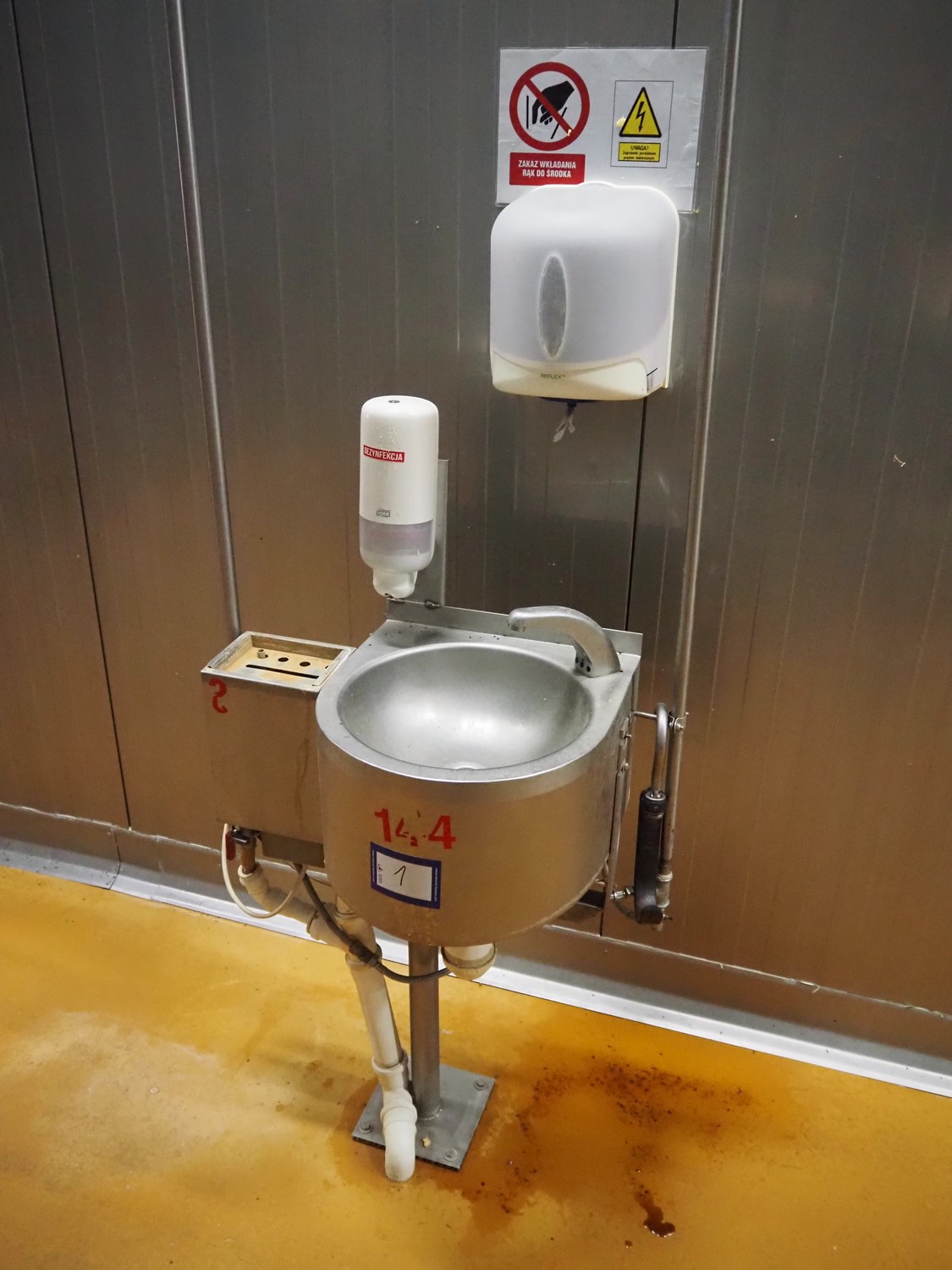

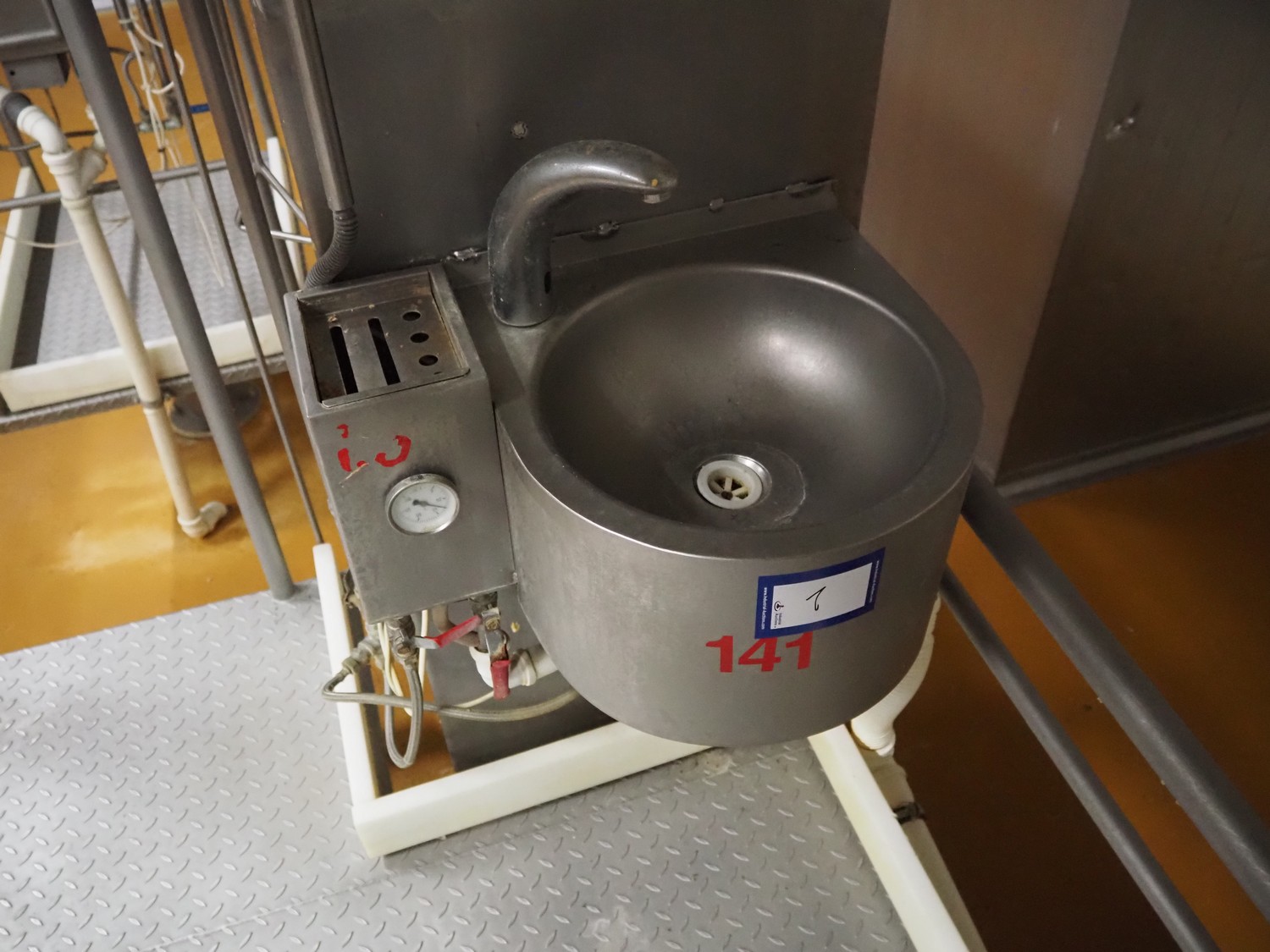

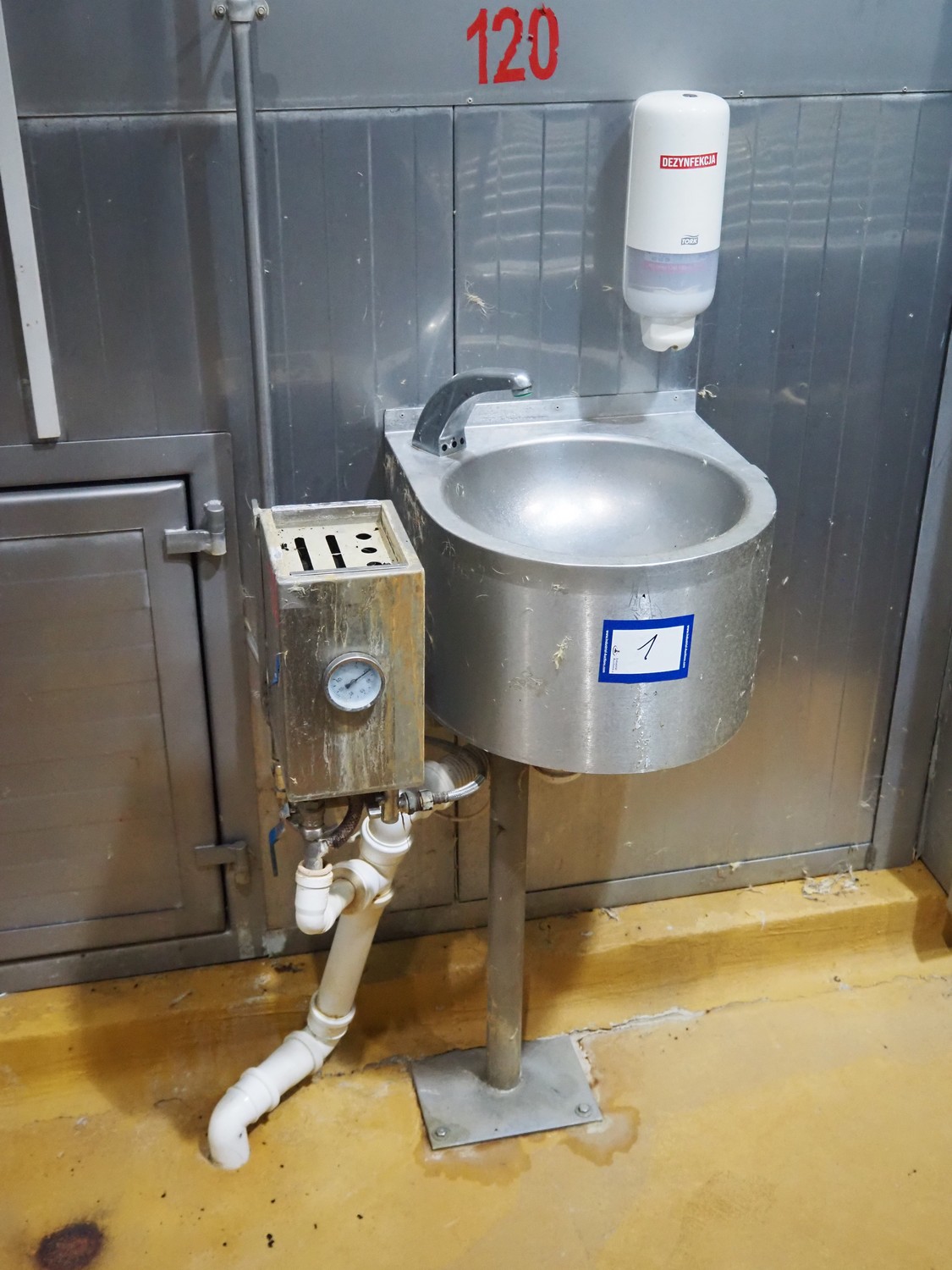

- S/s sink with faucet, paper dispenser, soap dispenser and 2 knife sterilizers.
- S/s sink with faucet, paper dispenser and soap dispenser.
- (2x) S/s sinks with faucet, soap dispenser and knife sterilizer.
- S/s sink with faucet, paper dispenser, soap dispenser and knife sterilizer.
