2132-2: Trane

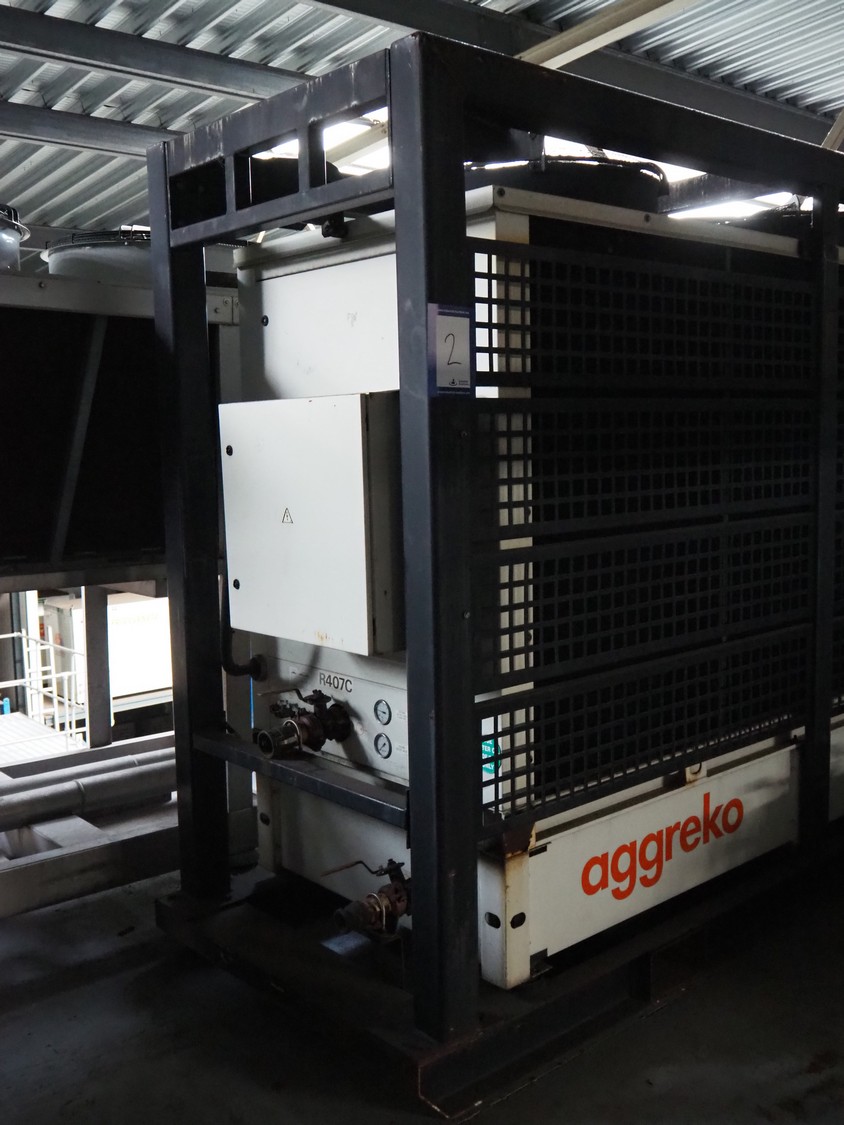

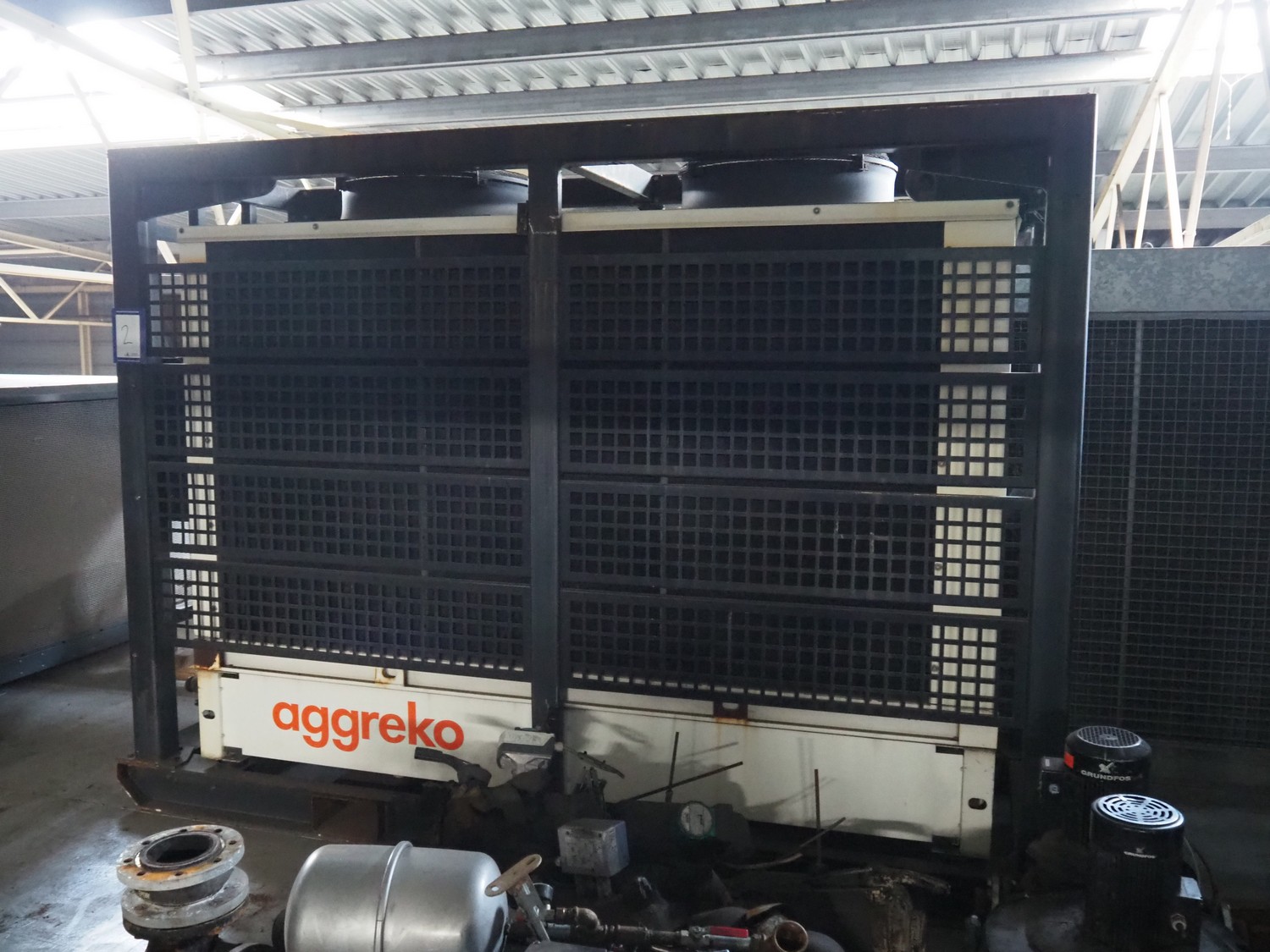

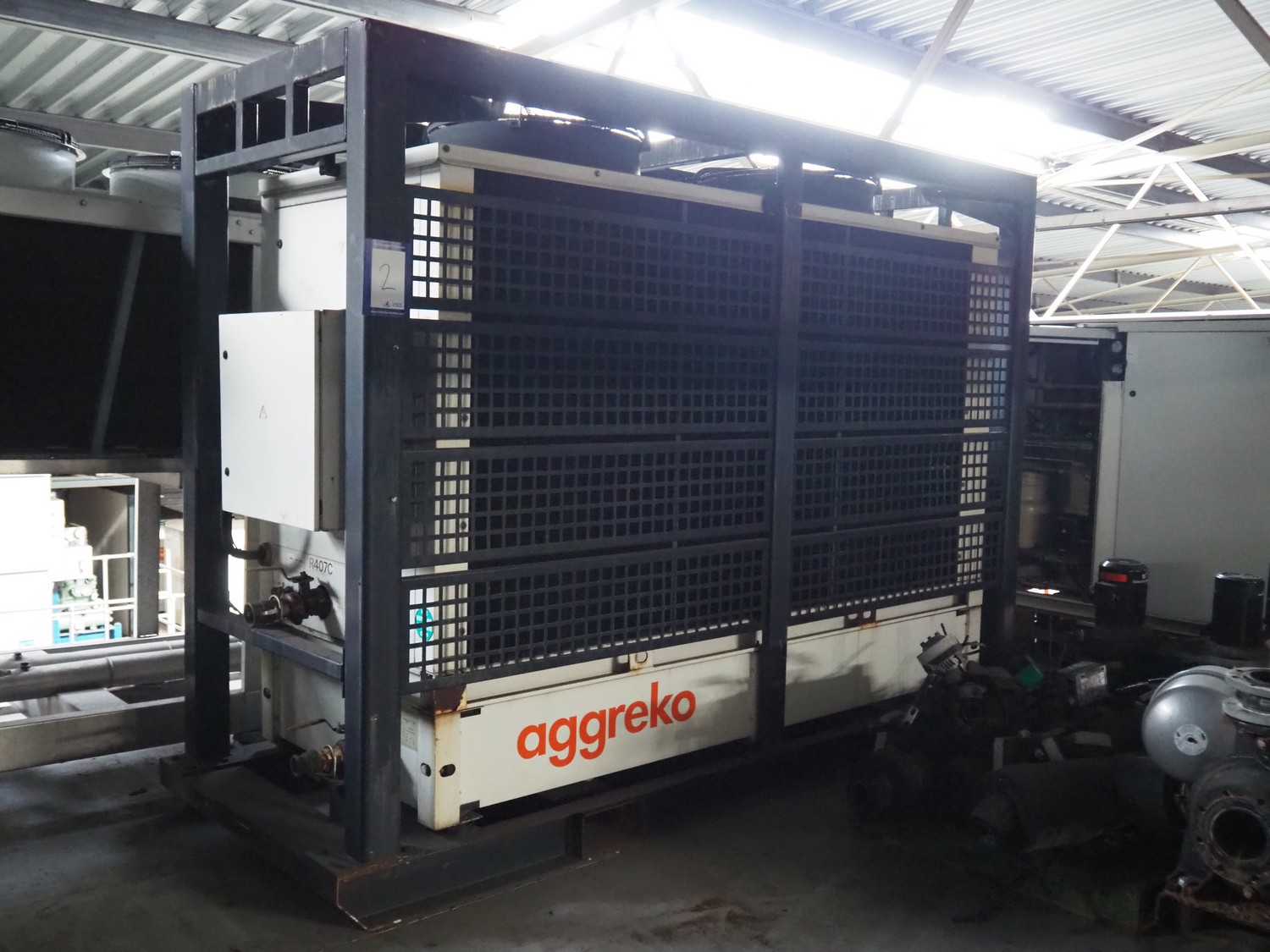

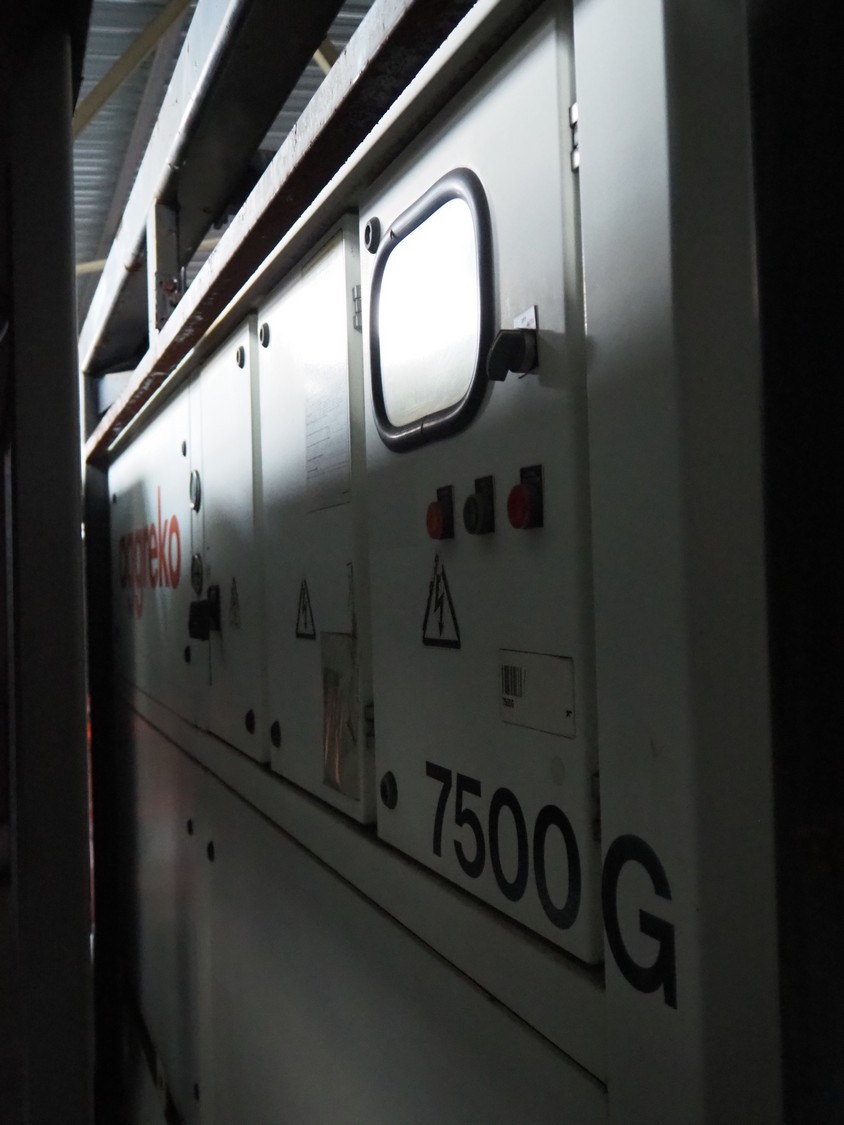

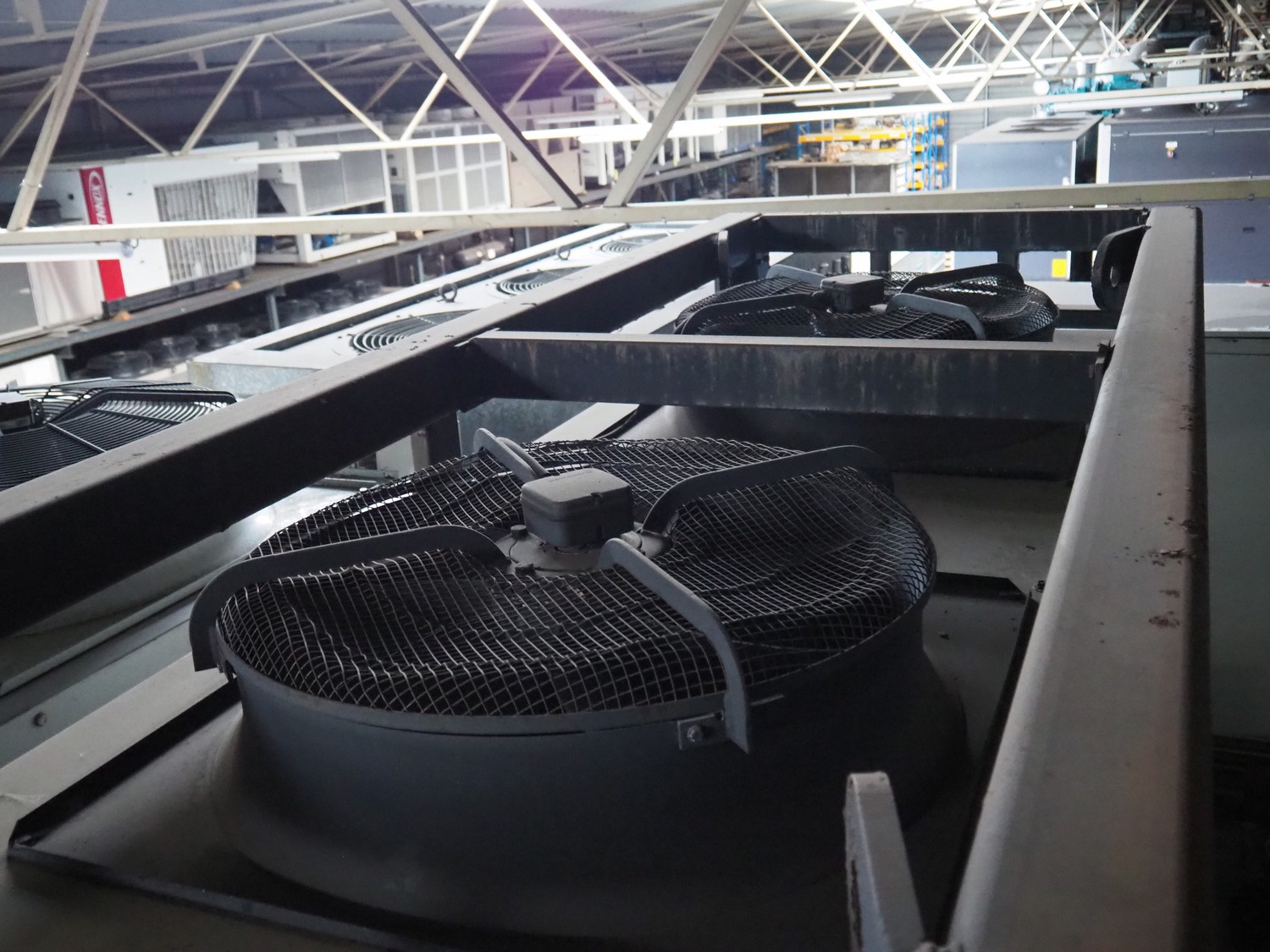

Trane air-cooled water chiller, model WCC 50. This air-cooled water chiller, which is in very good condition with low operating hours (formerly a rental unit), is equipped with the following main components:

• 2 scroll compressors (2 capacity stages)
• Plate heat exchanger/cooler with 1 cooling section
• Operating hours: approx. 3,000 h
• Built-in pump and buffer tank
• Cooling capacity: 50 kW/15 tonnes
• Number of cooling circuits: 1

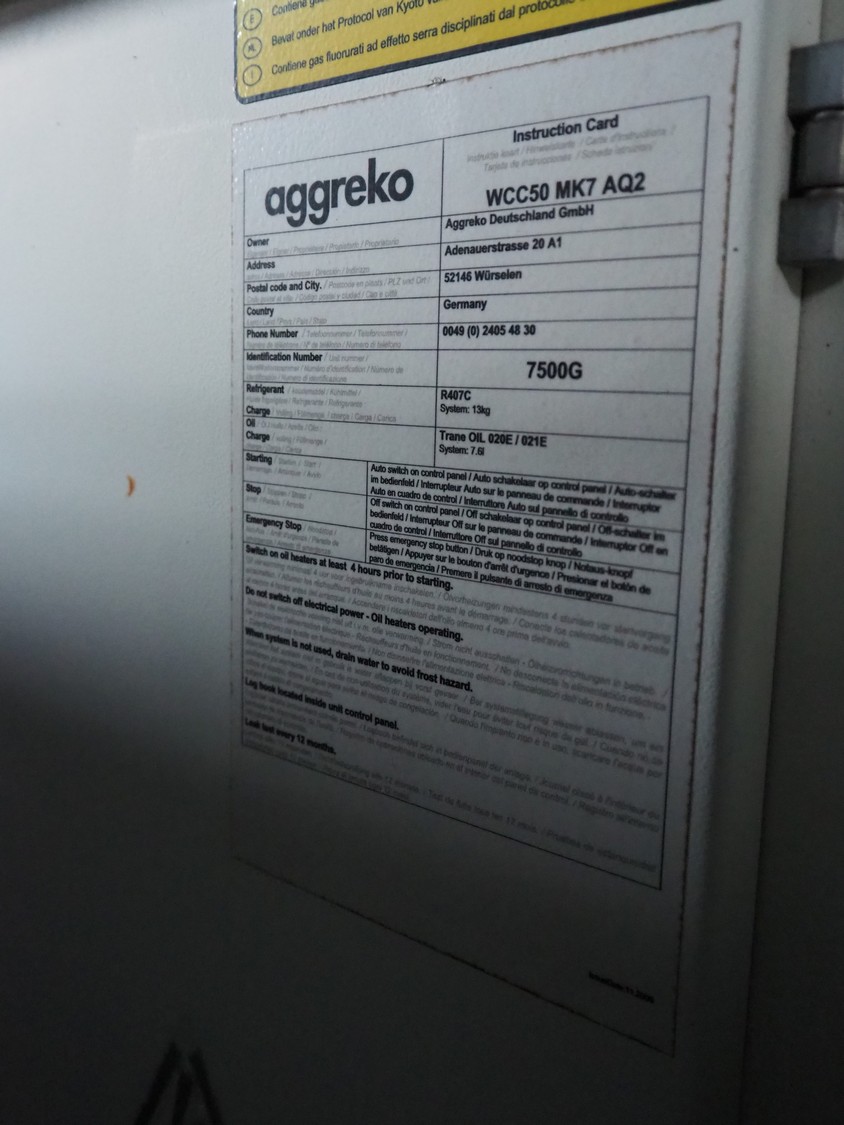

• Refrigerant type: R407C
• Refrigerant charge per circuit: 18 kg
• Nominal voltage: 400 V
• Max. current draw: 47 A
• Power consumption: 19.6 kW
• Dimensions: 3400 mm x 1230 mm x 2400 mm
• Weight: 1800 kg

The stated cooling capacity of 50 kW is based on a water flow rate of +7°C/+12°C at an ambient temperature of +35°C. Cooling capacity at a water/glycol outlet temperature of -10°C is approx. 25 kW.

Lot location: Amsterdamseweg 20, 1422 AD Uithoorn, Netherlands
